Ultra-Slim Long-Reach Tablet & Monitor Mount | Large Tilt
Features
- Long reach arm extends up to 45” with ease and smoothness
- Wall mount type for tablets or flat panels ranges from 2.2 lb to 6.6 lb ; While it's designed for standard VESA monitors, it is easily adaptable for tablet use. Please contact our team at info@cotytech.com with your tablet model and requirements to identify the best VESA tablet holder for your specific device.
(Note: When selecting a tablet holder, please ensure the combined weight of the tablet and the adapter falls within the arm's 1–3 kg load capacity for optimal gas-spring performance.) - Built-in gas pneumatic spring design for extreme ease of operation and movements
- Instantly and effortlessly float a tablet or flat screen from position to position
- Maximum adjustment is rendered by tilting, swiveling, and rotating
- Covers can be opened to put in cables (cables not included)
- Concealed cable management for neatness and secure performance
- Monitor back cable cover is included
- Sturdy construction made of aluminum alloy with outside plastic covers
- Easy installation and disinstallation
- Color: White
 |

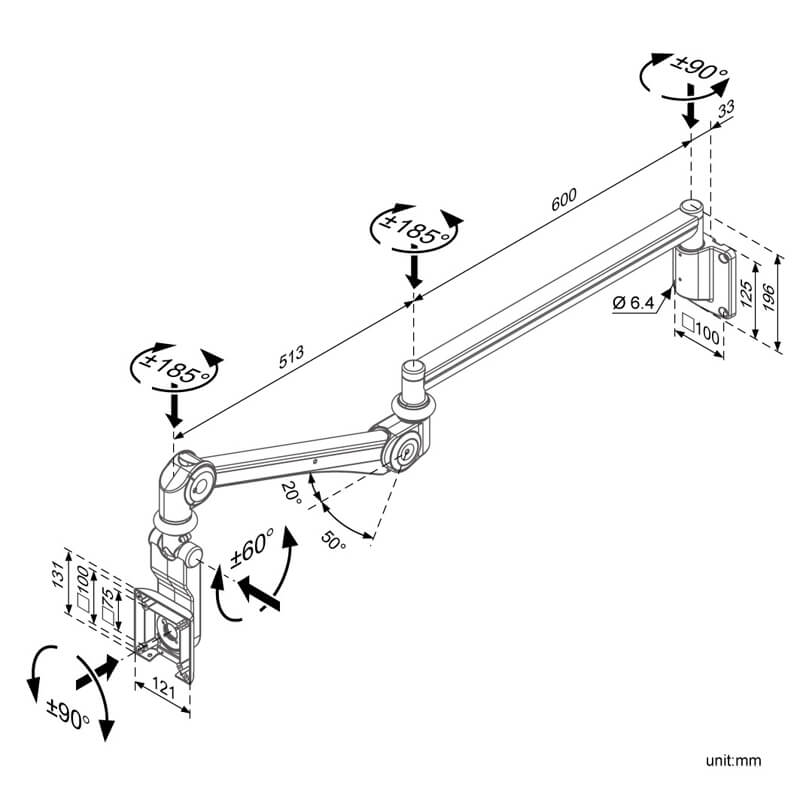

Weight Capacity: | Supports 2.2 - 6.6 lb (1 - 3 kg) |
 |
Tilt: | 60° / - 60° (display) & 20° / - 50° (arm) |
 |
Maximum extension: | 45" (114.6cm) |
 |
Rotation: | 370° (arm); 370° (display); 180° (wall); 90° (Screen) |
 |
Mounting Pattern: | VESA compliant: 75x75 to 100x100; Optional 200x200 |
Mounting Pattern
You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise, you can measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your LCD is different, and we are happy to help you out!
Product Description
Our new Ultra-Slim Long-Reach Tablet & Monitor Mount | Large Tilt features a built-in gas-pneumatic spring design for smooth, easy movement, allowing the tablet or LCD monitor to float from position to position. This Tablet & LCD wall mount provides a maximum of 45” (114.6cm) straight extension. The articulating arm is a perfect solution if you need to float your tablet or LCD monitor around or above in settings like patient bedsides, dentist offices, hospital rooms, workstations, manufacturing equipment, and assembly lines. The wall mount solution can be rotated 370° at the arm, 370° at the screen end, and 180° at the wall connection for optimal viewing angles. When not in use, the unit can be folded up and out of the way, an excellent space-saving feature for any room. This simple, contemporary-looking, durable arm is made of aluminum alloy with a plastic cover. Its ergonomic, space-saving attributes and modern look make the Tablet & LCD wall mount a practical choice in businesses, offices, doctors’ offices, clinics, dental operatories, hospitals, and factories. Please note that the monitor is not included.
Comparison Chart
|
|
Ceiling | Wall | Capacity | Keyboard Holder | Monitor Back Cable Cover |
|
| MW-M123PN |
|
|
|
|
||
| MW-M23PKN |
|
|
|
|
||
| MW-M123WBN |
|
|
|
|
| |
| MW-M23WBKN |
|
|
|
|
| |
| MW-M125PN |
|
|
|
|
||
| MW-M25PKN |
|
|
|
|
||
| MW-M125WBN |
|
|
|
| ||
| MW-M25WBKN |
|
|
|
|
| |
| MW-M16P |
|
|
|
|
||
| CM-M123N |
|
|
|
|
| |
| CM-M23KN |
|
|
|
|
| |
| CM-M125N |
|
|
|
|
| |
| CM-M25KN |
|
|
|
|
|
Notes: MW-M16P is vertically adjustable.
Video (shows in the sequence of cantilever wall mount with a wall box, with wall plate, ceiling mounts, A-Frame wall mounts)
