Features
![]() |
Weight Capacity: | Supports 13.2 - 26.4 lb (6 - 12 kg) |
![]() |

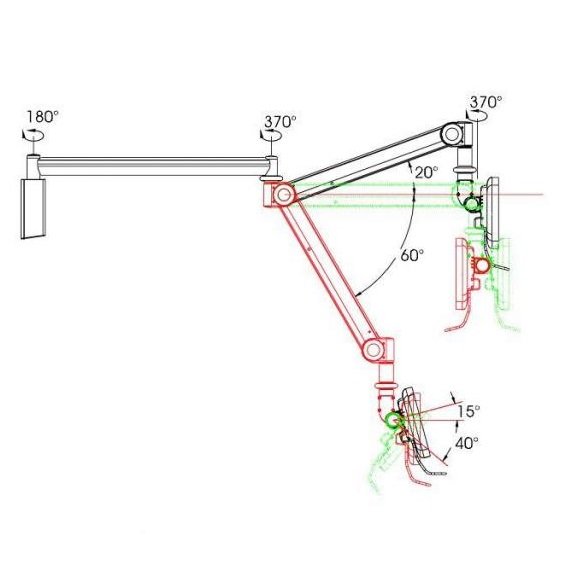

Tilt: | 15° / - 40° (display) & 20° / - 60° (arm) |
![]() |
Maximum extension: | 72" (182.5cm) |
![]() |
Rotation: | 370° (arm); 370° (display); 180° (wall) |
![]() |
Mounting Pattern: | VESA compliant: 75x75 to 100x100; Optional 200x200 |
Mounting Pattern
You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise, you can measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your LCD is different, and we are delighted to help you out!
Product Description

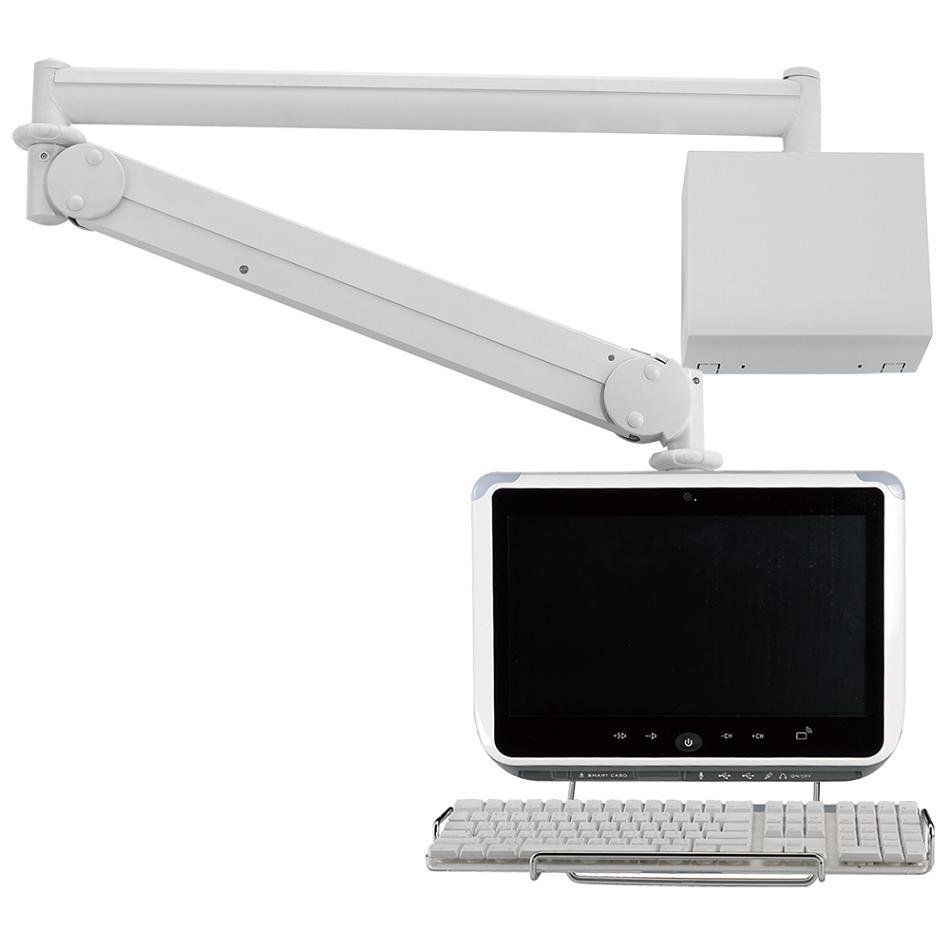

Our new Monitor Arm - Long Reach w/ Keyboard Holder MW-M25WBKN features built-in gas pneumatic spring design for easy and smooth movements, allowing instant floating of LCD monitor from position to position. This LCD wall mount provides a maximum of 72” (182.5cm) straight extension. The articulating arm is a perfect solution if you need to float your LCD monitor around or above settings like workstation, manufacturing equipment, assembly line, etc. The wall mount solution can be rotated 370° at the arm, 370° at monitor end, and 180° at the wall connection for optimal viewing angles. When not in use, the unit can be folded up and out of the way, an excellent space-saving feature for any room. Handle design facilitates smooth operation and movement. This simple and contemporary looking durable arm is made of aluminum alloy with plastic cover outside. Its ergonomic, space-saving attributes, and contemporary look make the LCD wall mount a practical choice in businesses, offices, doctors’ offices, clinics, dental operatories, hospitals, and factories. Please note that the monitor is not included.

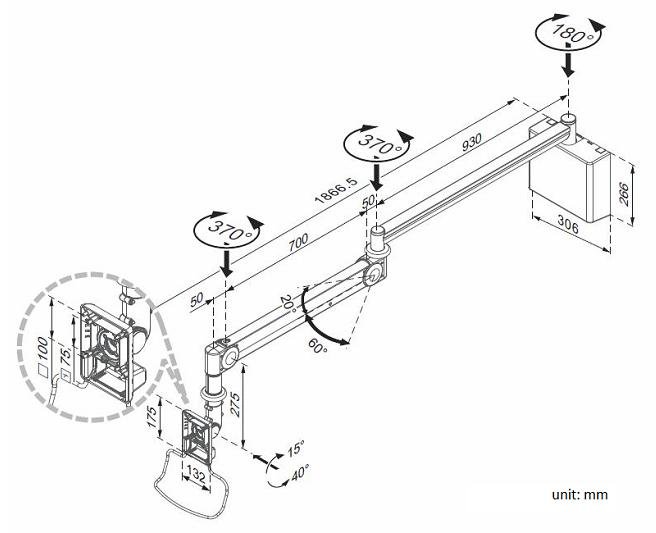

Dimensions
Comparison Chart
|
Ceiling | Wall | Capacity | Keyboard Holder | Monitor Back Cable Cover |
|
MW-M123PN |
|
|
|
|
||
MW-M23PKN |
|
|
|
|
||
MW-M123WBN |
|
|
|
|
| |
MW-M23WBKN |
|
|
|
|
| |
MW-M125PN |
|
|
|
|
||
MW-M25PKN |
|
|
|
|
||
MW-M125WBN |
|
|
|
| ||
MW-M25WBKN |
|
|
|
|
| |
MW-M16P |
|
|
|
|
||
CM-M123N |
|
|
|
|
| |
CM-M23KN |
|
|
|
|
| |
CM-M125N |
|
|
|
|
| |
CM-M25KN |
|
|
|
|
|
Notes: MW-M16P is vertically adjustable.
Video (shows in the sequence of cantilever wall mount with a wall box, with wall plate; ceiling mounts; A-Frame wall mounts)
