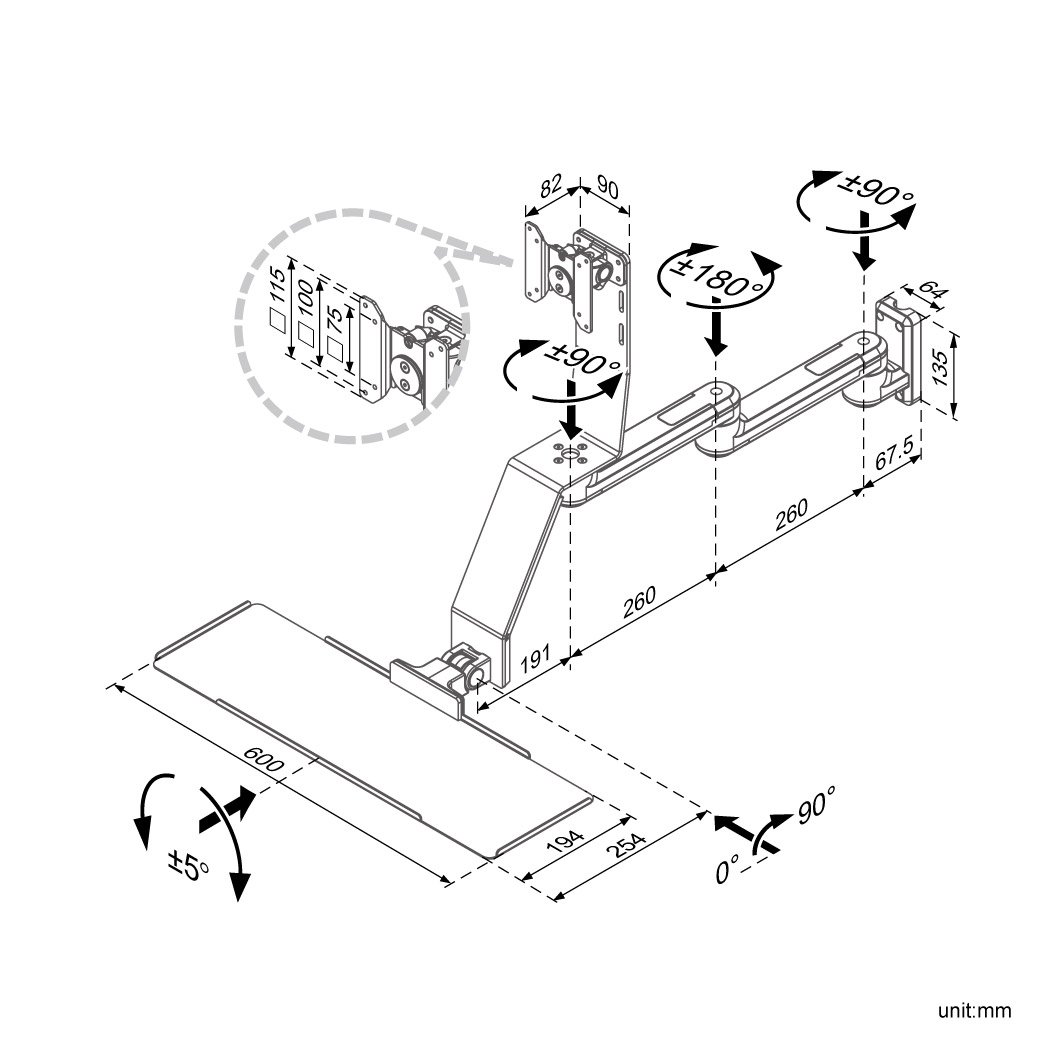

|Weight Capacity:||Supports up to 33.1 lb (15 kg)|
|Tilt:||unlimited until comes across obstacles / - 10° (display); 90° / 0° (keyboard)|
|Maximum extension:||38.3" (97.4cm) (from wall to front end of keyboard tray); More extension is possible by adding extension arm, each is 10.23" long|
|Rotation:||5° / - 5°(keyboard)|
|Mounting Pattern:||VESA compliant: 75x75 to 100x100; Optional 200x200|
|Swivel:||Max 180° where two arms are connected / Max 90° at two connection points: arm to wall / arm to front monitor and keyboard|
You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your LCD is different and we are very glad to help you out!

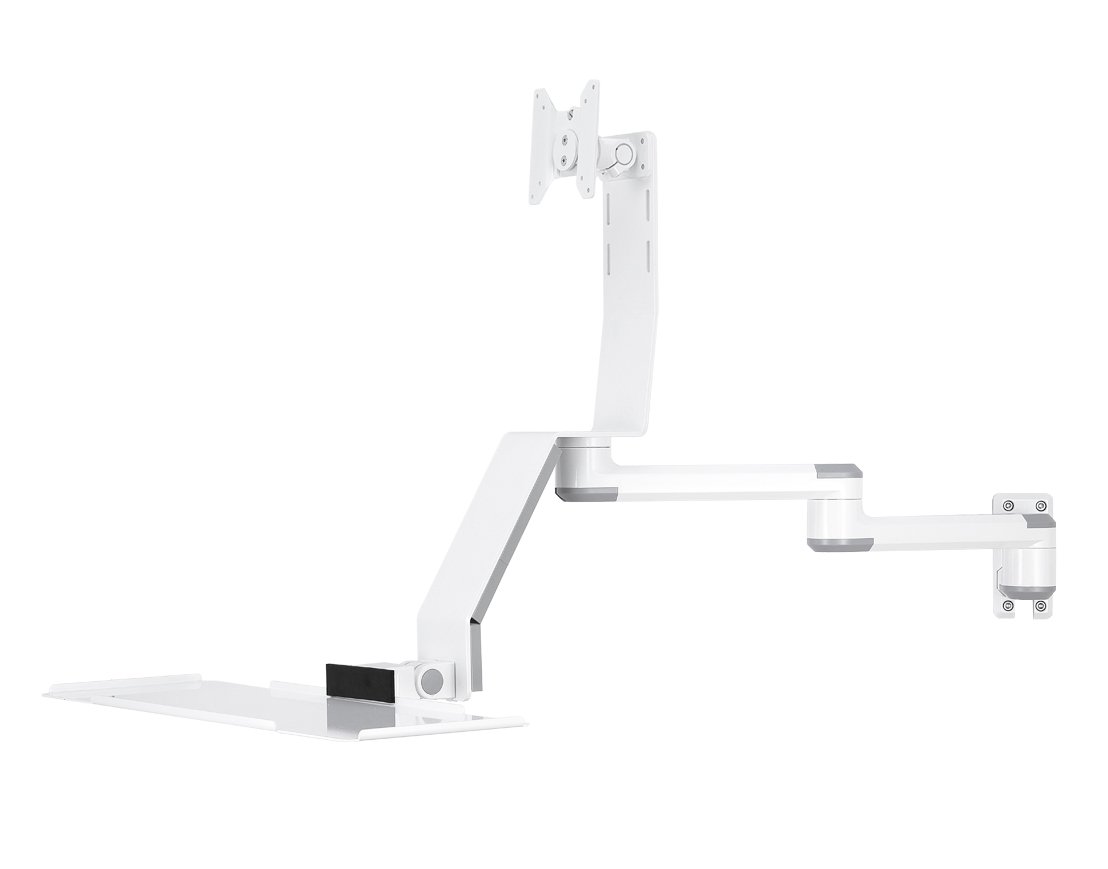

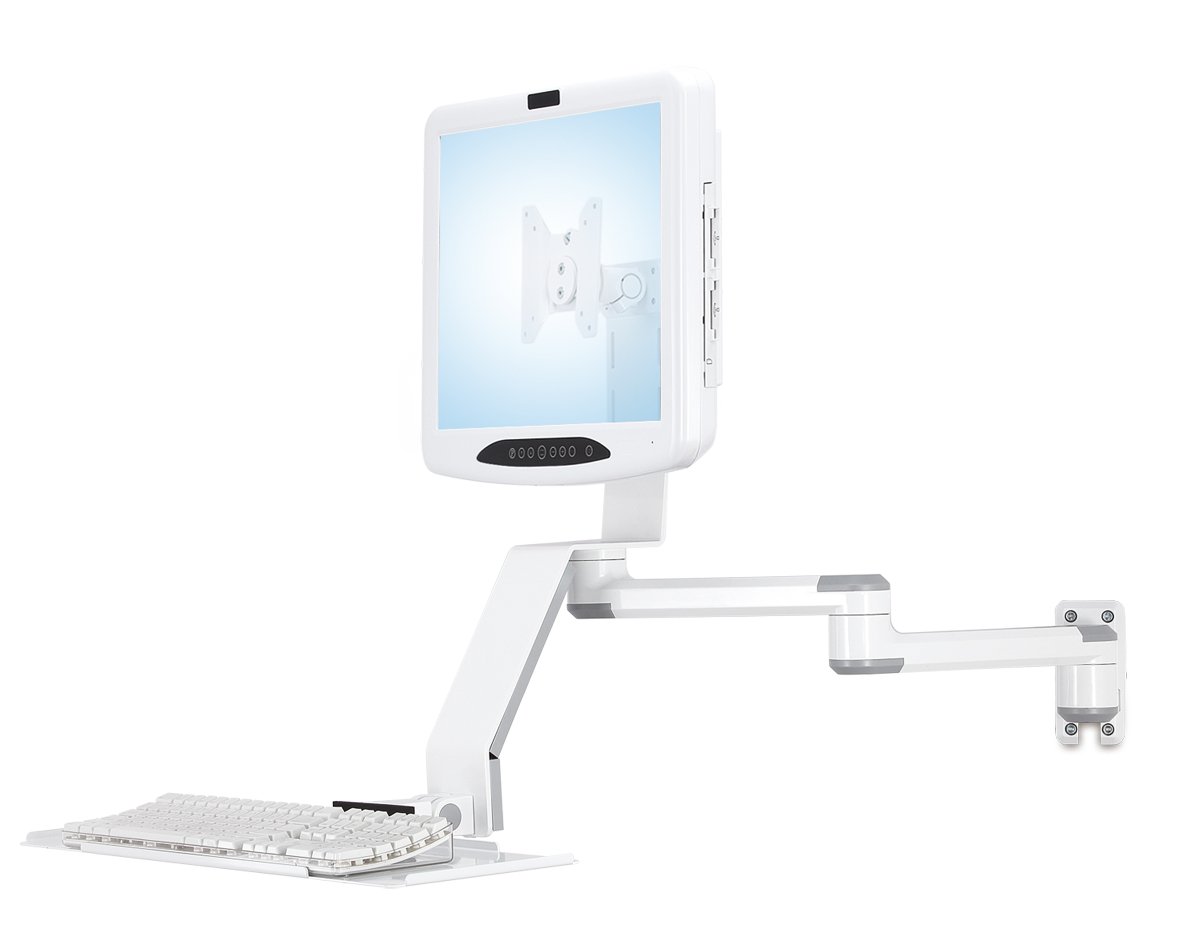

Our new Wall Mount w/ Laterally Adjusting Monitor Arm & Keyboard Tray is an adjustable computer workstation moves into reach with ergonomic, lateral adjustment. Two swivel points on the adjustable arm deliver maximum flexibility for a workspace. It provides maximum of 38.3” (97.4cm) straight extension, measured from wall to the front end of keyboard tray. The wall mount solution can be swiveled 180° and 90° at three joints for optimal viewing angles and patient visibility or privacy. When not in use, keyboard can be folded up and be out of the way, an excellent space-saving feature for any room. This simple and contemporary looking durable arm is made of aluminum alloy with plastic cover outside. Its ergonomic, space saving attributes and contemporary look make the workstation a practical choice in businesses, office, doctors’ office, clinics, dental operatories, hospitals and factories. Please note that monitor and keyboard are not included.
