VESA Wall Mount w/ Spring Arm & Quick Connect

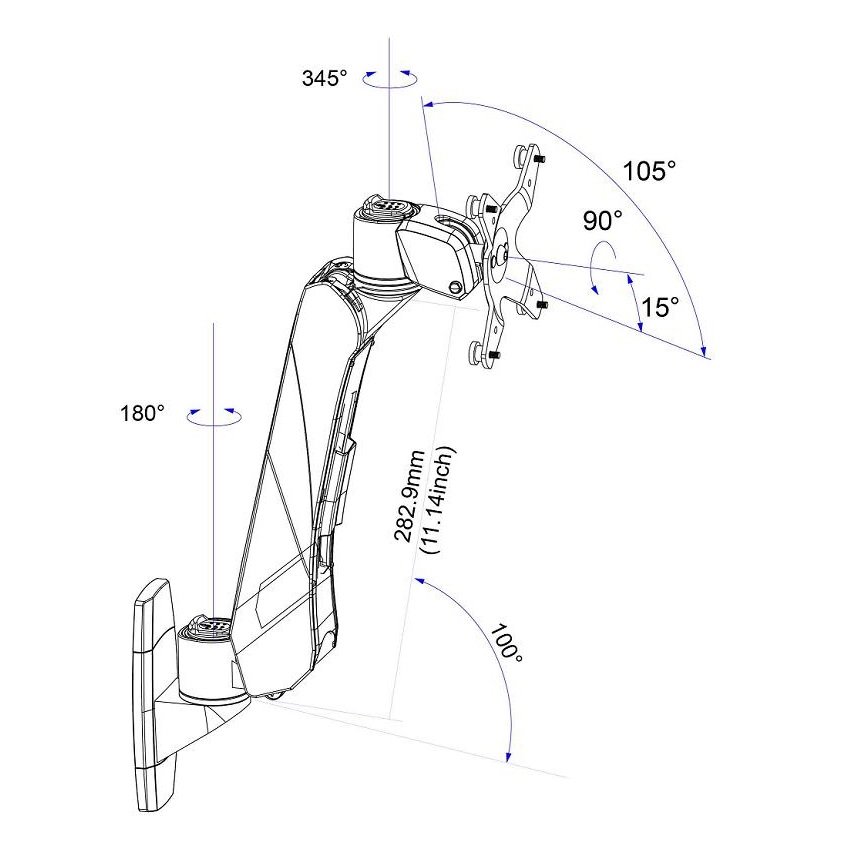

Specifications
 |
Weight Capacity: | Supports 4.4 - 19.8lbs (2 - 9kgs) |
 |
Tilt: | +90° / -15° |
 |
Rotation: | 345° |
 |
Swivel: | Max 180° |
 |
Mounting Pattern: | VESA compliant: 75x75 and 100x100 |
 |
Maximum extension: | 11.14" (282.9mm) |
 |
Mounts on Studs: | Single-stud |
Features
- Wall mount type.
- Wall plate dimensions: 5-3/4" (L); 1-7/8" (W, narrowest part); 2.5" (W, widest part); 3/8" (D)
- Quick mount & quick release designs at two connecting points: spring arm and monitor end.
- Maximum adjustment rendered by tilting, swiveling, pivoting, and dynamic height adjustment.
- Swift and easy movements and adjustments
- 10.6" Height adjustment
- Solid Aluminum die-cast construction
- Space-saving with its compact design
- Smooth extension (11.14") to achieve ideal viewing angles
- Clean look with minimal hardware visible from underside of work surface
- Rotation 345° and side-to-side pivot
- May be used to support a laptop by using the Mountable Laptop Tray
- Neat and efficient cable management
- Maximum productivity and supreme ergonomic comfort
- Easy installation and dis-installation.
Product Description
VESA Wall Mount w/ Spring Arm & Quick Connect integrates fashion with function, delivering ergonomic performance with style. With a weight capacity of 19.8lbs, this wall mount features 345-degree monitor rotation, 105-degree tilt, 180-degree swivel, and 10.6-inch vertical distance height adjustments. The wall arm is designed with cable management to provide neat space. The monitor mount is ideal for classrooms, offices, homes, public area, industrial settings, production line, and many more. This LCD wall mount renders maneuverability, flexibility, and a chic look that is sure to flatter your monitor. The single monitor mount boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The Cotytech monitor arm has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of monitor mounts.
Downloads
Installation Manual These downloads require Adobe Reader. To get Adobe Reader to click here.
Video
