|Weight Capacity:||Supports up to 10kgs (22lbs) for each monitor|
|Maximum extension:||20.2" (513mm)|
|Mounting profile:||4.3" (109.2mm)|
|Tilt:||30° / - 30°|
|Rotation:||360° (portrait or landscape)|
|Mounting Pattern:||VESA compliant: 75x75 and 100x100|
|Mounts on Studs:||Double-stud|

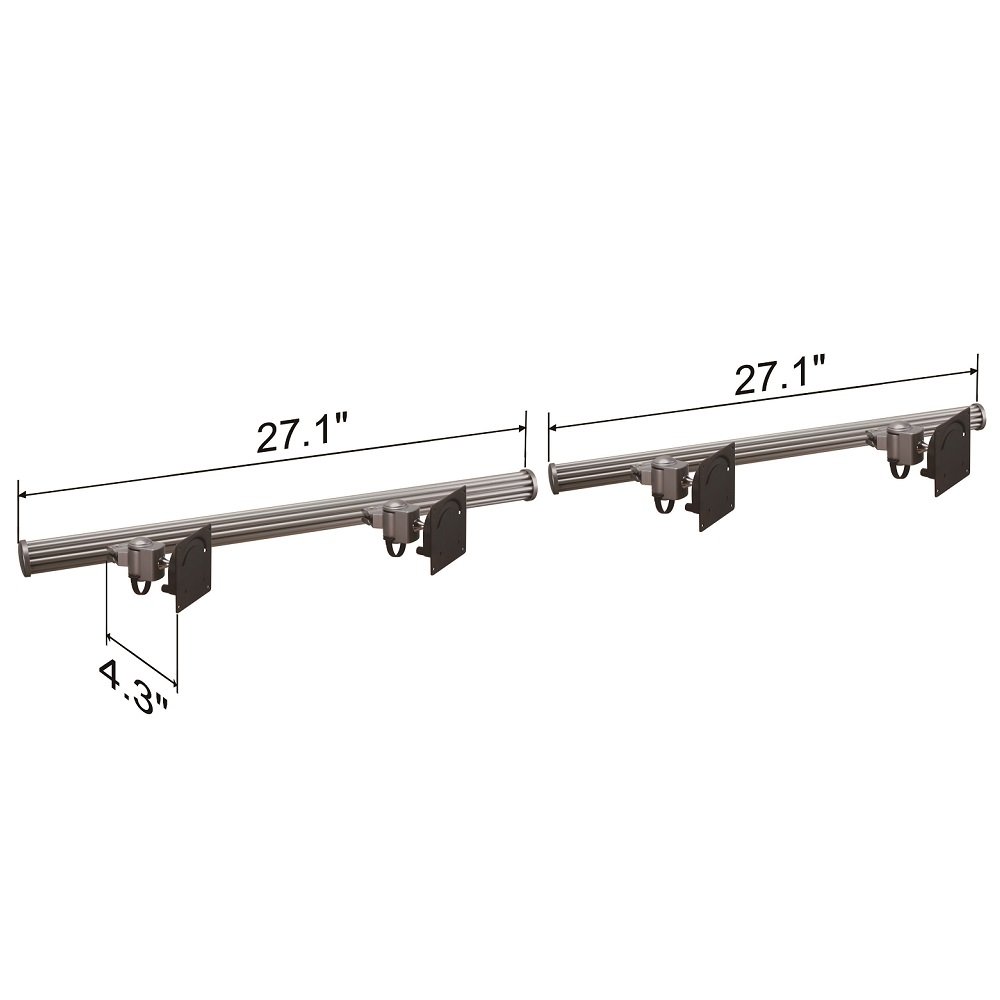

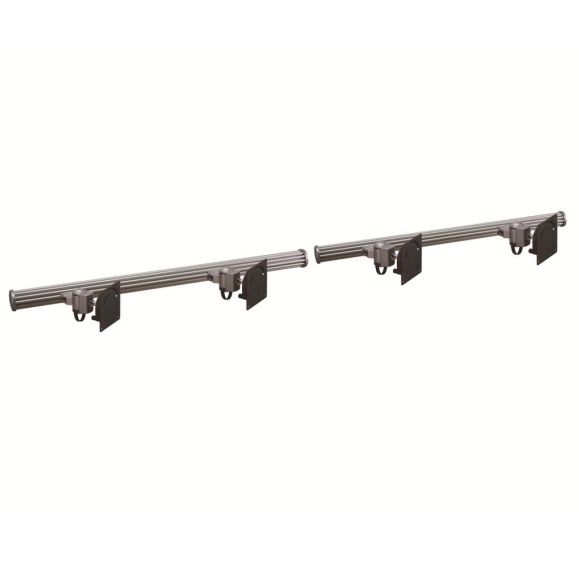

VESA Wall Mount for 4 Monitors w/ Short Arms Horizontal is a multiple monitor wall mount with 30 degrees up/down tilt & up to 180-degree swivel functionalities. 360-degree monitor rotation enables portrait and landscape positioning. Aluminum alloy material renders the LCD monitor mount lightweight yet sturdiness, with a weight capacity of 22 lbs (10 kg) for each monitor. Optimal viewing angles and most ergonomic positioning can be achieved through the multiple flat panel mount full motion characteristics. This mounting bracket, which fits all standard types of wall, is ideal for classrooms, offices, homes, public area, industrial settings, production line, and many more. The monitor arm features integrated durability through state of the art engineering technology and is tested for strength in our oversea manufacturing plant. The LCD wall mount has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts.
These downloads require Adobe Reader. To get Adobe Reader to click here.
Q: What is 'Front-end Dynamic Height Adjuster'?
A: It's an accessory that allows a monitor to slide up and down along it to make height adjustments. For more information, please click here.
