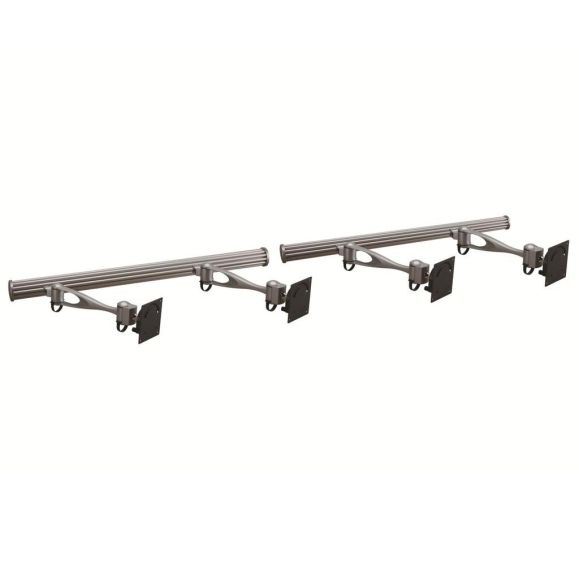

VESA Wall Mount for 4 Monitors w/ Full Swing Single Arms
Specifications
 |
Weight Capacity: | Supports up to 10kgs (22lbs) for each monitor |
 |
Maximum extension: | 12.2" (309.9mm) |
 |
Mounting profile: | 4.3" (109.2mm) |
 |
Tilt: | 30° / - 30° |
 |
Rotation: | 360° (portrait or landscape) |
 |
Swivel: | Max 180° |
 |
Mounting Pattern: | VESA compliant: 75x75 and 100x100 |
 |
Mounts on Studs: | Double-stud |
Accessories
Monitor Mount Front-end Adjuster
Features

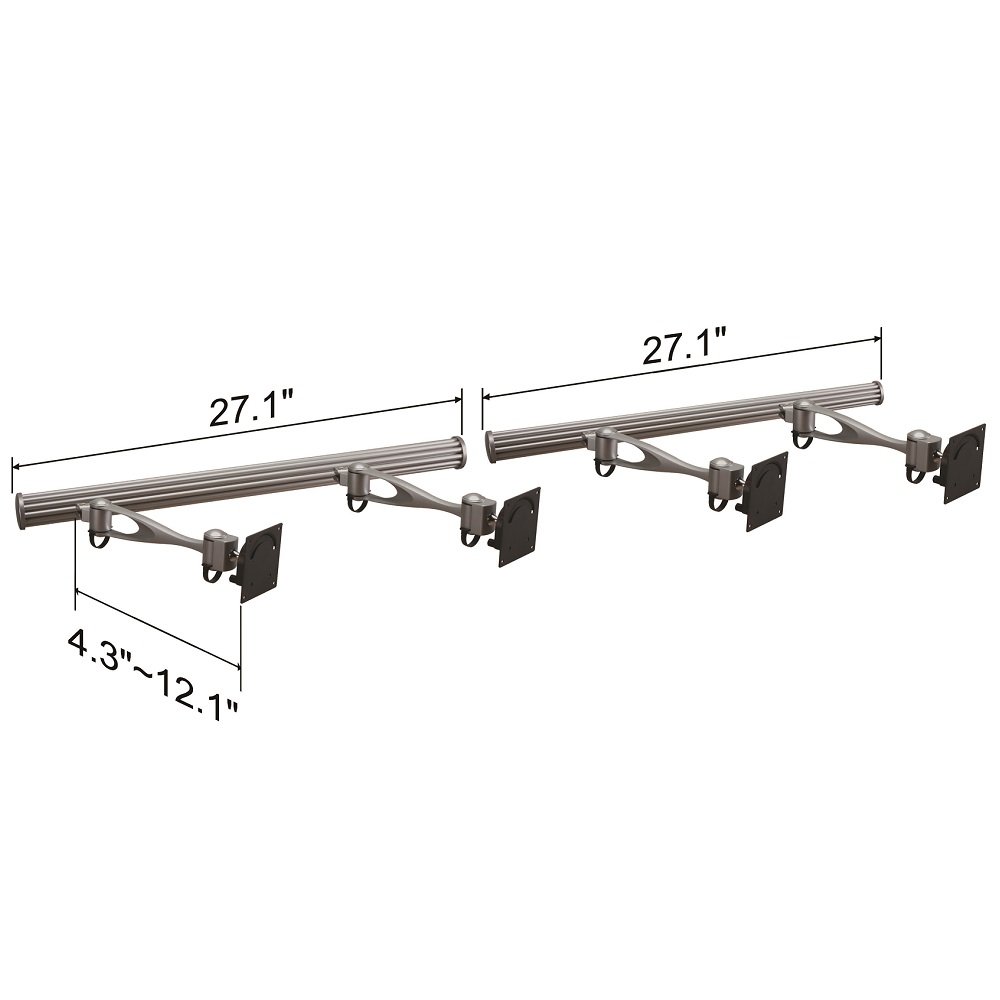

- Wall mount type fits all standard type of wall; Pole length: 27.1" each; Gap distance between the two poles are adjustable.
- Single-arm, supports four LCD flat panel displays, in portrait or landscape orientation.
- Two 27.1"-long bars, accommodating various sizes of monitors
- Portrait/landscape rotation 360°. Smooth, fingertip tilt in all directions.
- Increase efficiency by using multiple applications simultaneously, eliminating toggling back and forth between documents and programs.
- Maximum adjustment rendered by tilting, swiveling, pivoting, rotation, and height adjustment
- The unique 180° swiveling feature allows users to share a screen with their close neighbor or the one across the desk, making this perfect for selling and training environments.
- May be used to support a laptop by using the Mountable Laptop Tray
- Ergonomic solution for home and office. Maximize viewing effectiveness
- Solid aluminum alloy construction
- Quick to install, easy to use
Product Description
VESA Wall Mount for 4 Monitors w/ Full Swing Single Arms is a multiple monitor wall mount with 30 degrees up/down tilt & up to 180-degree swivel functionalities. 360-degree monitor rotation enables portrait and landscape positioning. Aluminum alloy material renders the LCD monitor mount lightweight yet sturdiness, with a weight capacity of 22 lbs (10 kg) for each monitor. Optimal viewing angles and most ergonomic positioning can be achieved through the multiple flat panel mount full motion characteristics. This mounting bracket, which fits all standard types of wall, is ideal for classrooms, offices, homes, public area, industrial settings, production line, and many more. The monitor arm features integrated durability through state of the art engineering technology and is tested for strength in our oversea manufacturing plant. The LCD wall mount has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts.
Downloads

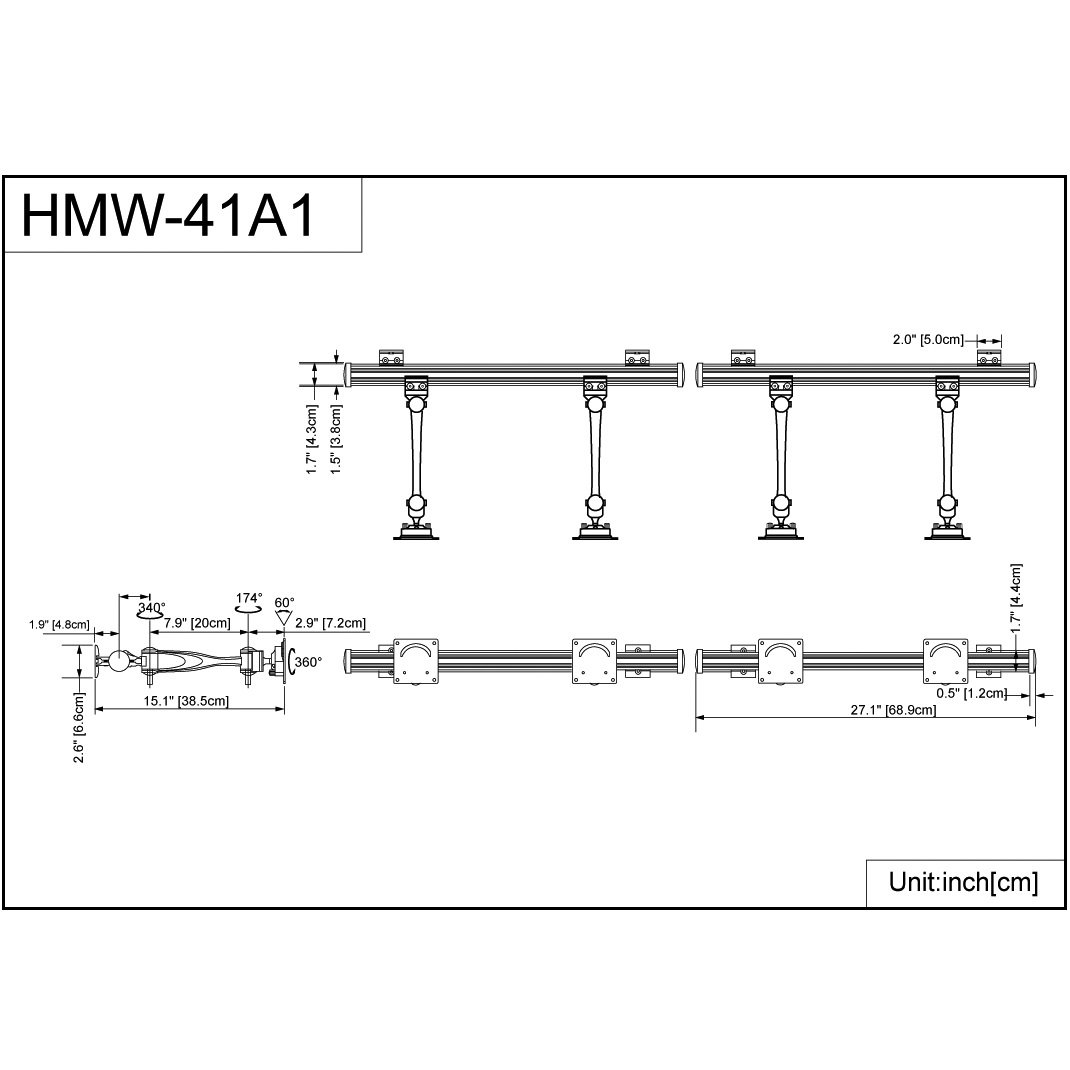

DimensionsThese downloads require Adobe Reader. To get Adobe Reader to click here.
Q: What is 'Front-end Dynamic Height Adjuster'?
A: It's an accessory that allows a monitor to slide up and down along it to make height adjustments. For more information, please click here.
