VESA Mount for Slatwall w/ Single LCD Monitor Arm
 |
Weight Capacity: | Supports up to 10kgs (22lbs) |
 |
Tilt: | 15° / - 15° |
 |
Swivel: | Max 180° |
 |
Mounting Pattern: | VESA compliant: 75x75 and 100x100 |
 |
Rotation: | 360° (portrait or landscape) |
 |
Maximum extension: | 10" |
Features
- For slat wall that has the groove edge thickness no more than 0.2"
- Solid aluminum alloy construction
- Quick to install, easy to use
- Ergonomic solution for home and office
- Fingertip tilt
- Portrait/landscape rotation 360°
- May be used to support a laptop by using the Mountable Laptop Tray
Accessories
Compatible Slat Walls
Dynamic Height Adjuster
Anti-theft Screws
Product Description

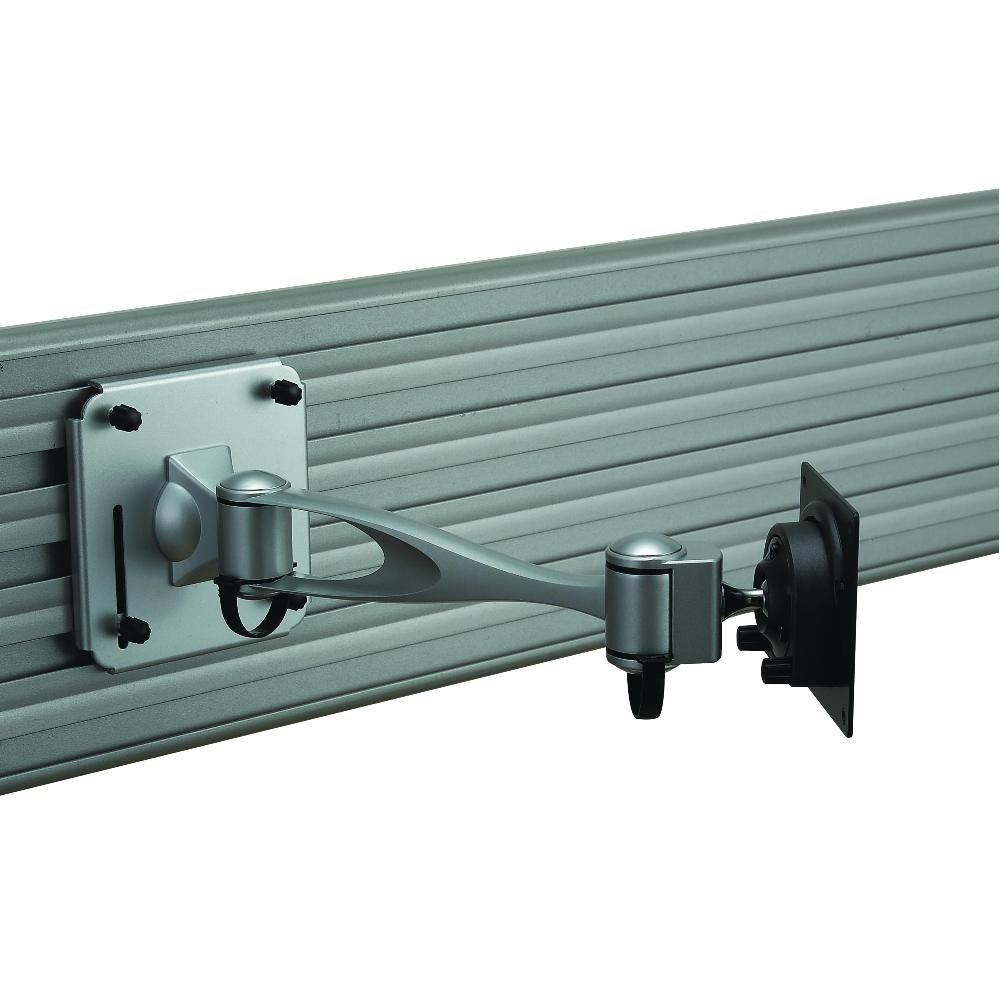

Our new VESA Mount for Slatwall w/ Single LCD Monitor Arm is a tilt & swivel mount, featuring 360-degree monitor rotation. It can swivel left and right up to 180 degrees, tilts upwards and downwards up to 15 degrees, aluminum alloy material, and a weight capacity of 22lbs (10kgs). This LCD monitor Slatwall mount is a full motion type that can achieve optimal viewing angles by tilting and turning. This mounting bracket is ideal for classrooms, offices, homes, public area, industrial settings, production line, and many more. The monitor arm features integrated durability through state of the art engineering technology and is tested for strength in our oversea manufacturing plant. The LCD wall mount has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. Please note that the slat wall in the picture is for demonstration and is not included, but you may purchase as an option.
Downloads
Installation Manual These downloads require Adobe Reader. To get Adobe Reader to click here.
Q & A
Q: How to tell if my slat wall is compatible or not?
A: Since our slat wall mounts need to hang onto the groove edge of the slat wall and then fastened by provided thumb screws, the groove edge cannot be more than 0.2" thick to accomplish that. Thus as long as the groove edge of your slat wall is within that range, then it's okay. Please feel free to check out the
slat walls
we offer.
Q: What is 'Front-end Dynamic Height Adjuster'?
A: It's an accessory that allows a monitor to slide up and down along it to make height adjustments. For more information, please click here.
