|Fits most:||32" to 50" flat panels|
|Weight Capacity:||Supports up to 44 lbs (20 kgs)|

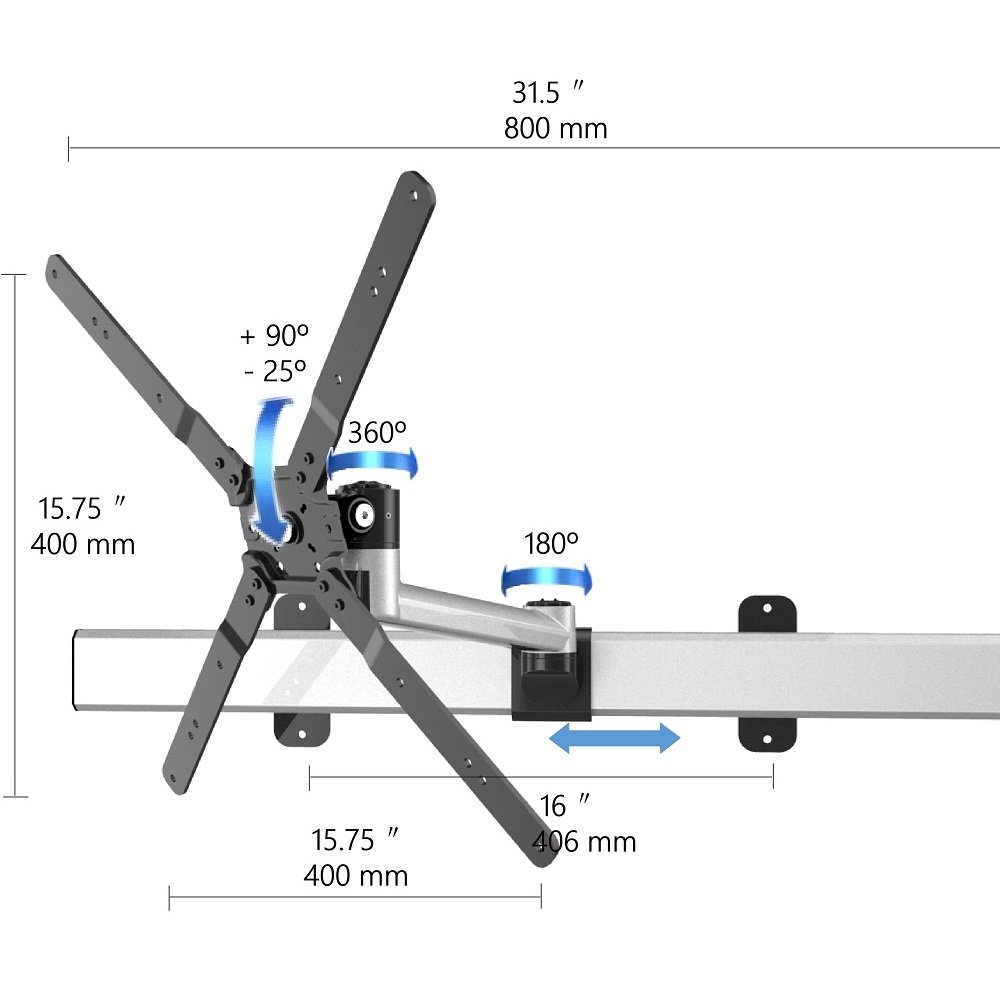

|Tilt:||Forward 25° / Backward 90°|
|Mounting profile:||4.3" (109mm) Minimum - 9.84" (250mm) Maximum Depth From Wall|
|Mounts on Studs:||Single-Stud or Double-Stud|
|Mounting Pattern:||VESA compliant: 100x100 to 400x400|
|Rotation:||90° for Portrait & Landscape Orientations|
You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to convert to millimeters: 100mm = 3.94 inches; 200 mm = 7.87 inches; 300mm = 11.8 inches; 400 mm = 15.7 inches.

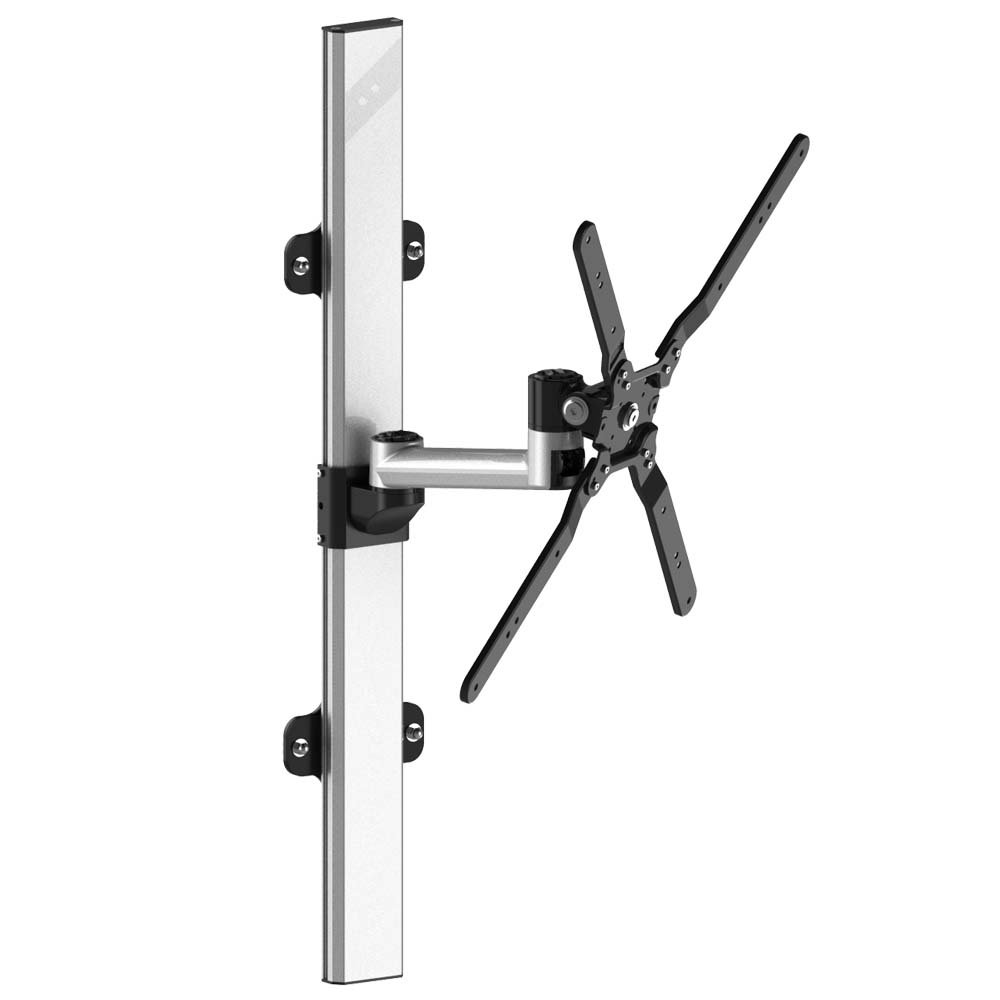

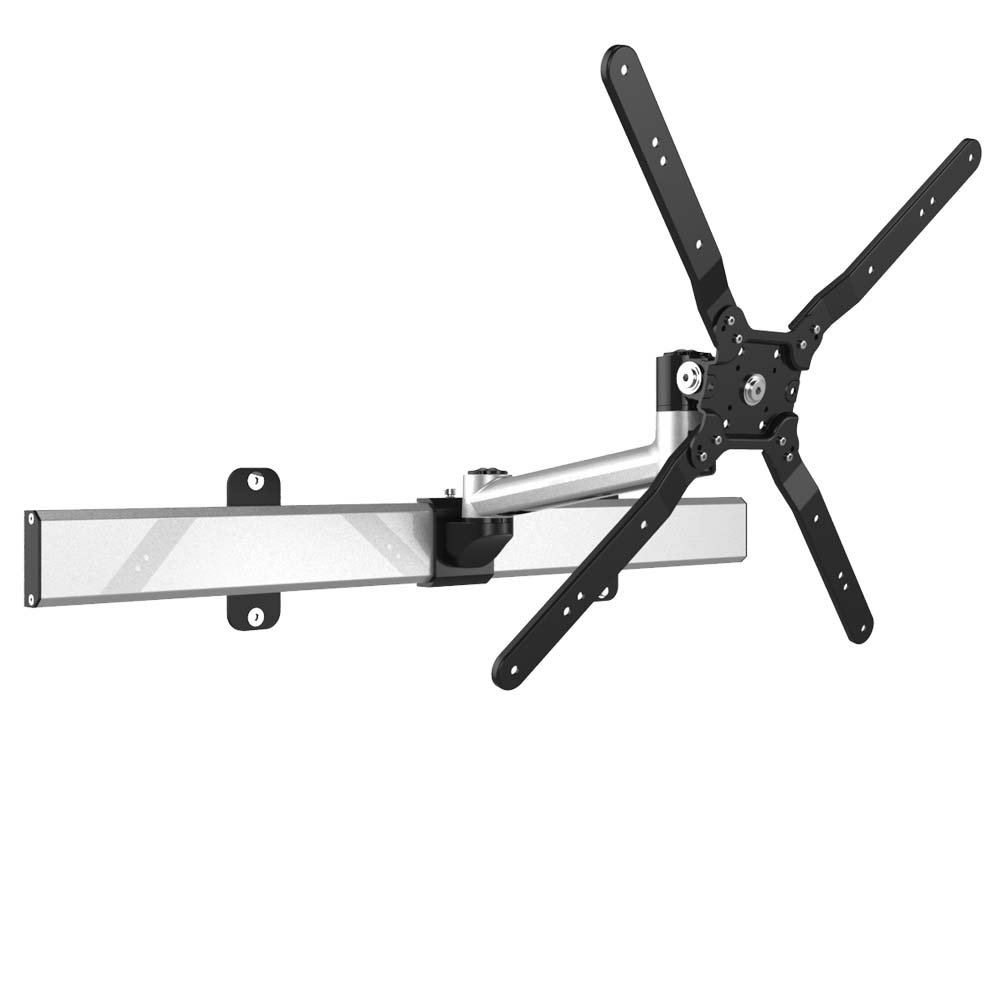

The new TV Wall Mount - 32 – 50" w/ Two Orientations Quick Release & Rotation is a tilt, swivel & rotate mount, featuring 115 degree tilt, 180 degree swivel & 4.3 inch ultra-low profile. This flat screen TV wall mount is a full motion type that can achieve optimal viewing angles by tilting and turning. This adjustable pivoting wall mount, with weight capacity of 44 lbs (20 kgs), features integrated durability through state of the art engineering technology, and is tested for strength in our oversea manufacturing plant. The Cotytech wall mount has been built with the end user in mind, and features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. If you need more information about how to select TV wall mounts please click here.
Your premier source for practical and affordable flat screen mounting and placement solutions.
Cotytech is a forward thinking manufacturing firm known for designing advanced top-of-the-line flat screen, LCD, plasma and TV mounting systems for home entertainment and business applications.
Our selection of wall, corner, and ceiling mounts for flat TVs, as well as our monitor and digital signage mounts are developed using premium quality materials with extensive attention to detail. We proudly offer superior entertainment and presentation experiences while keeping crucial ergonomic comfort and end-user functionality in mind.
