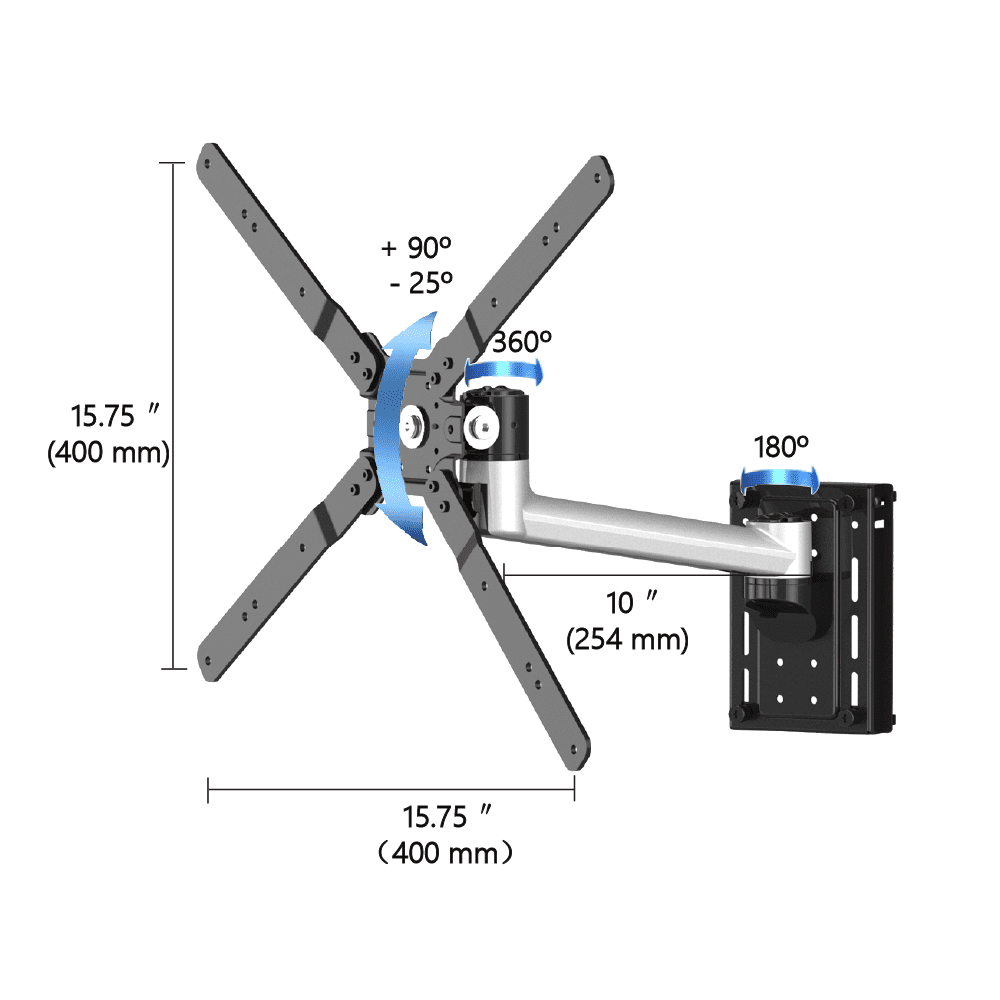

|Fits most:||32" to 50" flat panels|
|Weight Capacity:||Supports up to 44 lbs (20 kg)|
|Tilt:||Forward 25° / Backward 90°|
|Mounting profile:||4.3" (109mm) Minimum Depth From Panel|
|Maximum extension:||10" (254mm)|
|Mounting Pattern:||VESA compliant: 100x100 to 400x400|
You may usually find mounting patterns dimensions on the technical drawing page of your owner's manual. Otherwise, you can measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to convert to millimeters: 100mm = 3.94 inches; 200 mm = 7.87 inches; 300mm = 11.8 inches; 400 mm = 15.7 inches.

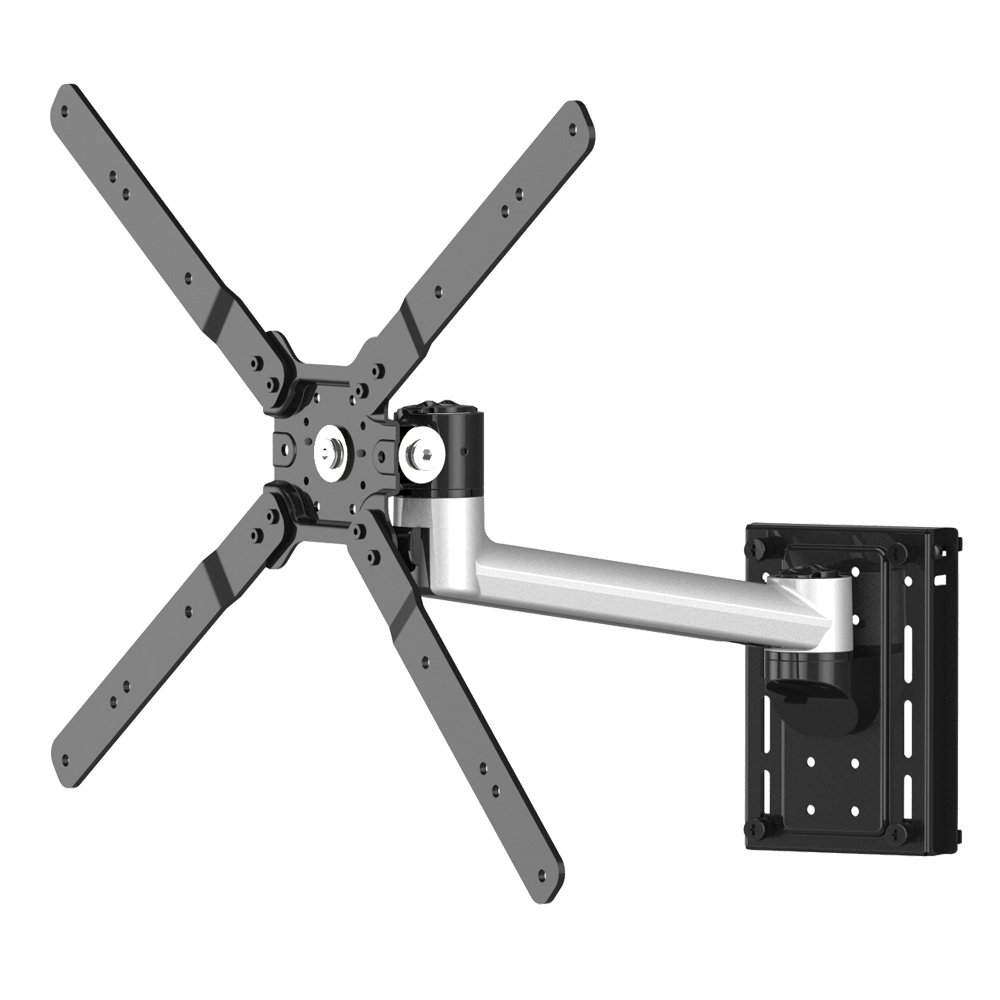

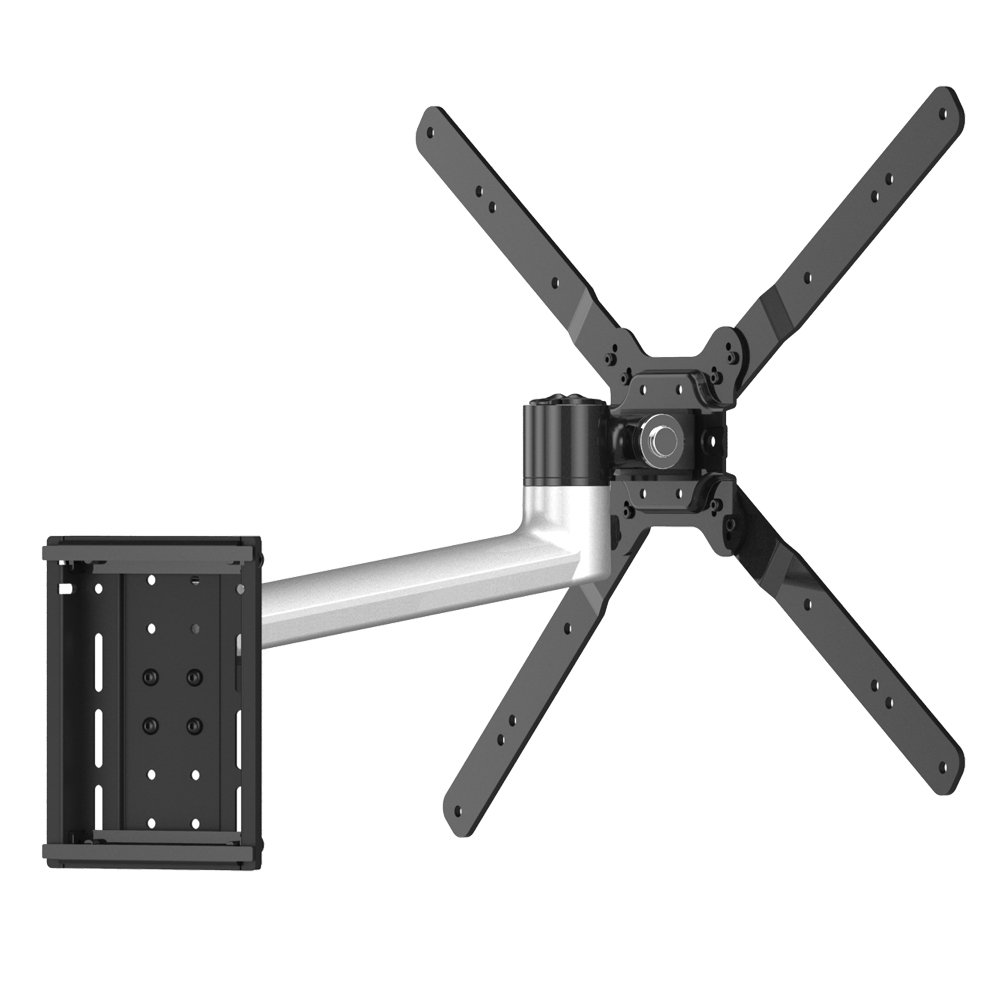

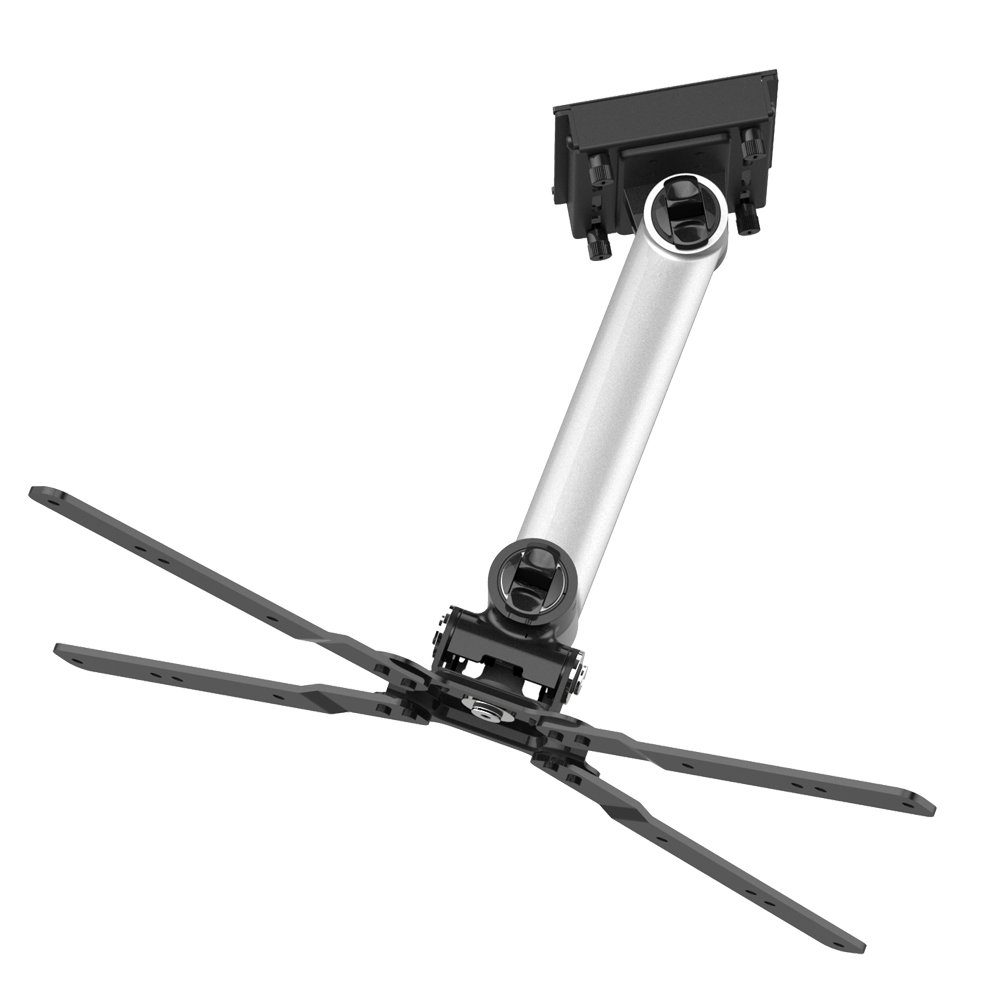

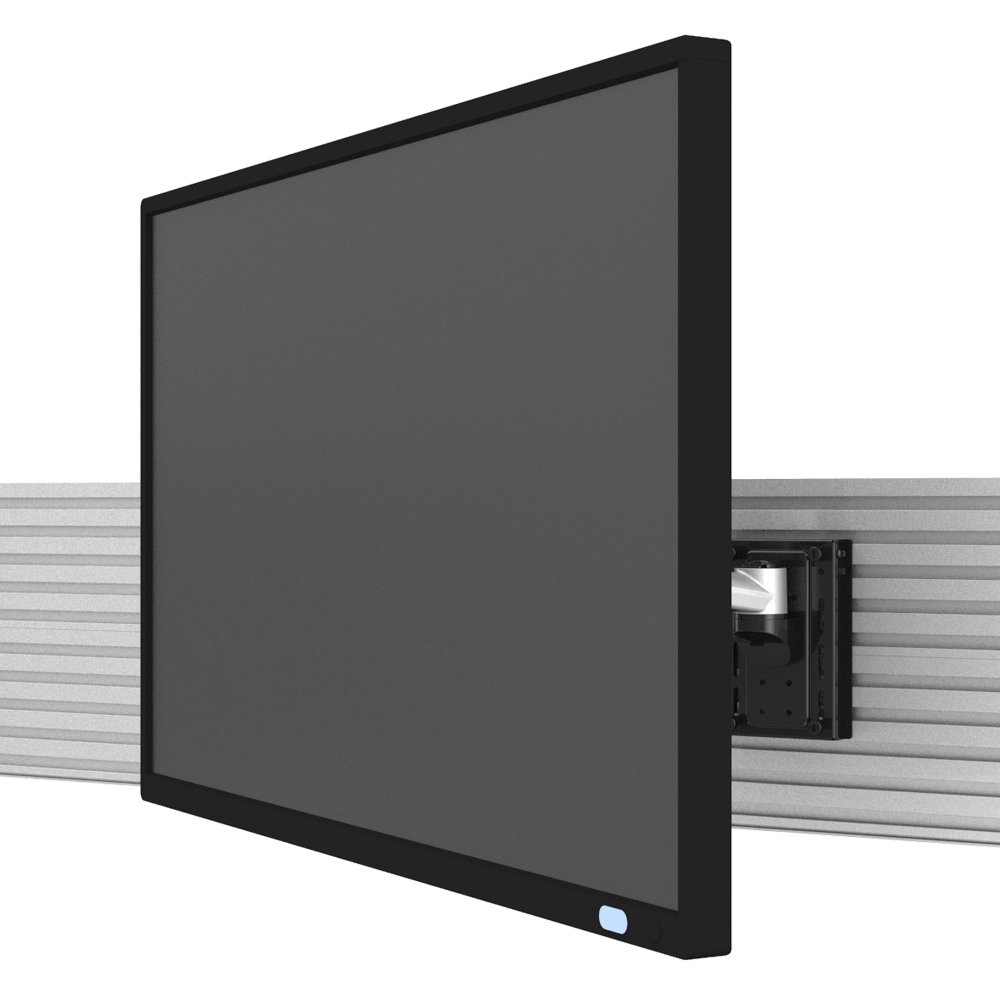

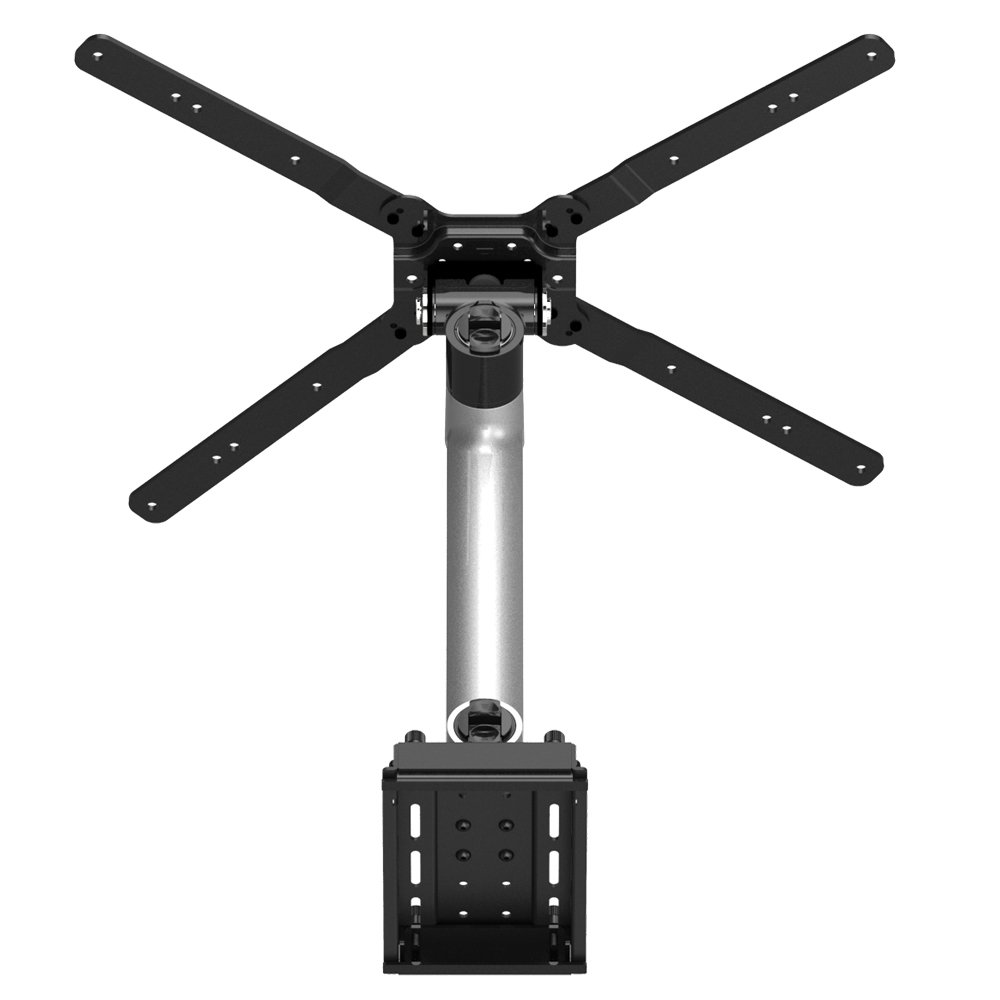

The unique and creative TV Slatwall Mount 32 – 50" w/ Quick Release Single Arm has three pivot points. The TV mount can achieve the best viewing positions by full motion functionality. The slat wall mount solution has a weight capacity of 44 lbs (20 kgs), featuring 115-degree tilt, 180-degree swivel & 10-inch full extension. This flat screen swivel TV Slatwall mount boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The Slatwall TV mount has been built with the end-user in mind and features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of Slatwall mounts. Please note that the slat wall in the picture is for demonstration and is not included, but you may purchase as an option. If you need more information about how to select TV mounts please click here.
