Triple Monitor Desk Mount Pyramid or Reverse w/ Quick Release

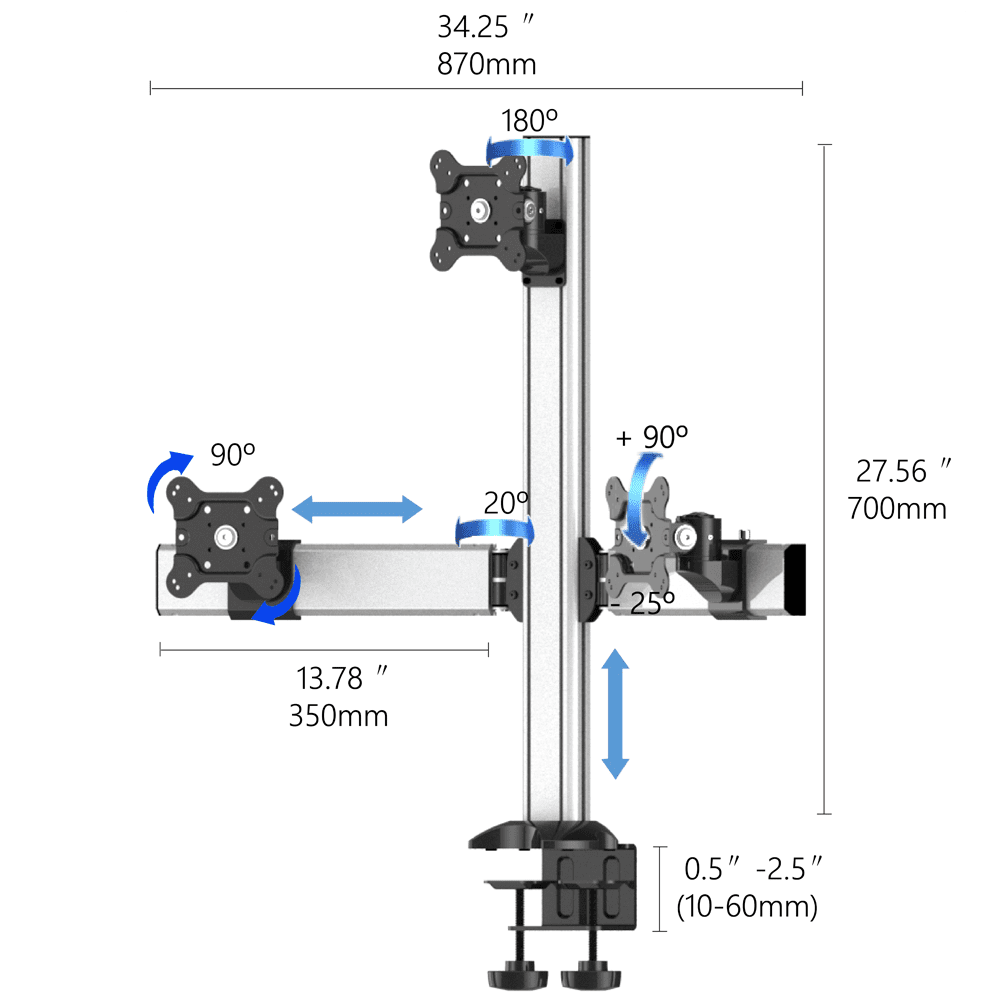

Specifications

	Weight Capacity:	Supports up to 44lbs (20kgs) for each monitor
	Tilt:	+90° / -25° (provided there are no obstacles)
	Rotation:	90° (portrait or landscape)
	Swivel:	Max 360°
	Mounting Pattern:	VESA compliant: 75x75 and 100x100, with option choice of 200x200
	Maximum extension:	4" (102.9mm)

Features

• Desk mountable

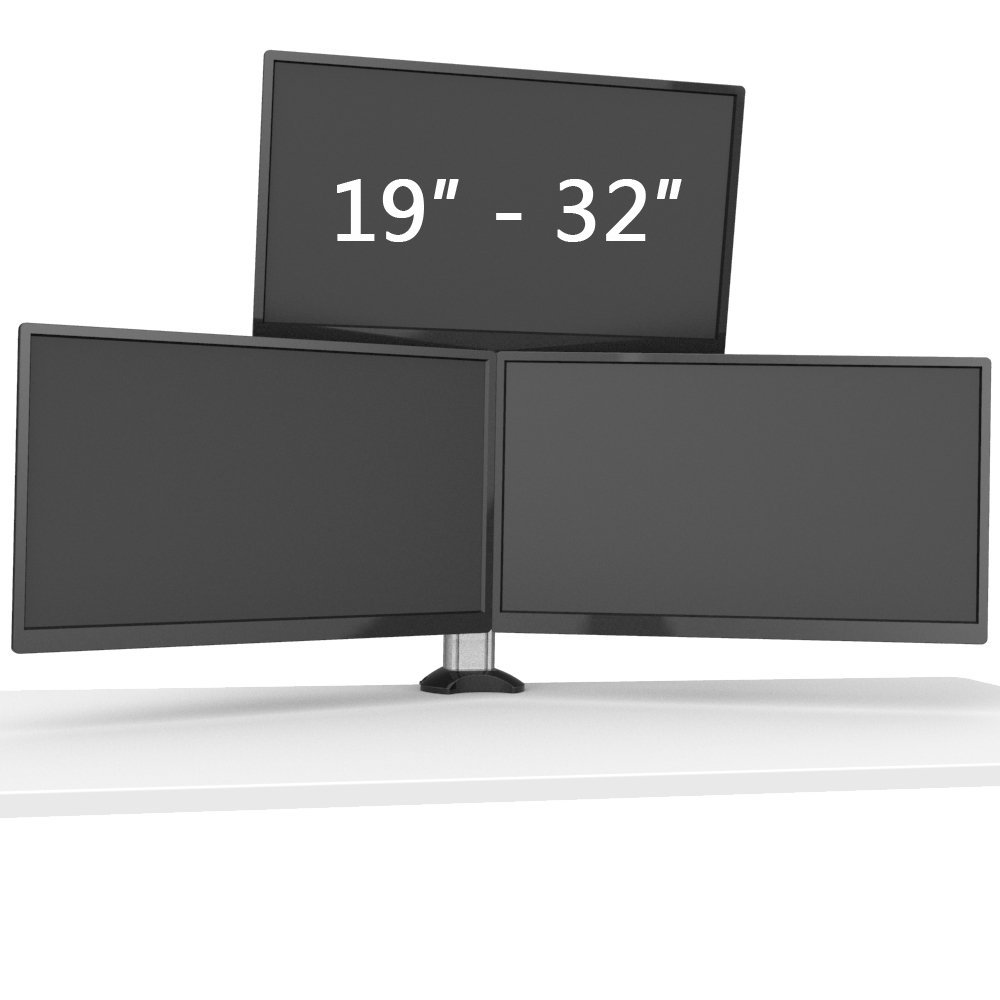

• Supports three monitors up to 32", in pyramid or reverse pyramid shape, within weight capacity and with compatible VESA patterns

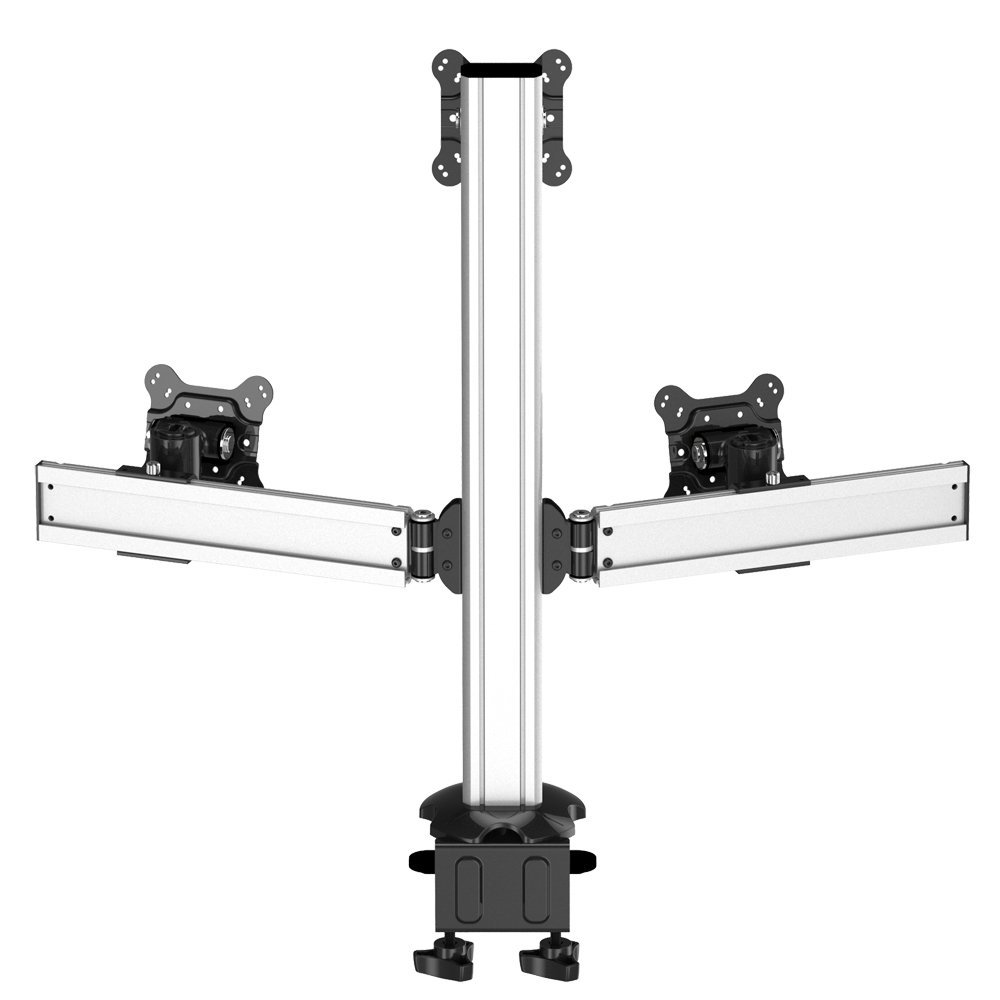

• Side beam length: 13.8" each; Two side screens can be placed straight or in cockpit shape; max. inward angle: 20°; Additional angle adjustments are available at the brackets
• 2-in-1 base: can be used as either a clamp base or a grommet base
• Clamp Base fits table thickness: 0.8" - 2.7" (10 - 69mm); Designed with double clamp for extra sturdiness
• Grommet Base fits table thickness: 0.8" - 3.9" (20 - 100mm) and hole diameter: 0.5" - 2.3" (12 - 60mm)
• Large base area (6.5" W x 5" D) for most secured installation (optimal solution for curved table edge)
• Vertical Beam length: 27.6" (500mm); optional longer beam available in 43.3"
• Brackets feature quick release design: only a matter of a 'click' to get connected and with the push of a button then lift off to get disconnected
• Maximum adjustment rendered by tilting, swiveling, rotation, and optional dynamic height adjustment
• Swift and easy movements and adjustments
• Height Adjustment Range: 19.7" manually at the beam or 9.4" dynamically with a Front-end Adjuster option
• Solid Aluminum die-cast construction
• Space-saving with its compact design
• Clean look with minimal hardware visible from the underside of the work surface
• Rotation 90° and side-to-side pivot
• May be used to support a laptop by using the Mountable Laptop Tray
• Neat and efficient cable management
• Maximum productivity and supreme ergonomic comfort
• Easy installation and dis-installation
• Color: Metallic Silver & Black

Product Description

The Triple Monitor Desk Mount Pyramid or Reverse w/ Quick Release is an attractive stand for your LCD monitor. With a 360° swivel function and a weight capacity of 44 lbs (20kg) for each screen, this desk mount is perfect for offices, classrooms, homes, and public areas. It is a must-have accessory for busy individuals and can easily fit into any home office space. This LCD monitor stand allows for +90° / -25° tilt actions, ensuring optimal viewing from any angle. The convenient display stand also includes robust cable management, creating a clean, organized desk space with no visible cables. This comfortable and stylish LCD desktop stand offers great flexibility and can be easily adjusted to suit any viewing angle. With its modern design, it complements the sleek appearance of LCD monitors. The LCD desk mount is built with the latest engineering technologies to guarantee durability and strength. These high-quality stands are manufactured in our offshore production facility, following strict quality standards to provide value to our customers. Designed with the end user in mind, this practical desk stand offers easy installation features and intuitive, functional designs.

Q & A

Q: When would I need the longer beam option?
A: When your monitors are more than 27" or need more clearance from the lower edge of the lower row of monitors to the desk surface.
