Features
![]() |
Weight Capacity: | Supports up to 17.6 lb (8 kg); Optional more substantial weight capacity of 33.1 lb (15 kg) available |
![]() |
Tilt: | unlimited until comes across obstacles / - 10° (display); 40° / - 25° (arm); 90° / 0° (keyboard) |
![]() |

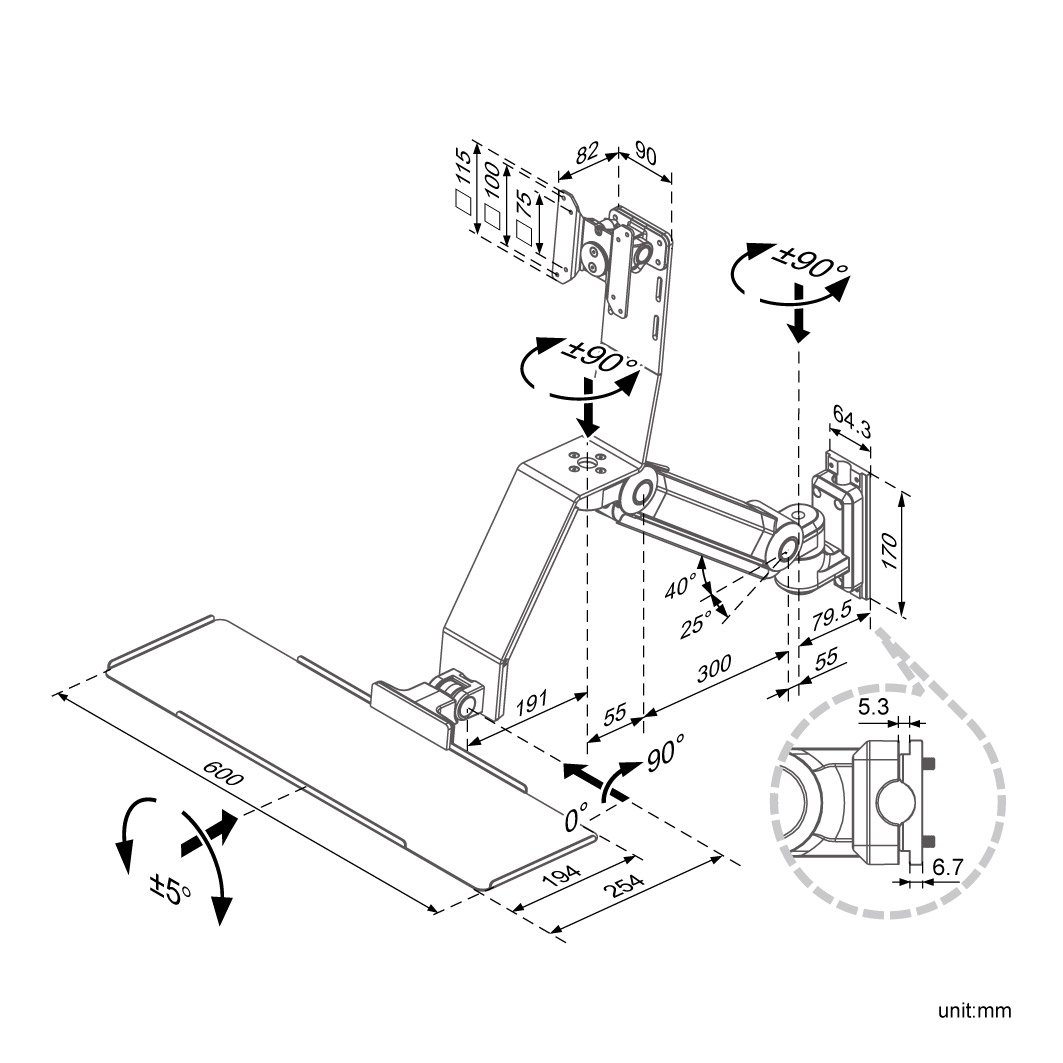

Maximum extension: | 36.8" (93.5cm) (from wall to front end of keyboard tray); More extension is possible by adding extension arms; each is 10.23" long |
![]() |
Rotation: | 5° / - 5°(keyboard) |
![]() |
Mounting Pattern: | VESA compliant: 75x75 to 100x100; Optional 200x200 |
![]() |
Swivel: | Max 90° (At two connection points: arm to the wall; arm to front monitor and keyboard |
Mounting Pattern
You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise, you can measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your LCD is different, and we are happy to help you out!
Product Description

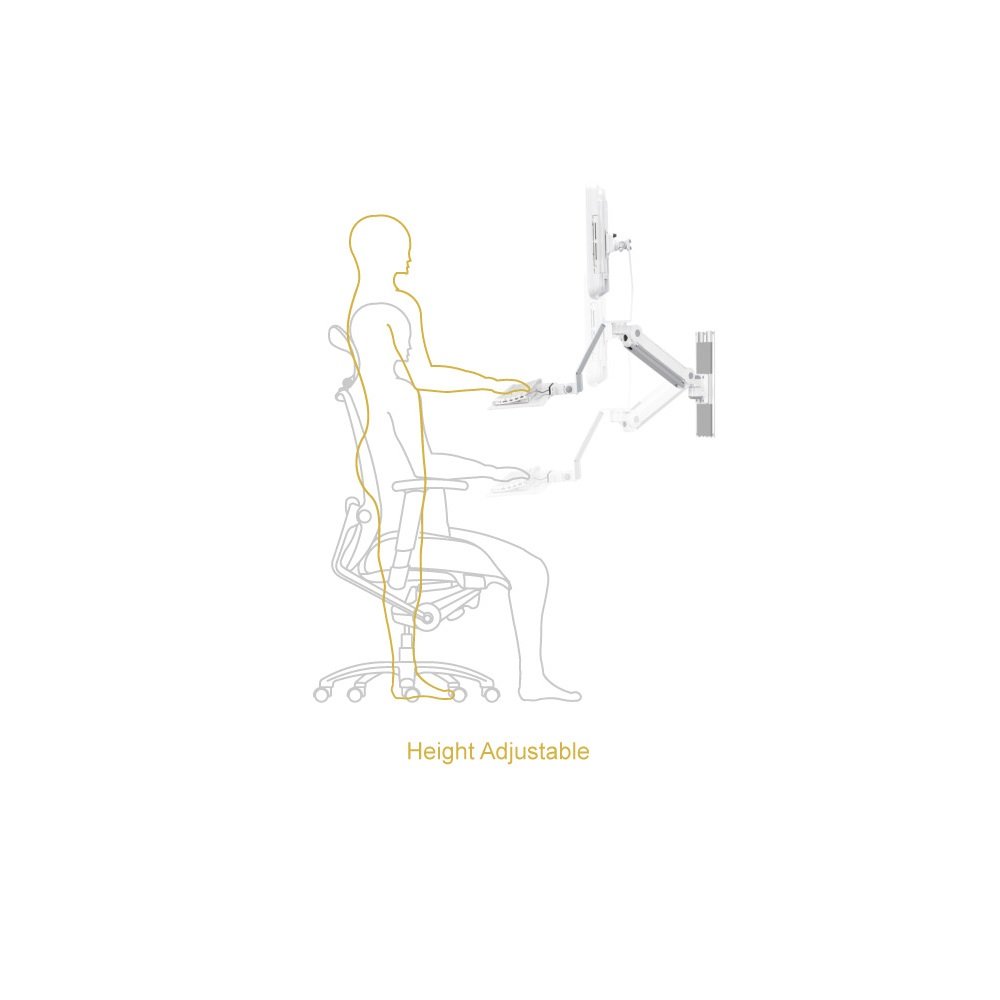

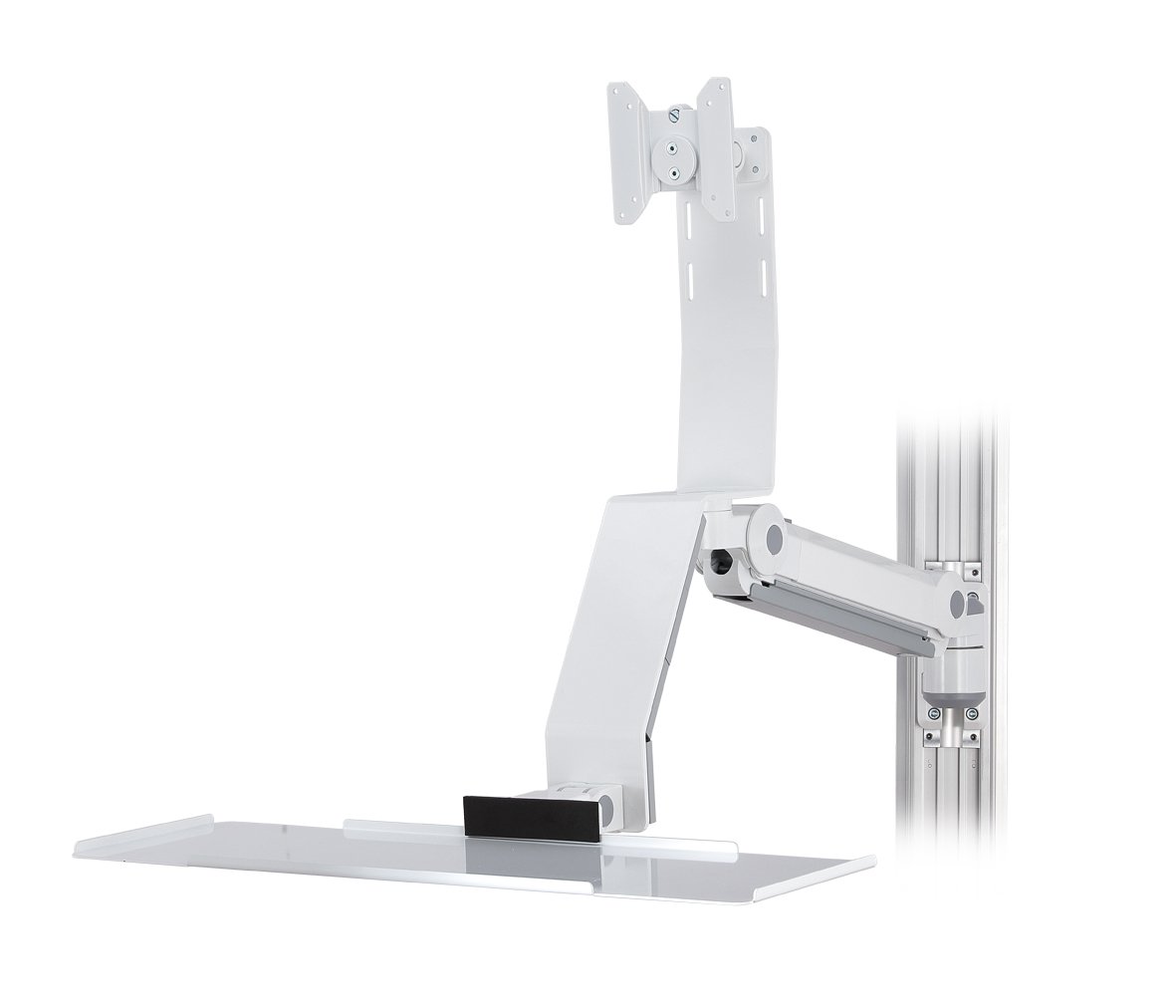

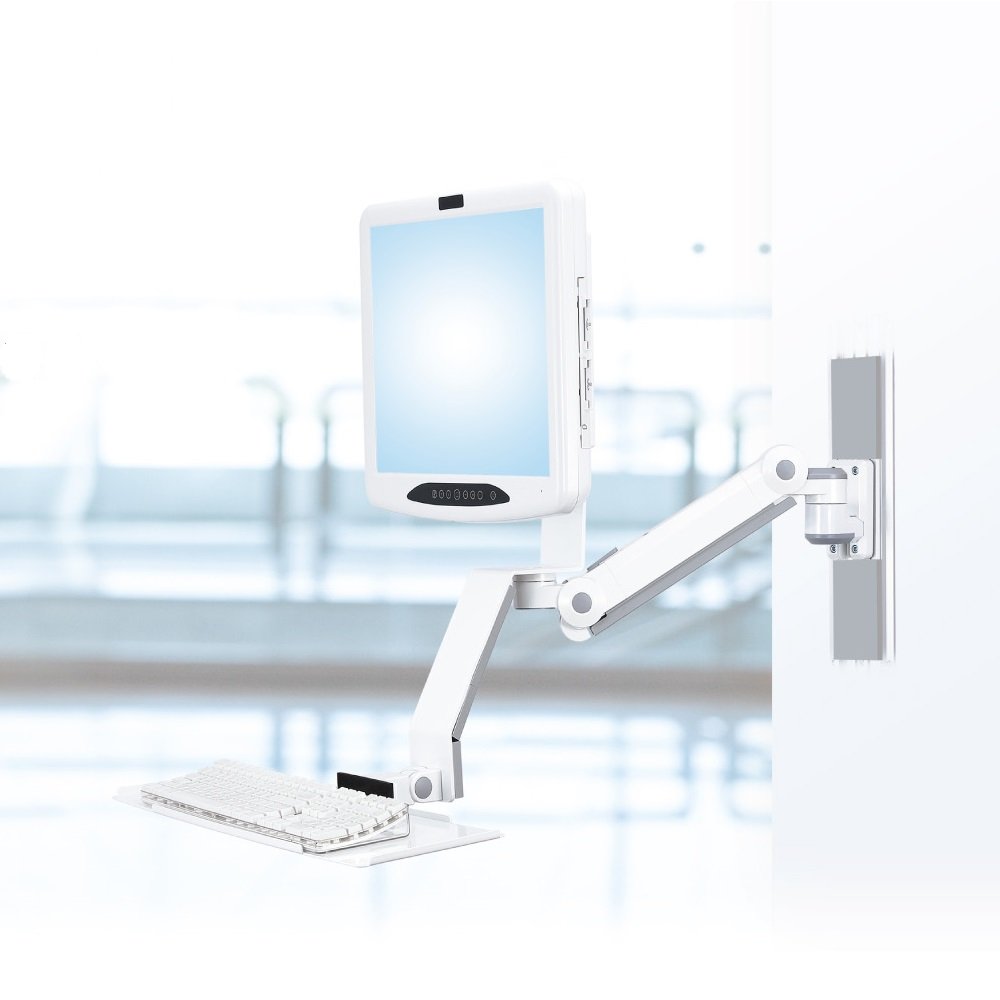

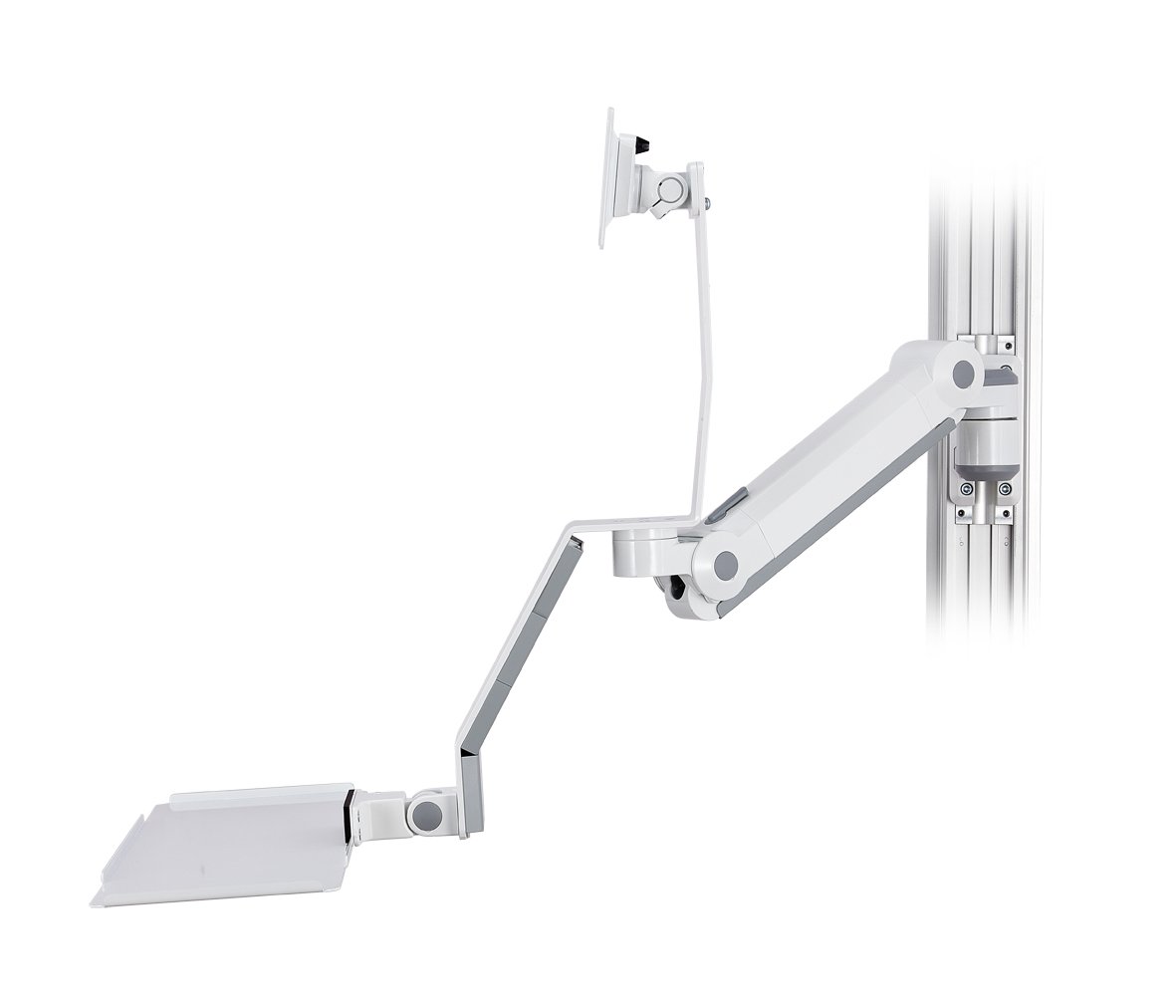

Our new Sit-Stand Track Mount w/ Articulating Monitor Arm & Keyboard Tray features built-in gas pneumatic spring design for easy and smooth movements, allowing a workstation that moves with you. This adjustable system easily adjusts up and down with spring-assisted movement for seated and standing postures. It provides a maximum of 36.8” (93.5cm) straight extension, measured from the wall to the front end of the keyboard tray. The wall track mount solution can be swiveled 90° at two joints for optimal viewing angles. When not in use, the keyboard can be folded up and be out of the way, an excellent space-saving feature for any room. This simple and contemporary looking durable arm is made of aluminum alloy with plastic cover outside. Its ergonomic, space-saving attributes and modern look make the workstation a practical choice in businesses, offices, doctors’ offices, clinics, dental operatories, hospitals, and factories. Please note that the monitor and keyboard are not included.
