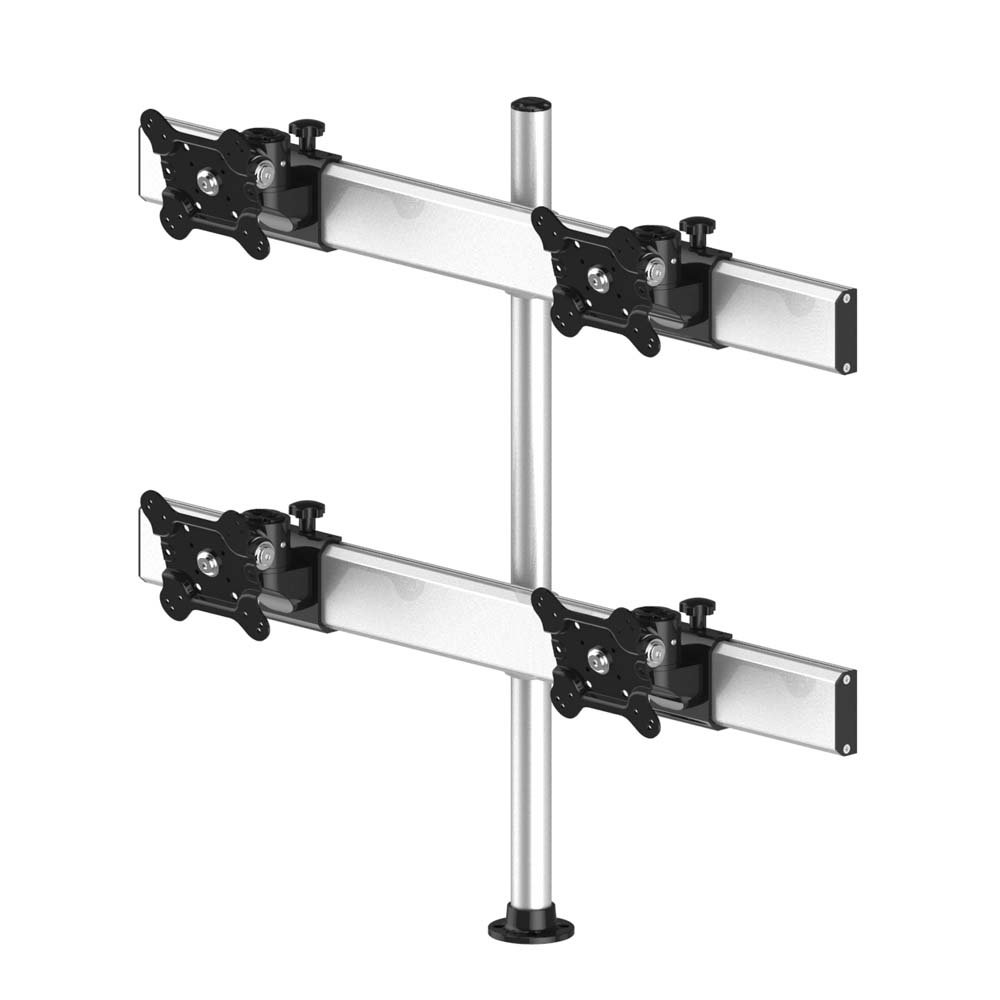

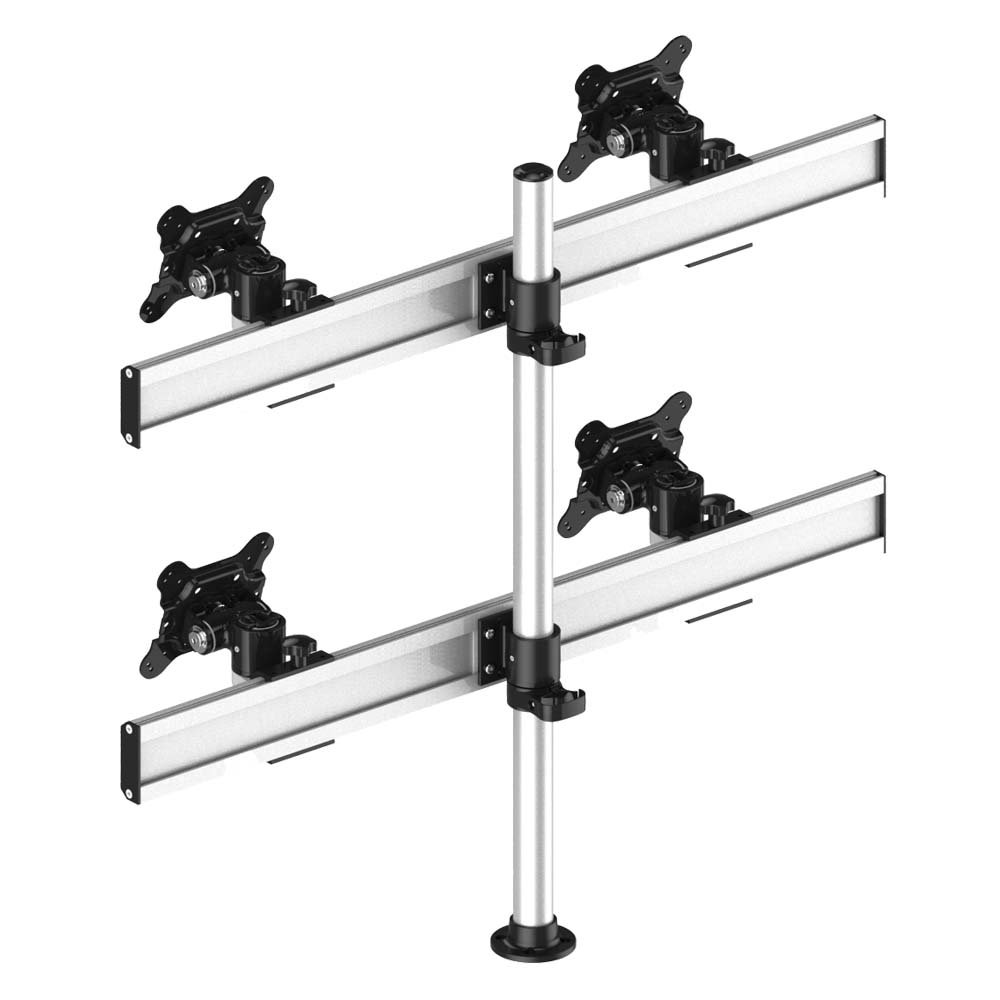

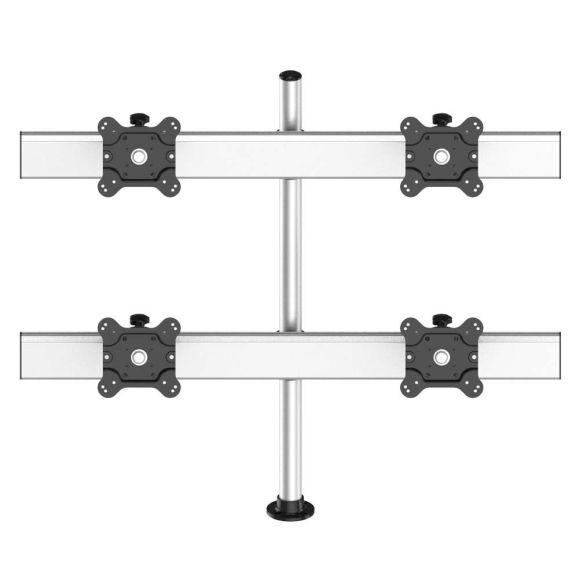

Quad Track Rail Mount 2X2 Low Profile w/ Quick Release
Specifications
 |
Weight Capacity: | Supports up to 110lbs (50kgs) in total |
 |
Tilt: | +90° / -25° (provided there is no obstacles) |
 |
Rotation: | 90° (portrait or landscape) |
 |
Swivel: | Max 360° |
 |
Mounting Pattern: | VESA compliant: 75x75 and 100x100, with option choice of 200x200 |
 |
Maximum extension: | 4" (102.9mm) |
Features
- 7-in-1 base works for:
1) Single T Slotted Channel
2) 1.5" on Center T Slotted Channel
3) 1" on Center T Slotted Channel
4) 2" on Center T Slotted Channel
5) 3" on Center T Slotted Channel
6) Screw onto Desk Surface
7) Bolt through 0.4" - 2.36" (10 - 60 mm) Hole
You may get quite creative to make this mount work in an environment that is hard to find a solution. - Supports four monitors, average monitor width of no more than 31.5" for the ones next to one another; average monitor height of no more than 18.3" for the ones placed top-down;
- Dual monitor crossbar length: 31.5";
- Pole length: 27.5"; Longer pole option of 43.3" available
- Brackets feature quick release design: only a matter of a 'click' to get connected and with a push of a button then lift off to get disconnected
- Maximum adjustment rendered by tilting, swiveling, rotation, and optional dynamic height adjustment
- Swift and easy movements and adjustments
- Height Adjustment Range: 27.5" manually at the pole or 9.4" dynamically with the Front-end Adjuster option
- Solid Aluminum die-cast construction
- Space-saving with its compact design
- Clean look with minimal hardware visible from underside of work surface
- Rotation 90° and side-to-side pivot
- May be used to supporting a laptop by using the Mountable Laptop Tray
- Neat and efficient cable management
- Maximum productivity and supreme ergonomic comfort
- Easy installation and dis-installation
- Color: Metallic Silver & Black
Product Description
The Quad Track Rail Mount 2X2 Low Profile w/ Quick Release is a stylish stand that is perfect for your LCD monitor. With a 360° swivel function and a weight capacity of 110lbs (50kg) in total, this track mount is ideal for offices, classrooms, private homes, and public areas. It's the perfect accessory for the busy individual and can fit neatly into any home office space. This LCD monitor stand has +90° / -25° tilt actions to ensure perfect viewing at any angle. The convenient display stand features robust cable management, providing a neat and tidy workspace with no visible cables. This comfortable and stylish LCD 7-in-1 mounting solution offers perfect flexibility and is maneuverable to suit any viewing angle. It has a modern look, which fits in perfectly with LCD's stylish looks. The LCD rail mount has been designed with the latest engineering technologies in mind; to ensure durability and strength. These quality stands are manufactured in our offshore manufacturing plant, adhering to strict quality guidelines that enable us to deliver value to our customers. This handy track mount has been made with the end-user in mind; and ensures easy installation features while simultaneously offering intuitive, practical, and functional designs.
7-in-1 Base
