Features
![]() |
Weight Capacity: | Supports up to 33.1 lb (15 kg) |
![]() |
Tilt: | 90° / - 20° |
![]() |

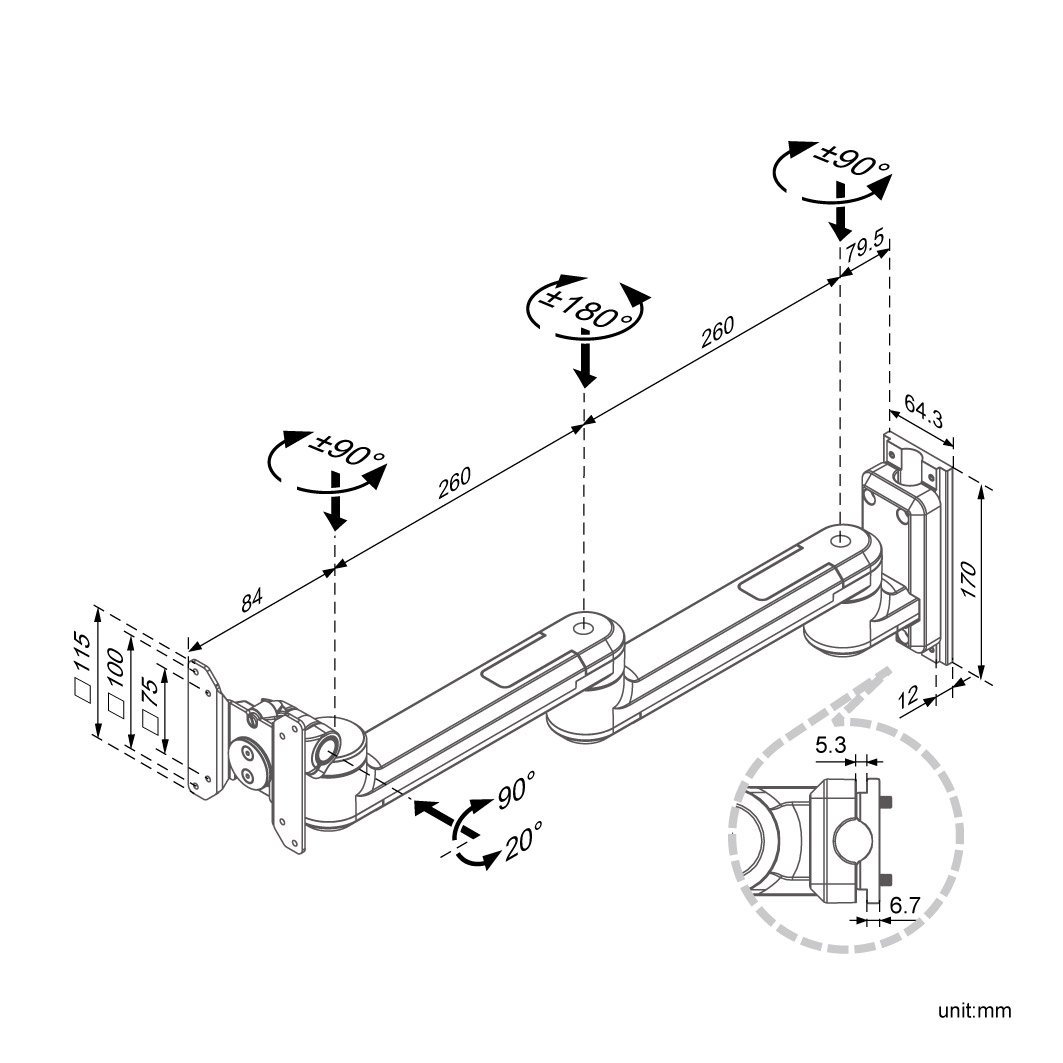

Maximum extension: | 38.3" (97.3cm) (from wall to monitor); More extension is possible by adding extension arms; each is 10.23" long |
![]() |
Mounting Pattern: | VESA compliant: 75x75 to 100x100; Optional 200x200 |
![]() |
Swivel: | Max 180° where two arms are connected / Max 90° at two connection points: arm to the wall; arm to monitor |
Mounting Pattern
You may usually find mounting patterns dimensions on the technical drawing page of your owner's manual. Otherwise, you can measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your LCD is different, and we are happy to help you out!
Product Description

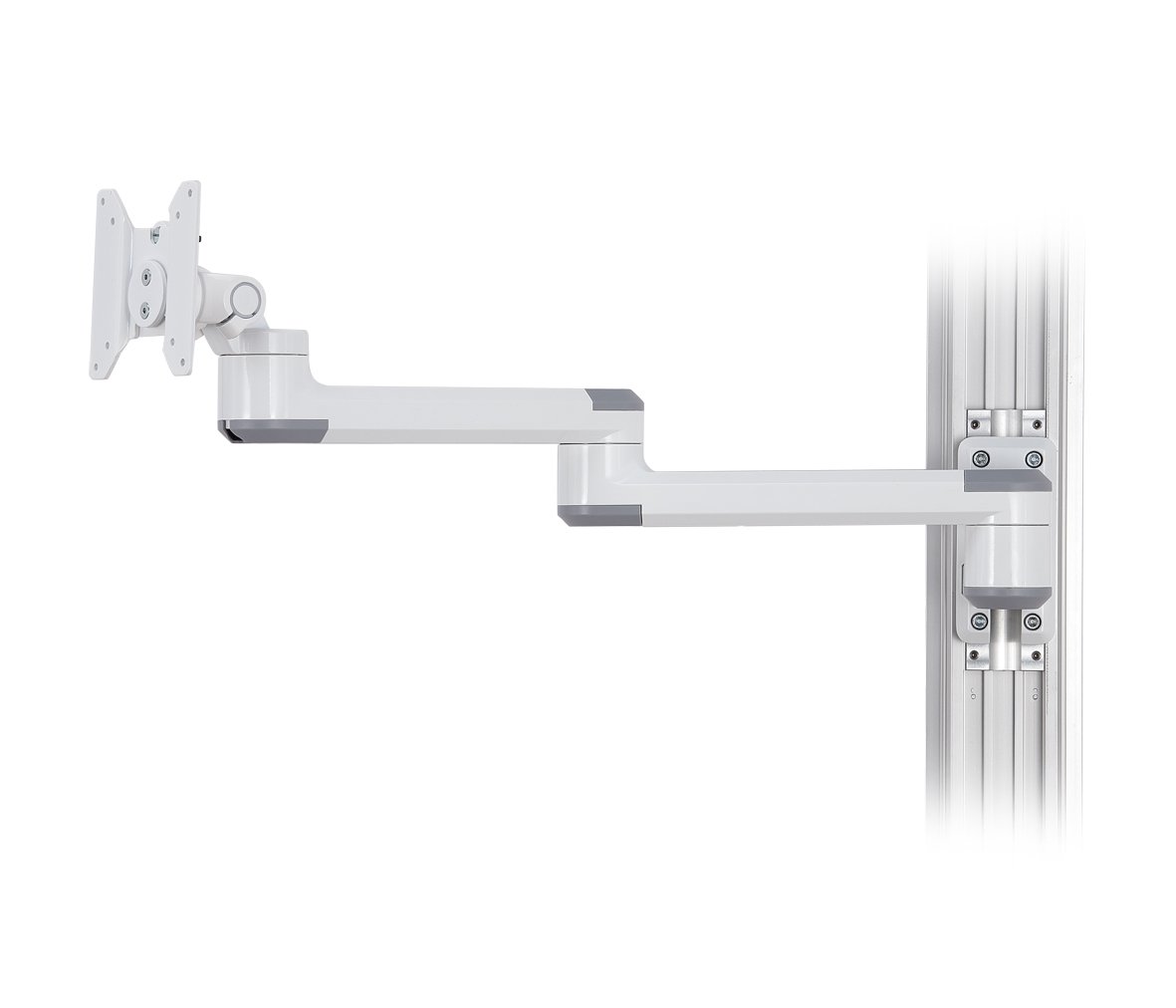

Our new Monitor Track Mount w/ Laterally Adjustable Arms is an adjustable computer workstation that moves into reach with ergonomic, lateral adjustment. Two swivel points on the adjustable arm deliver maximum flexibility for a workspace. It provides a maximum of 38.3" (97.3cm) straight extension, measured from the wall to the front end monitor. The track mount solution can be swiveled 180° and 90° at three joints for optimal viewing angles and patient visibility or privacy. When not in use, the monitor can be pushed away and be out of the way, an excellent space-saving feature for any room. This simple and contemporary looking durable arm is made of aluminum alloy with plastic cover outside. Its ergonomic, space-saving attributes and modern look make the workstation a practical choice in businesses, offices, doctors' offices, clinics, dental operatories, hospitals, and factories. Please note that the monitor is not included.
