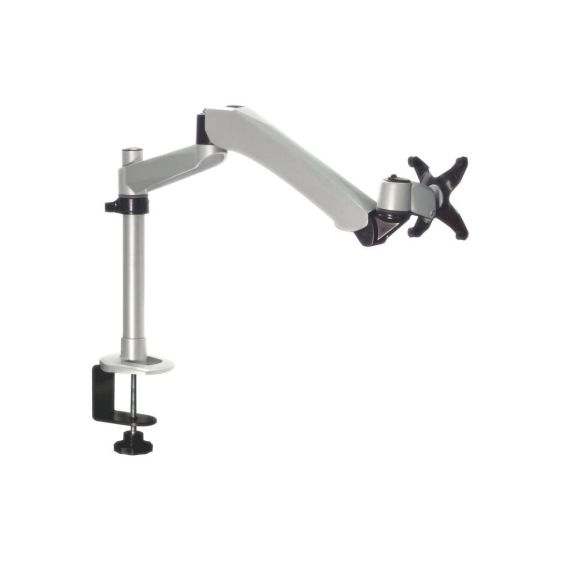

Monitor Stand w/ Spring Arm & Quick Release - Expandable
Comparison to new items DM-GS11 & DM-GM11 with much better features is highly recommended!
 |

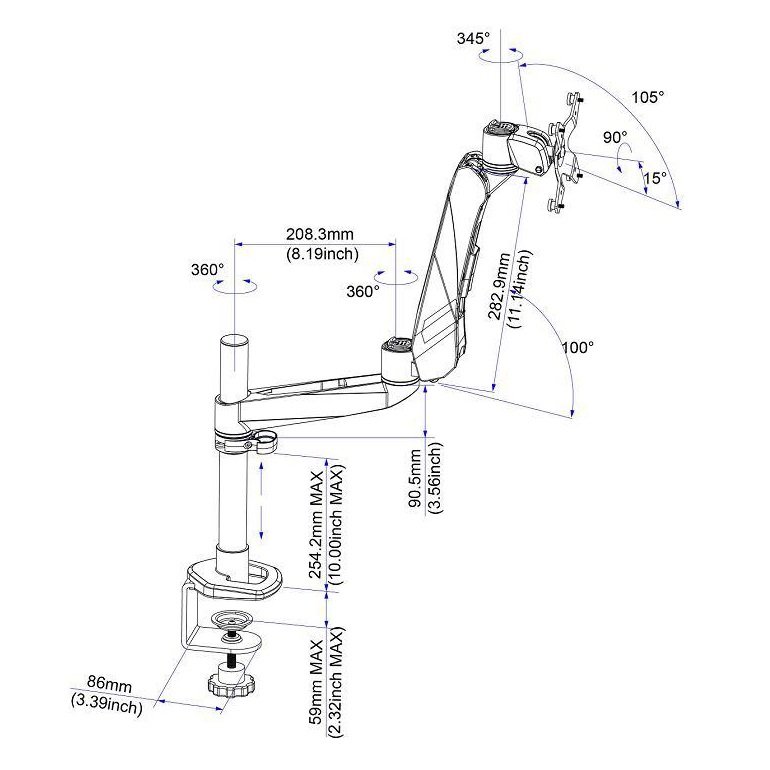

Weight Capacity: | Supports 4.4 - 19.8lbs (2 - 9kgs) |
 |
Tilt: | +90° / -15° |
 |
Rotation: | 360° |
 |
Swivel: | Max 360° |
 |
Mounting Pattern: | VESA compliant: 75x75 and 100x100 |
 |
Maximum extension: | 27.1" (688mm) |
Features
- Desk-mountable, available in clamp base and grommet base
- Clamp table thickness: 0.79"-5" (20-127mm);
Grommet table thickness: 0.79"-5" (20-127mm), Hole Diameter: 0.39"-1.97" (10-50mm) - Pole length: 11.8" (300mm).
- Expandable to support two monitors with additional arms. Click here for item# DM-C2SA3-C.
- Quick mount & quick release designs at three connecting points: stand, spring arm, and monitor end.
- Maximum adjustment rendered by tilting, swiveling, pivoting, and dynamic height adjustment.
- Swift and easy movements and adjustments
- 10.6" Height adjustment
- Solid Aluminum die-cast construction
- Space-saving with its compact design
- Smooth extension (27.1") to achieve ideal viewing angles
- Clean look with minimal hardware visible from underside of work surface
- Rotation 360° and side-to-side pivot
- Neat and efficient cable management
- Maximum productivity and supreme ergonomic comfort
- Easy installation and dis-installation.
Accessories

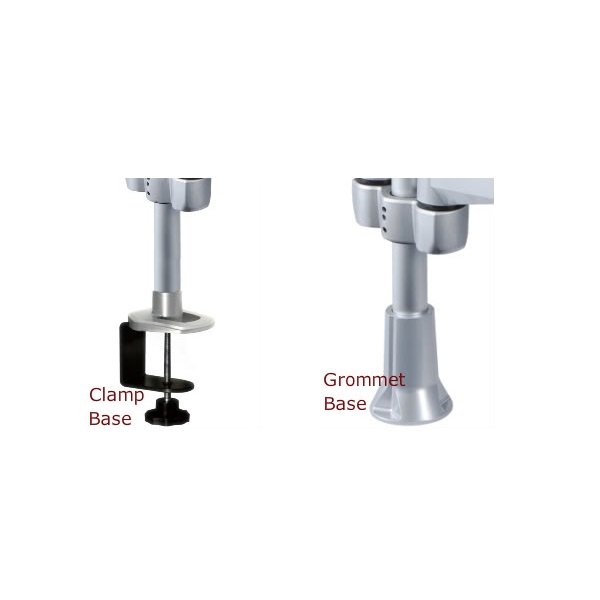

Base Types
Product Description
Monitor Stand w/ Spring Arm & Quick Release - Expandable integrates fashion with function, delivering ergonomic performance with style. With a weight capacity of 19.8lbs, this desk mount features 360-degree monitor rotation, 105-degree tilt, 360-degree swivel, and 10.6-inch vertical distance height adjustments. The desk arm is designed with cable management to provide neat desk space. The monitor mount is ideal for classrooms, offices, homes, public area, industrial settings, production line, and many more. This LCD desktop mount renders maneuverability, flexibility and a chic look that is sure to flatter your monitor. The single monitor mount boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The Cotytech monitor arm has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of monitor mounts.
Downloads
Installation Manual These downloads require Adobe Reader. To get Adobe Reader to click here.
