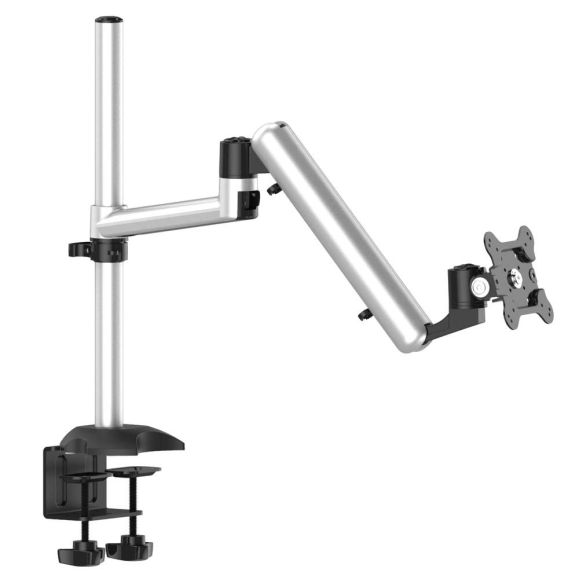

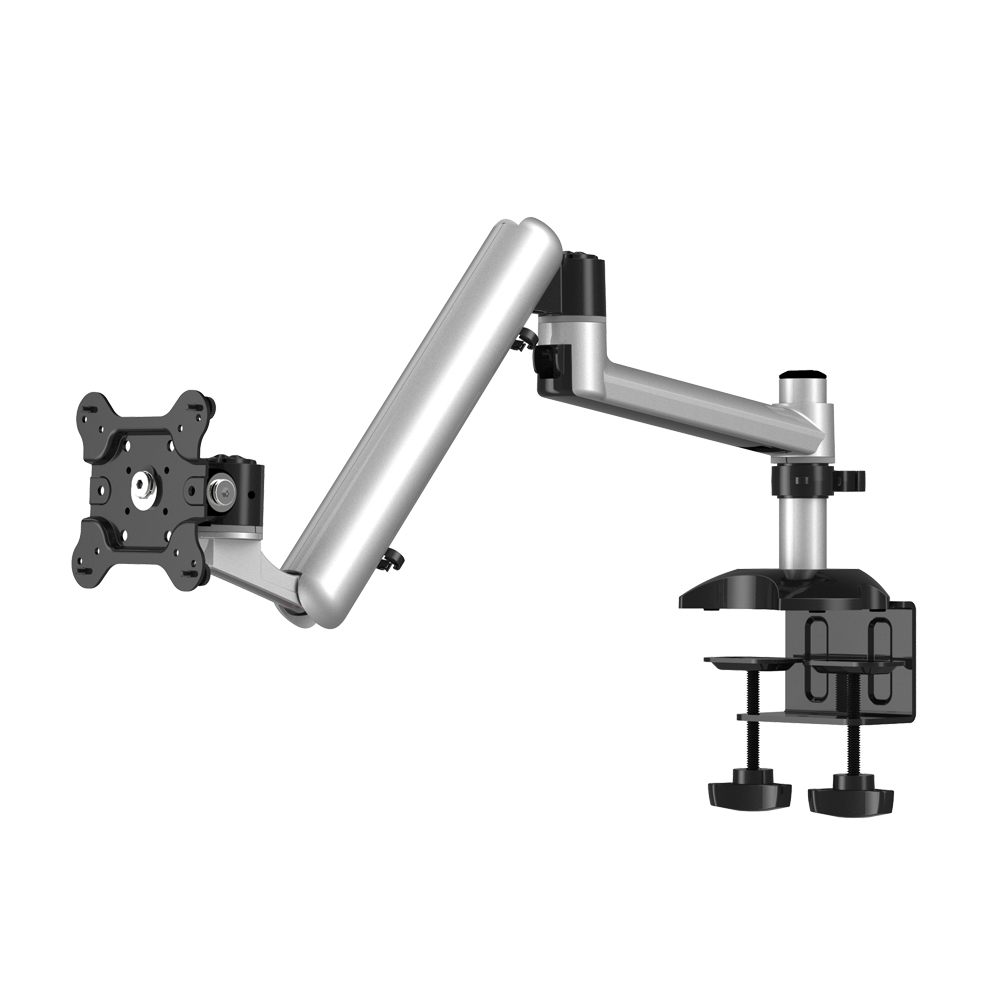

Monitor Stand Full Motion w/ Quick Release
Specifications
 |
Weight Capacity: | Supports 2.2 - 9 lbs, optional 5.5 - 17.6 lbs or 17.6 - 29.7 lbs spring arms available |
 |
Tilt: | +90° / -25° (provided there are no obstacles) |
 |
Rotation: | 90° (portrait or landscape) |
 |
Swivel: | Max 360° |
 |
Mounting Pattern: | VESA compliant: 75x75 and 100x100, with option choice of 200x200 |
 |
Maximum extension: | 4.3" - 30" (109mm - 762mm) |
Features
- Fits up to 32" monitors;
- Bracket, swivel arm and spring arm feature quick release design: only a matter of a 'click' to get connected and with the push of a button then lift off to get disconnected
- Desk-mountable, 2-in-1 base: can be used as either a clamp base or a grommet base
- Clamp Base fits table thickness: 0.8" - 2.7" (10 - 69mm); Designed with double clamp for extra sturdiness
- Grommet Base fits table thickness: 0.8" - 3.9" (20 - 100mm) and hole diameter: 0.5" - 2.3" (12 - 60mm)
- Large base area (6.5" W x 5" D) for most secured installation (optimal solution for curved table edge)
- Pole length: 11.8" (300mm); optional longer pole available in 19.7", 27.6" and 43.3"
- Optional 17.6 - 29.7 lbs weight-bearing spring arm makes it an excellent solution for the new iMac version that comes with VESA built-in
- Expandable to support multiple monitors by obtaining additional parts
- Height Adjustment Range being the maximum in the market: 16.6" (422mm) dynamically, or, 70° upward and 50° downward, a great solution as a sit-stand mount
- Maximum adjustment rendered by tilting, swiveling, pivoting, and dynamic height adjustment.
- Swift and easy movements and adjustments
- Solid Aluminum die-cast construction
- Space-saving with its compact design
- Smooth extension (up to 30") to achieve ideal viewing angles
- Clean look with minimal hardware visible from underside of work surface
- Rotation 90° and side-to-side pivot
- May be used to support a laptop by using the Mountable Laptop Tray
- Neat and efficient cable management
- Maximum productivity and supreme ergonomic comfort
- Easy installation and dis-installation.
Accessories
Product Description
The Monitor Stand Full Motion w/ Quick Release integrates fashion with function, delivering ergonomic performance with style. Weight capacity of 9 lbs for each monitor(other options available) and optional higher weight capacity, this desk mount features 90-degree monitor rotation, 115-degree tilt, 360-degree swivel, and 16.6-inch vertical distance height adjustments. The desk arm is designed with cable management to provide neat desk space. The monitor mount is ideal for classrooms, offices, homes, public area, industrial settings, production line, and many more. This LCD desktop mount renders maneuverability, flexibility and a chic look that is sure to flatter your monitor. The multi-monitor mount boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The Cotytech monitor arm has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of monitor mounts. Please note that monitors are not included.
