Monitor Stand - Expandable w/ Spring Arm Silver
 |
Weight Capacity: | Supports 8.4 - 17.8lbs (3.8 - 8.1kgs) Option Available For 17.6 - 30.8lbs (8 - 14kgs) |
 |
Tilt: | +90° / -45° |
 |
Rotation: | 360° |
 |
Swivel: | Max 180° |
 |
Mounting Pattern: | VESA compliant: 75x75 and 100x100 |
 |
Maximum extension: | 22" (559mm) |
Features
- Desk-mountable, available in clamp base and grommet base
- Clamp table thickness: 0.2"-2.21" (5-55mm);
Grommet table thickness: 0.2"-2.21" (5-55mm), Hole Diameter: 0.39"-6" (10-152mm) - Pole length: 7.87" (200mm)
- Expandable to support two monitors with additional arms. The longer pole may be needed depending on monitor size
- Spring arm design makes extension, retraction and height adjustments dynamically and easily
- Maximum adjustment rendered by tilting, swiveling, rotation and dynamic height adjustment
- Swift and easy movements and adjustments

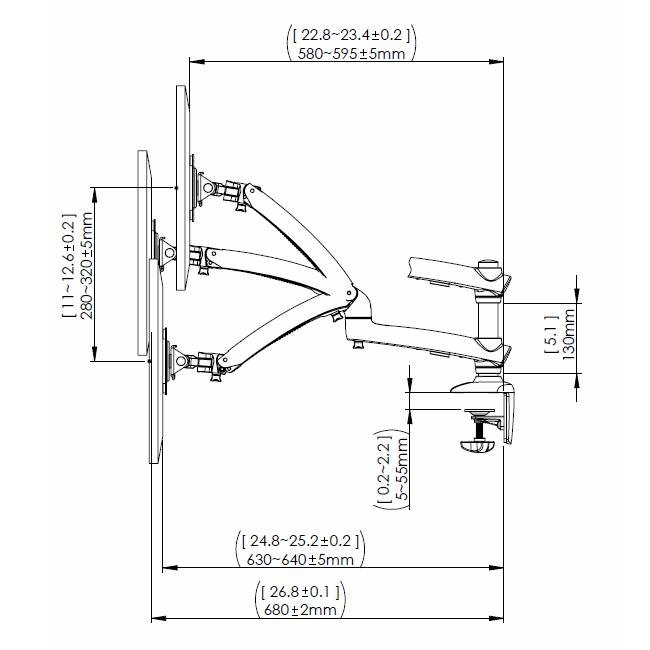

- Height Adjustment Range: 5.1" at 7.87" pole (16.95" at 19.7" pole), 11" - 12.6" at monitor
- Solid Aluminum die-cast construction
- Space-saving with its compact design
- Smooth extension (up to 22") to achieve ideal viewing angles
- Clean look with minimal hardware visible from underside of work surface
- Rotation 360° and side-to-side pivot
- May be used to support a laptop by using the Mountable Laptop Tray
- Neat and efficient cable management
- Maximum productivity and supreme ergonomic comfort
- Easy installation and dis-installation
- Color: Metallic Silver (please contact us for a special order of white or red color)

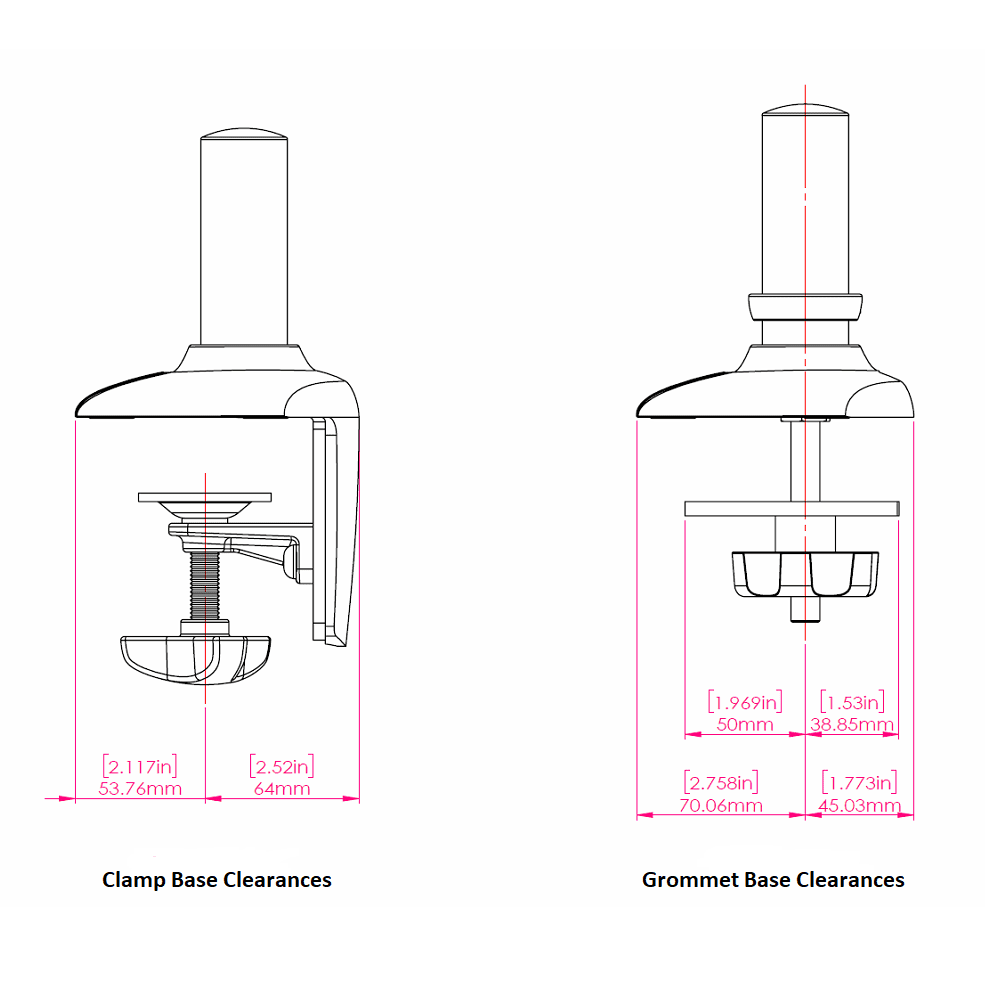

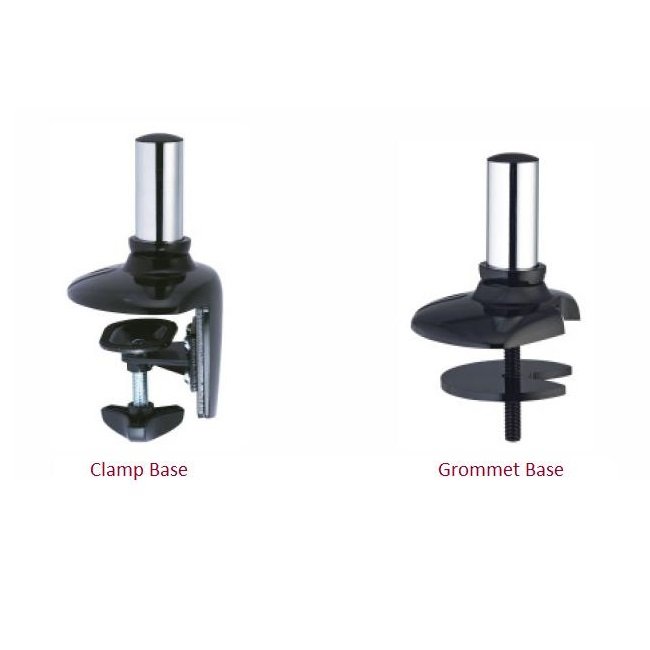

Base Types
Product Description
Monitor Stand - Expandable w/ Spring Arm Silver integrates fashion with function, delivering ergonomic performance with style. With a weight capacity of 17.8lbs (option available for 17.6 - 30.8lbs), this desk mount features 360-degree monitor rotation, +90 / -45 degree tilt, 180-degree swivel, and vertical distance height adjustments. The desk arm is designed with cable management to provide neat desk space. The monitor mount is ideal for classrooms, offices, homes, public area, industrial settings, production line, and many more. This LCD desktop mount renders maneuverability, flexibility and a chic look that is sure to flatter your monitor. The single monitor mount boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The Cotytech monitor arm has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of monitor mounts.
More Images
Q & A
Q: Will it work with the new iMac with VESA Adapter built-in version?
A: For the 21.5" the answer is 'yes.' Please make sure it's the version with a VESA adapter built-in. As for the 27" you will need to choose the option of 'Weight Capacity Increase or Not' with the answer of 'Yes' then it will work.
Installation Video
