|Fits most:||32" to 50" flat panels|
|Weight Capacity:||Supports 17.6lbs min - 29.7lbs max weight|
|Tilt:||Forward 25° / Backward 90°|
|Mounting profile:||4.3" (109mm) Minimum Depth From Wall|
|Maximum extension:||15.7" (400mm)|
|Mounts on Studs:||Single-Stud or Double-Stud|
|Mounting Pattern:||Universal & VESA compliant: 100x100 to 400x400|
You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your TV is different and we are very glad to help you out!

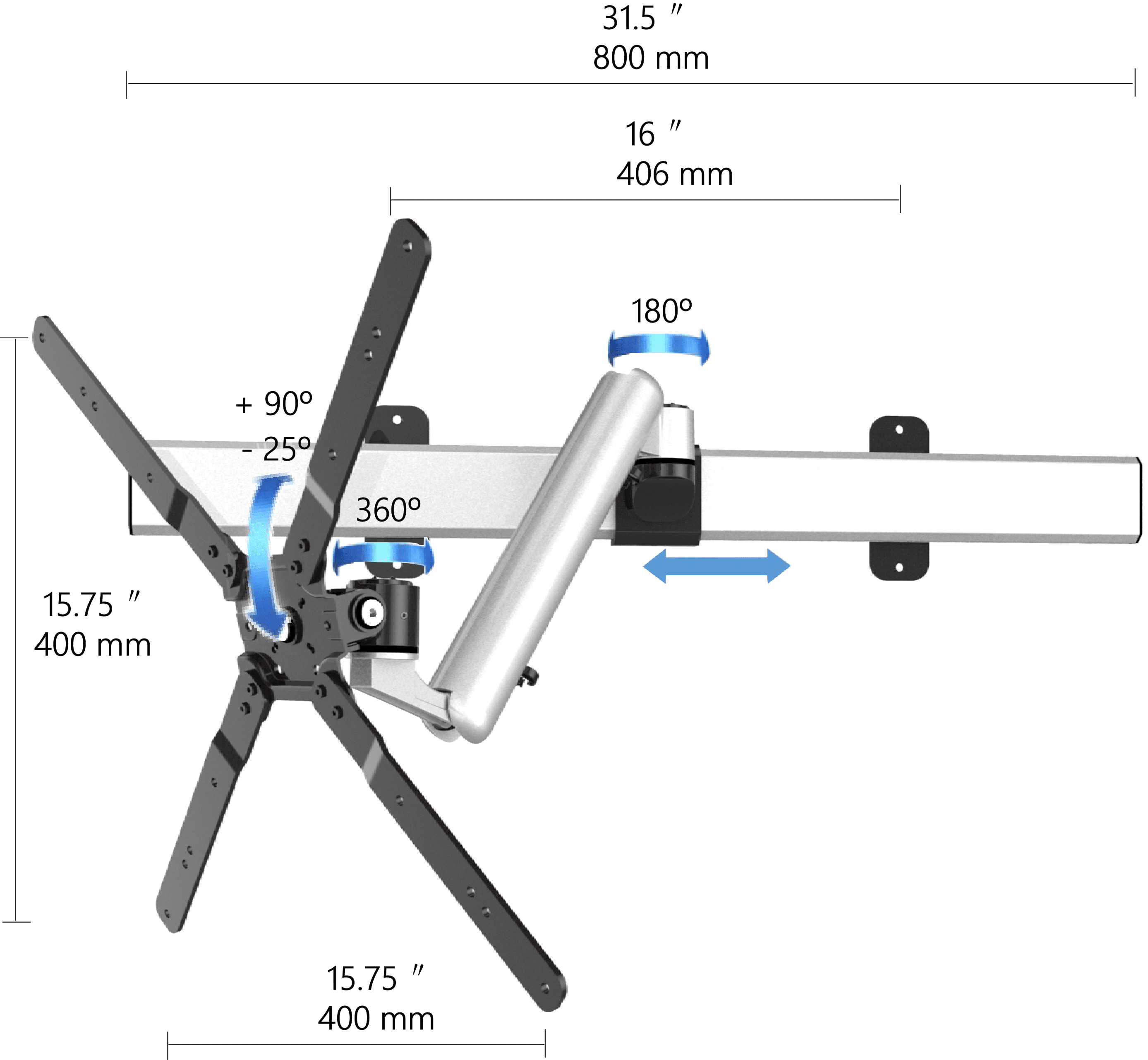

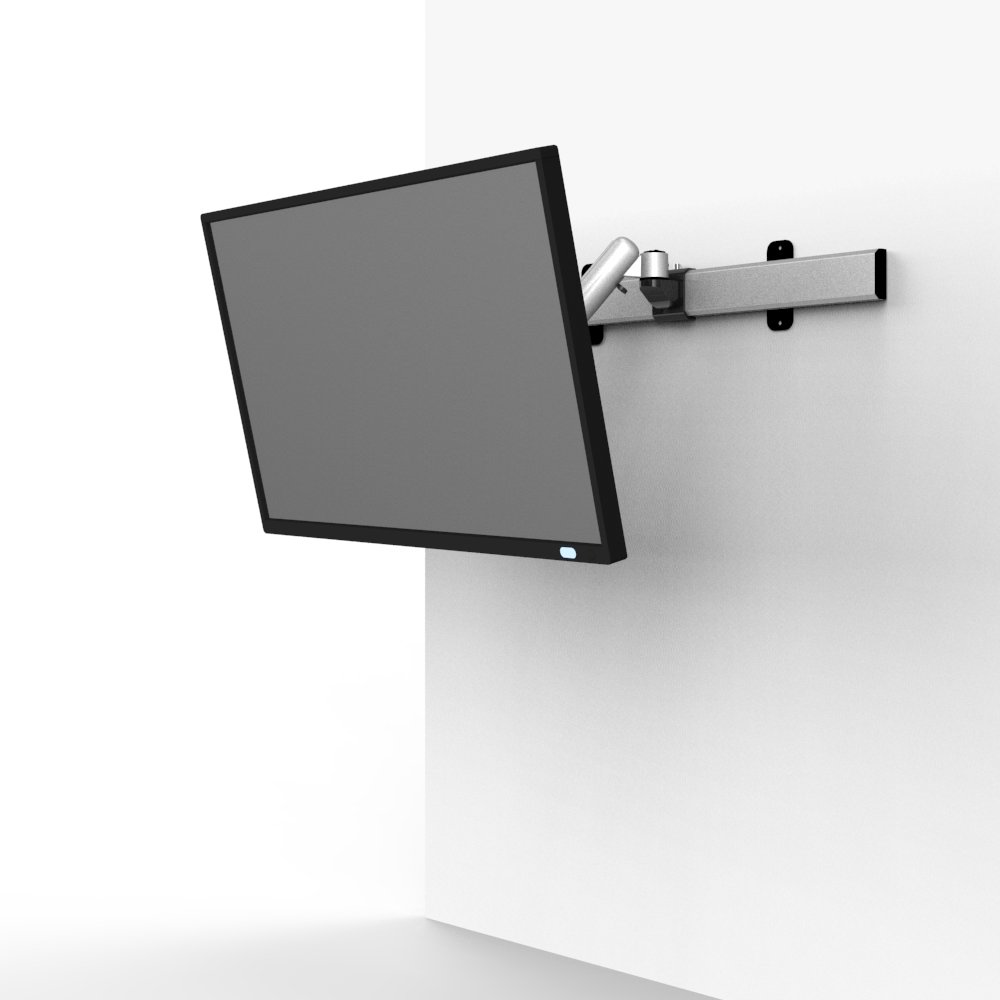

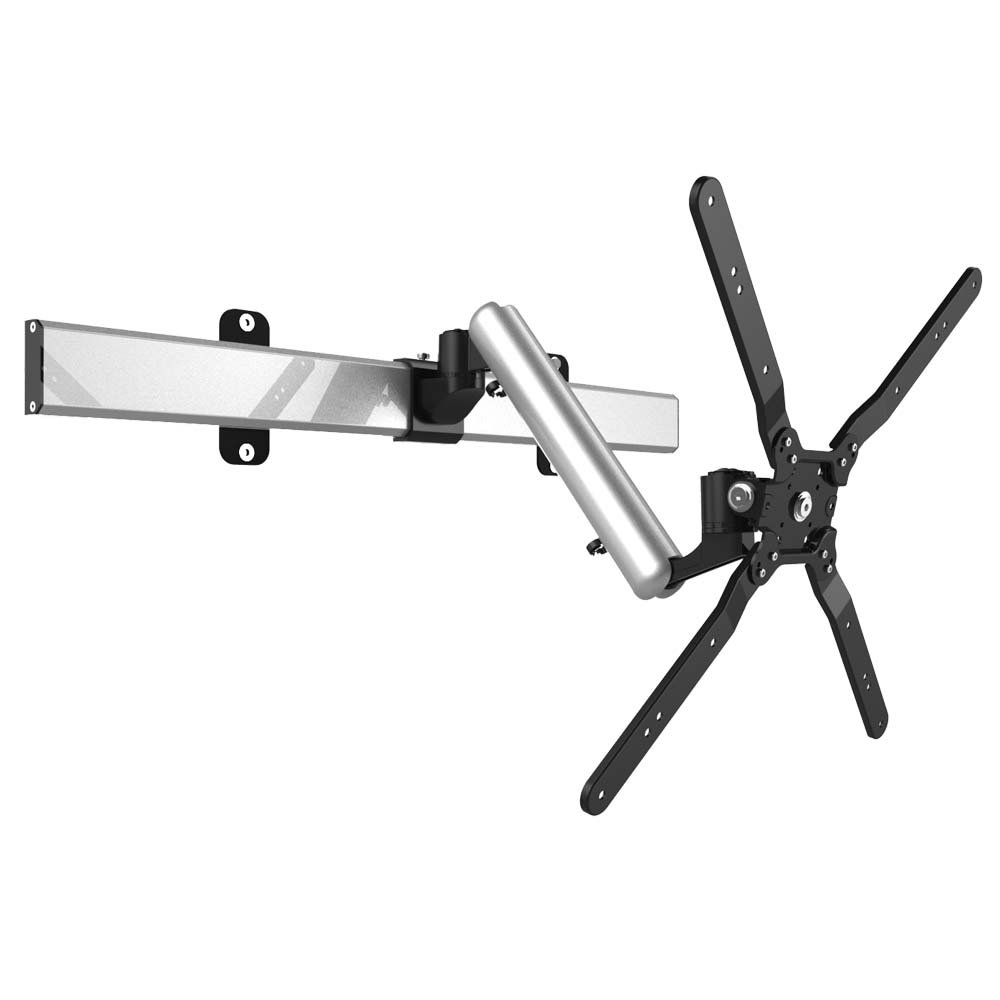

The new Full Motion Rotating TV Wall Mount - Spring Arm w/ Two Orientations is a completely full motion mount for small to mid size TV, with weight capacity of 17.6lbs min - 29.7lbs max, featuring 115 degree tilt, 180 degree swivel, 15.7 inch full extension, 17.7" range of height adjustment and 90 degree rotation. This flat screen full motion TV wall mount is our latest breakthrough in flat panel mount design. The TV mount boasts integrated strength through the latest engineering technology, and is tested for durability in our offshore manufacturing plant. The Cotytech wall mount has been built with the end user in mind, and features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. If you need more information about how to select TV wall mounts please click here.
