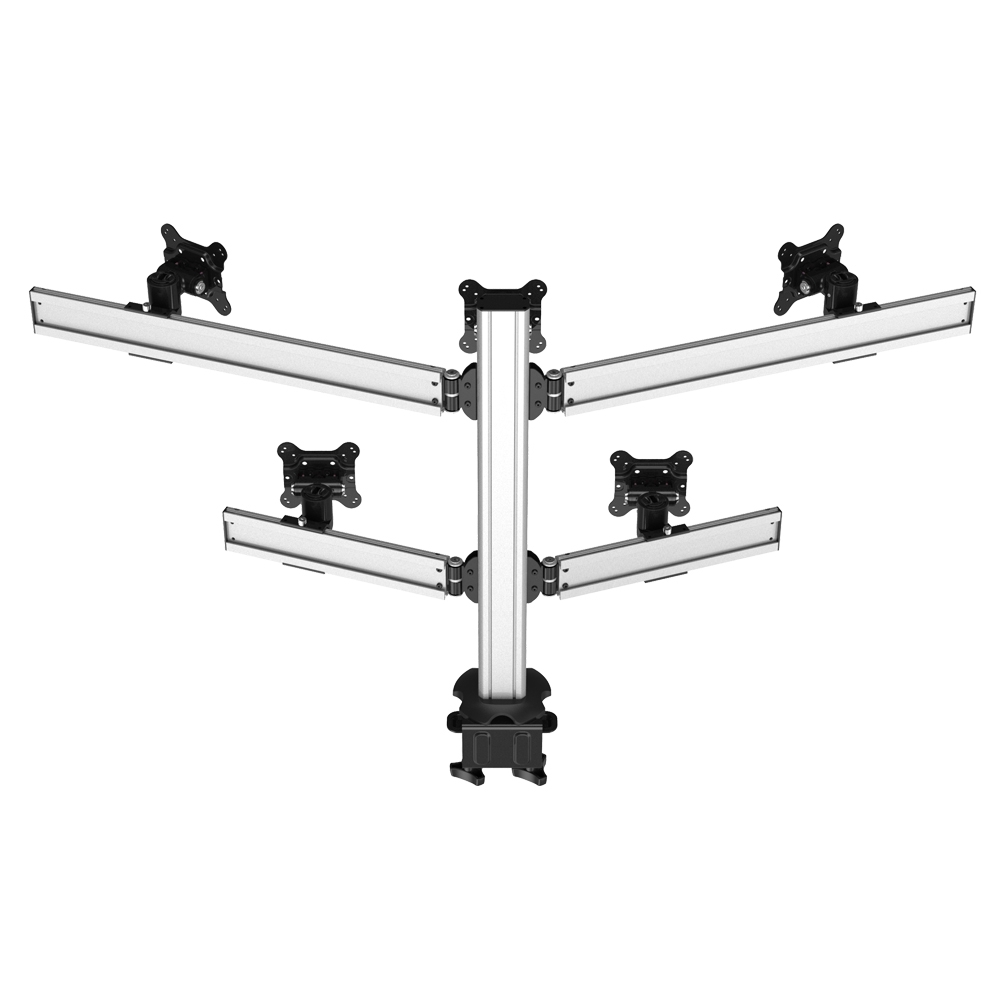

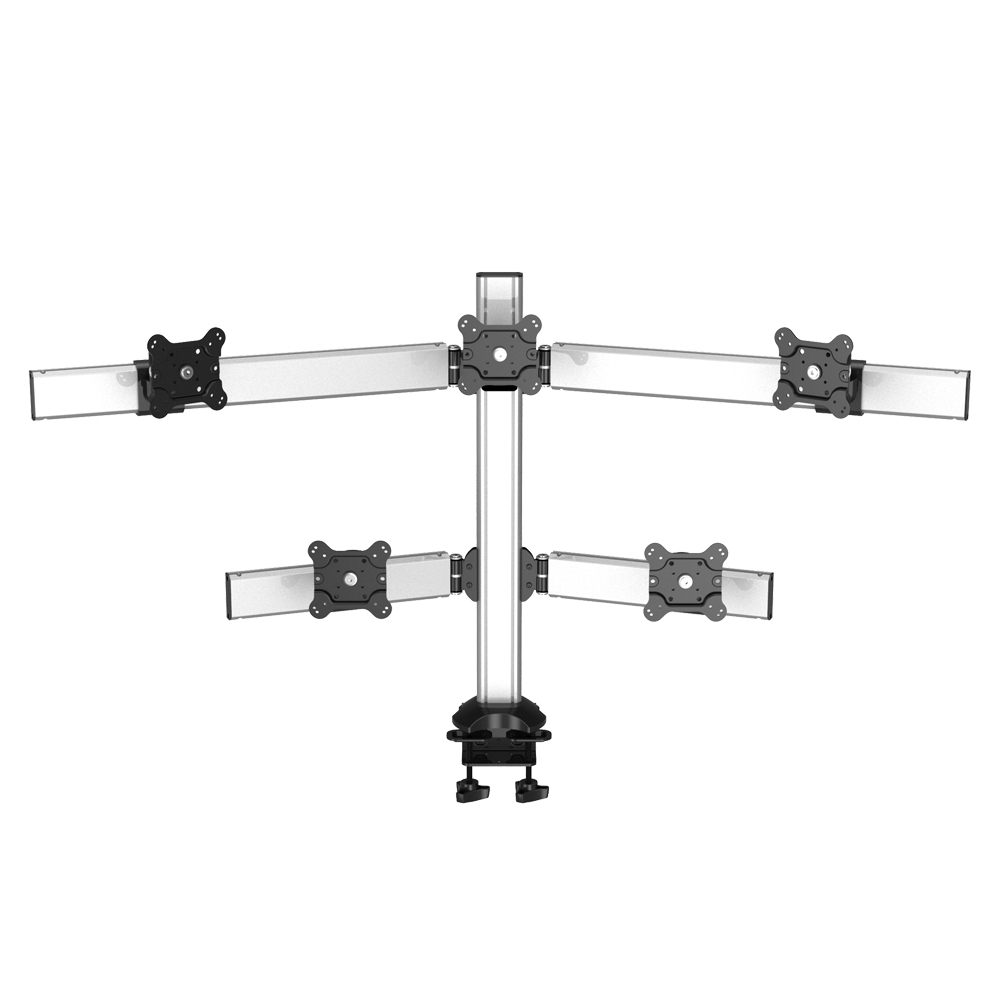

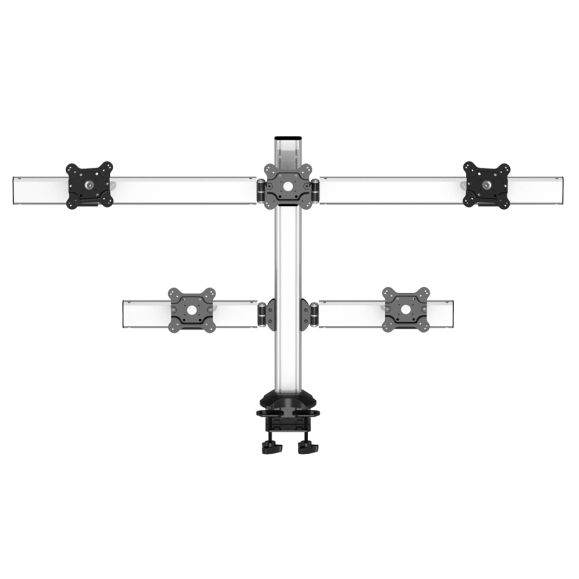

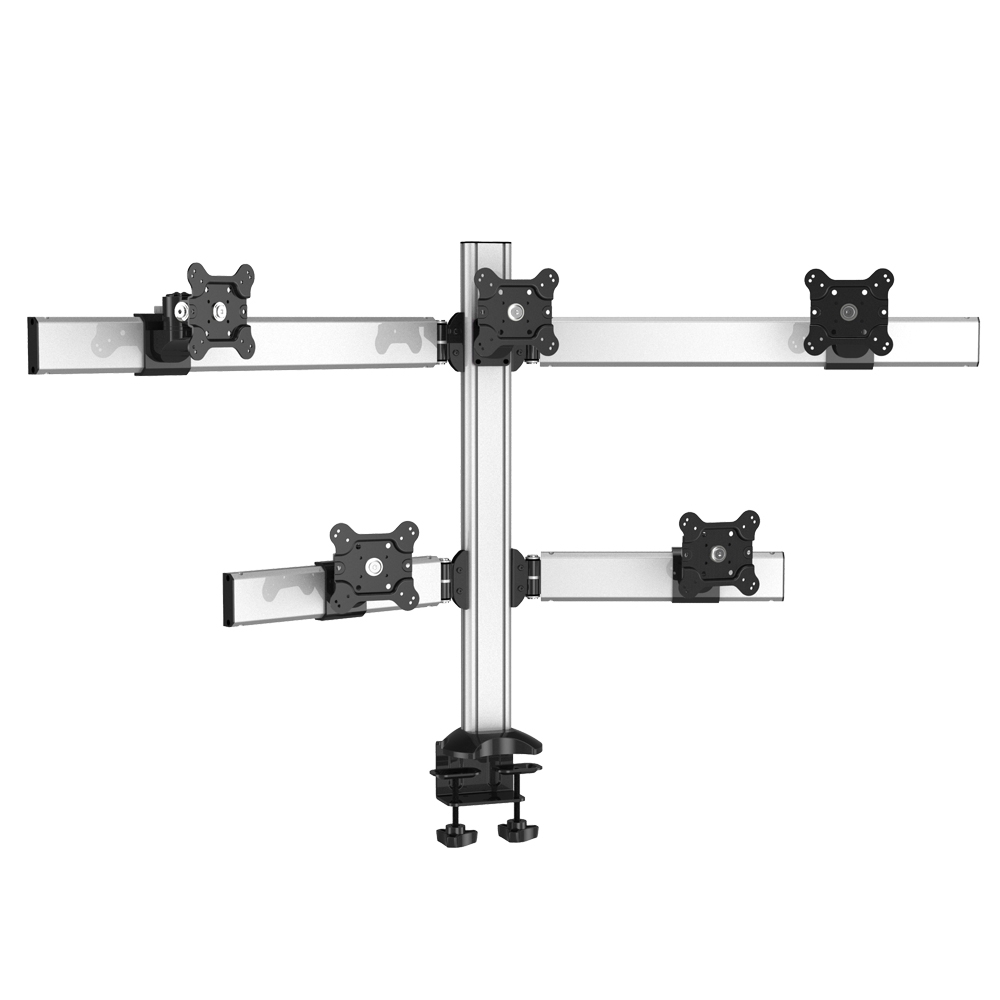

Five Monitor Desk Mount Pyramid or Reverse w/ Quick Release
Specifications
 |
Weight Capacity: | Supports 110lbs (50kgs) in total |
 |
Tilt: | +90° / -25° (provided there are no obstacles) |
 |
Rotation: | 90° (portrait or landscape) |
 |
Swivel: | Max 360° at the bracket provided there are no obstacles; Max 12° inward at the side wings |
 |
Mounting Pattern: | VESA compliant: 75x75 and 100x100, with option choice of 200x200 |
 |
Maximum extension: | 4" (102.9mm) |
Features
- Desk mountable; Comes with a 2-in-1 base, can be used as either a clamp base or a grommet base

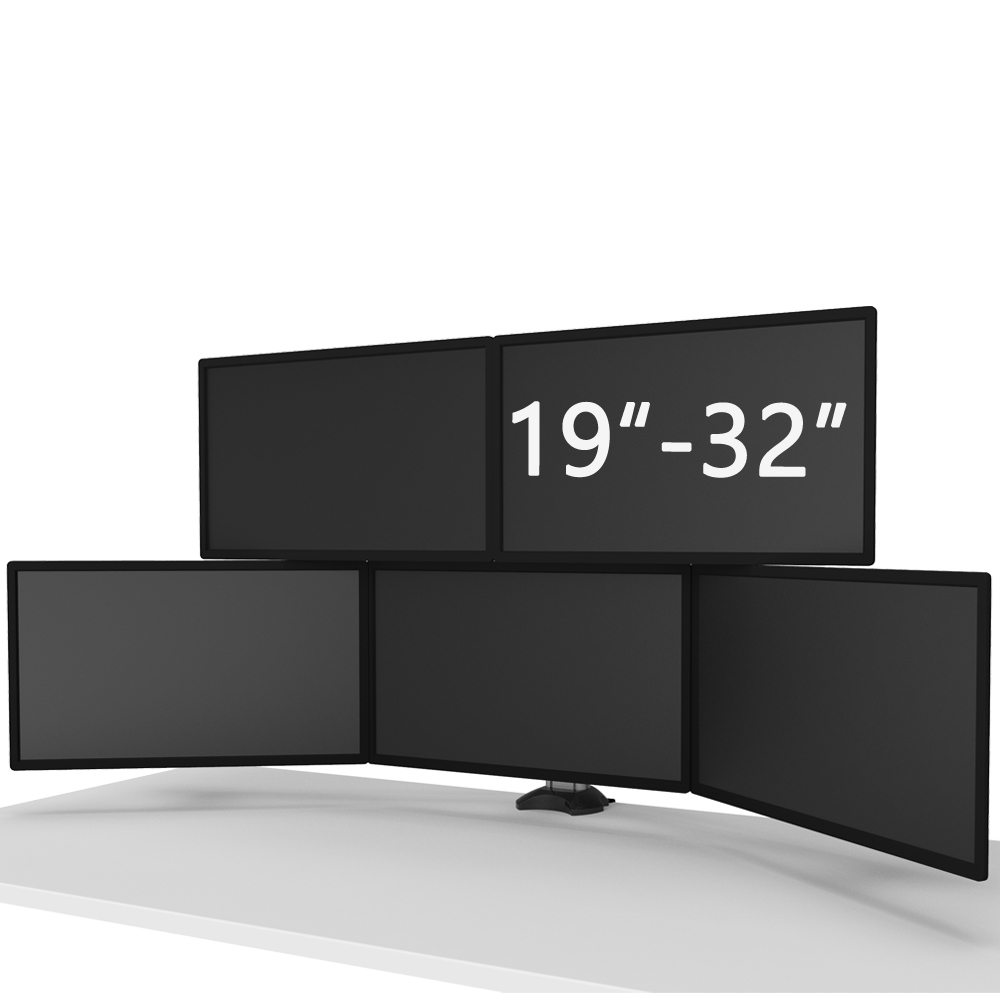

- Supports five screens placed in two rows, pyramid or reverse pyramid, up to 32"
- Clamp table thickness: 0.8" - 2.7" (10 - 69MM)
- Grommet table thickness: 0.8" - 3.9" (20 - 100MM), Hole Diameter: 0.5" - 2.3" (12 - 60MM)
- Distances between the screens in the same row can be easily adjusted by sliding along the horizontal beams
- Vertical beam length: 27.6" (700mm), longer beam option of 43.3" (1100mm) available
- Three-screen side wing length: 24.8" each (630mm); Two-screen side wing length: 13.8" (350mm)
- Brackets feature a quick release design: only a matter of a 'click' to get connected, and with the push of a button, then lift off to get disconnected
- Maximum adjustment is rendered by tilting, swiveling, and rotating
- Swift and easy movements and adjustments
- Height Adjustment Range: 27.6" or 43.3" manually at the vertical beam, depending on the length of the beam selected
- Solid Aluminum die-cast construction beam, side wings & brackets; heavy-duty metal black stand base
- Space-saving with its compact design
- Clean look with minimal hardware visible from the underside of the work surface
- Rotation 90° for easy switching between portrait and landscape orientation
- May be used to support a laptop by using the Mountable Laptop Tray
- Neat and efficient cable management
- Maximum productivity and supreme ergonomic comfort
- Easy installation and disinstallation
- Color: Metallic Silver & Black
Product Description
Elevate your workspace with the Five Monitor Desk Mount Pyramid or Reverse with Quick Release, a stylish and highly functional solution for your LCD and LED screens. This versatile stand boasts a 360° swivel function and an impressive 110 lbs (50kg) weight capacity, making it ideal for diverse environments including offices, classrooms, homes, and public areas. Achieve optimal viewing angles with its +90° / -25° tilt actions, while integrated cable management keeps your desk neat and clutter-free. Designed with user convenience in mind, this durable stand offers easy installation and robust engineering, ensuring both flexibility and a modern aesthetic that complements any monitor setup.
