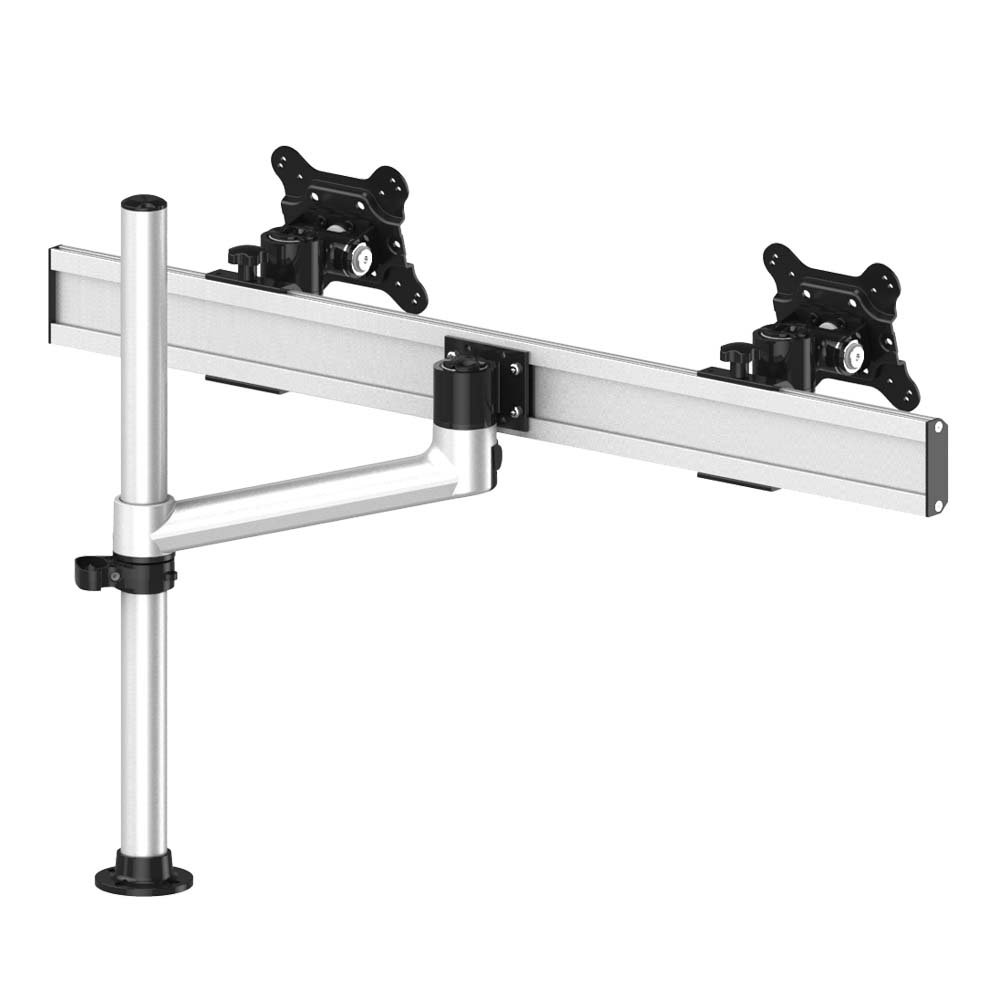

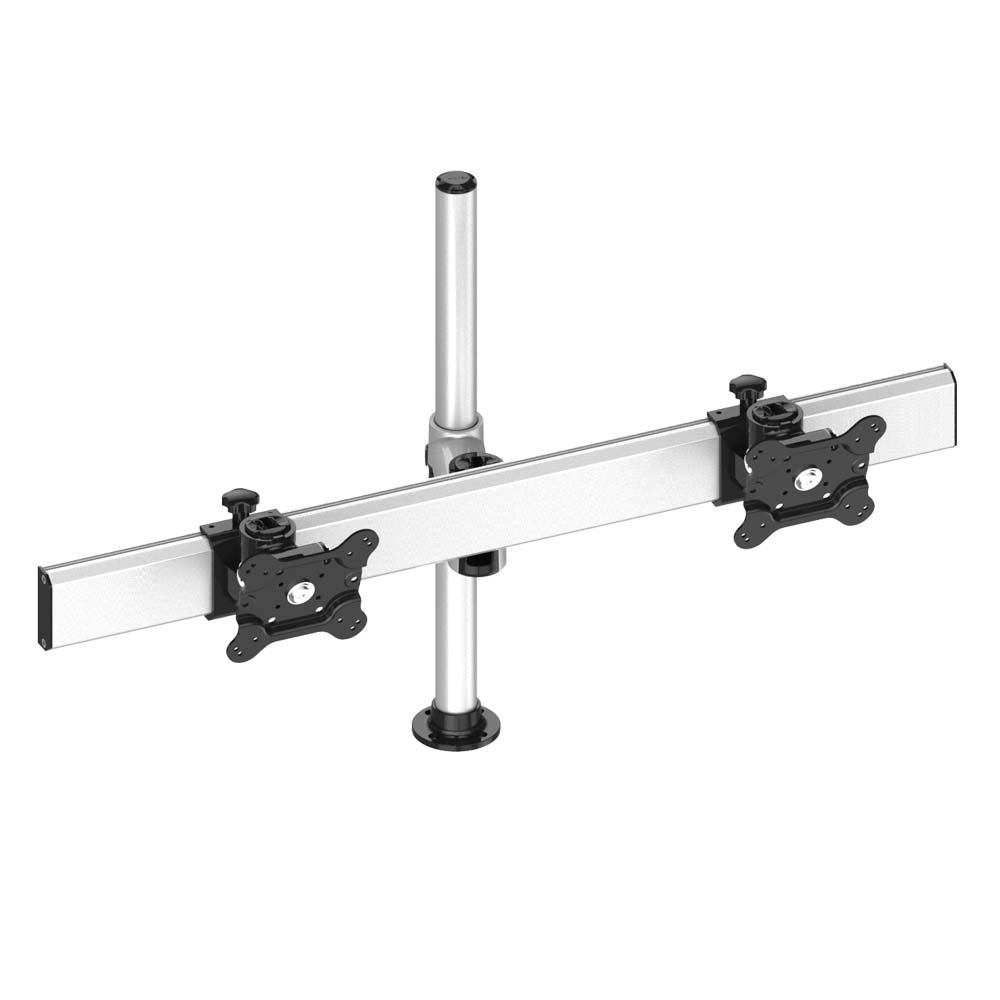

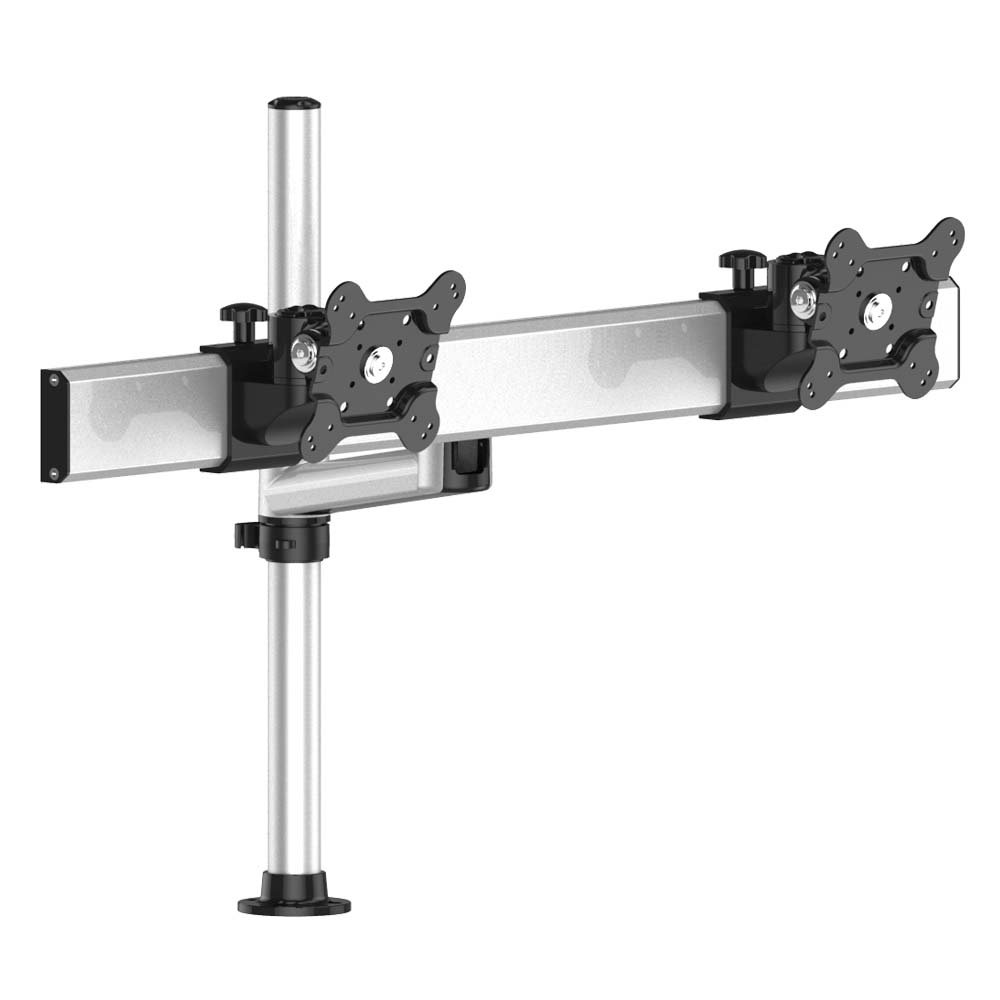

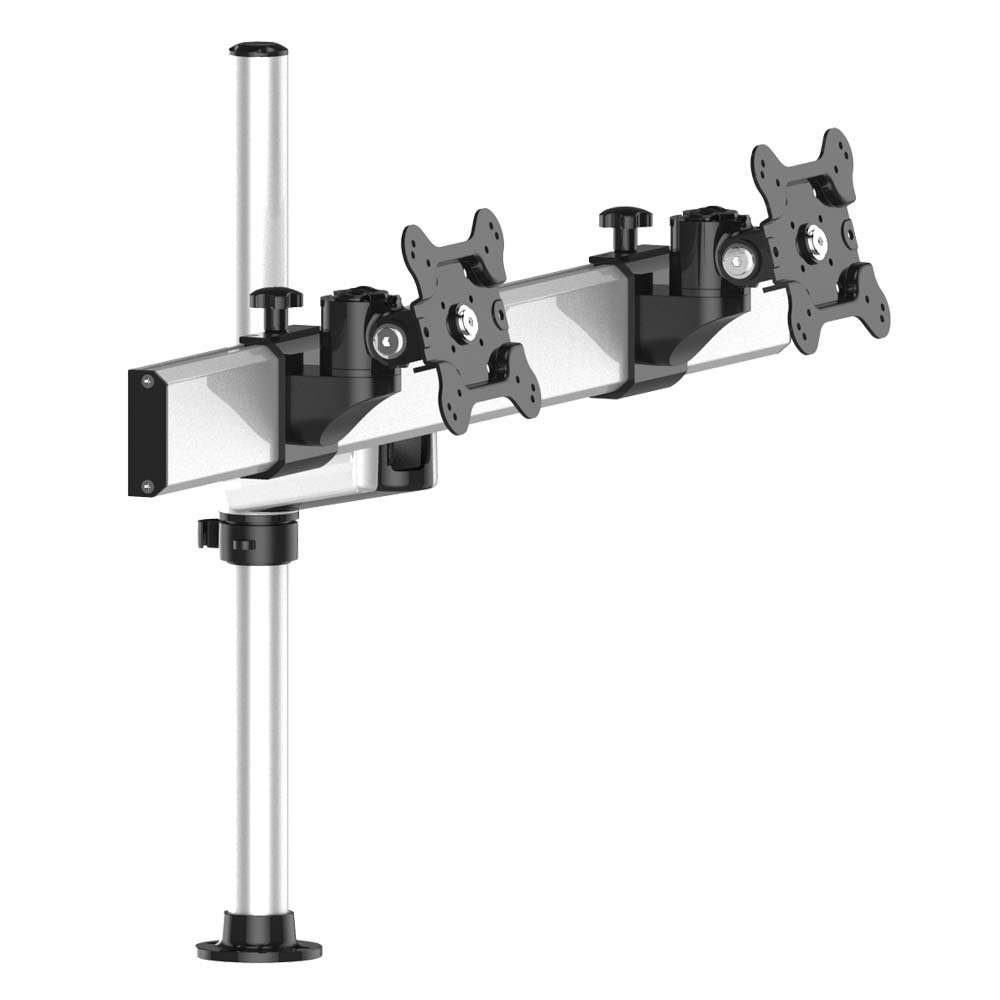

Dual Track Rail Mount Side-by-Side w/ Quick Release Single Arm

Specifications

	Weight Capacity:	Supports 66lbs (30kgs) in total
	Tilt:	+90° / -25° (provided there is no obstacles)
	Rotation:	90° (portrait or landscape)
	Swivel:	Max 360°
	Mounting Pattern:	VESA compliant: 75x75 and 100x100
	Maximum extension:	4" - 9.3" (102.9mm - 235mm)

Features

• 7-in-1 base works for:
  1) Single T Slotted Channel
  2) 1.5" on Center T Slotted Channel
  3) 1" on Center T Slotted Channel
  4) 2" on Center T Slotted Channel
  5) 3" on Center T Slotted Channel
  6) Screw onto Desk Surface
  7) Bolt through 0.4" - 2.36" (10 - 60 mm) Hole
  You may get quite creative to make this mount work in an environment that is hard to find a solution.
• Supports two screens placed next to each other that weigh no more than 66 lbs in total (without stand), average screen width no more than 31.5"
• Pole length: 19.7"; Longer pole options available: 27.6" and 43.3"
• Dual monitor crossbar length: 31.5"
• Brackets and swivel arm feature quick release design: only a matter of a 'click' to get connected and with a push of a button then lift off to get disconnected
• Maximum adjustment rendered by tilting, swiveling, rotation and optional dynamic height adjustment
• Swift and easy movements and adjustments
• Height Adjustment Range: 19.7" manually at the pole or 9.4" dynamically with Front-end Adjuster option
• Solid Aluminum die-cast construction pole & bracket; heavy duty metal black stand base
• Space-saving with its compact design
• Clean look with minimal hardware visible from underside of work surface
• Rotation 90° and side-to-side pivot
• Neat and efficient cable management
• Maximum productivity and supreme ergonomic comfort
• Easy installation and dis-installation
• Color: Metallic Silver & Black

Product Description

The Dual Track Rail Mount Side-by-Side w/ Quick Release Single Arm is a stylish console mount that is perfect for your flat screens. With a 360° swivel function and a total weight capacity of 66lbs (30kg), this T-slot mount is ideal for control rooms, workstations, industrial environments, and many other applications. It keeps your operators productive, healthy, and as a result, happier. This mount has +90° / -25° tilt actions to ensure perfect viewing at any angle. The convenient display mount features robust cable management, providing a neat and tidy desk space with no visible cables. This comfortable and stylish LCD extrusion track mount offers perfect flexibility and is maneuverable to suit any viewing angle. It has a modern design, which fits in perfectly with the monitor's stylish looks. The 7-in-1 mount has been designed with the latest engineering technologies in mind; to ensure durability and strength. These quality mounts are manufactured in our offshore manufacturing plant, adhering to strict quality guidelines that enable us to deliver value to our customers. This handy console T-slot mount has been produced with the end-user in mind; and ensures easy installation features while simultaneously offering intuitive, practical and functional designs. Please note that the T-slot extrusion track in the picture is for demonstration only and is not included.

7-in-1 Base
