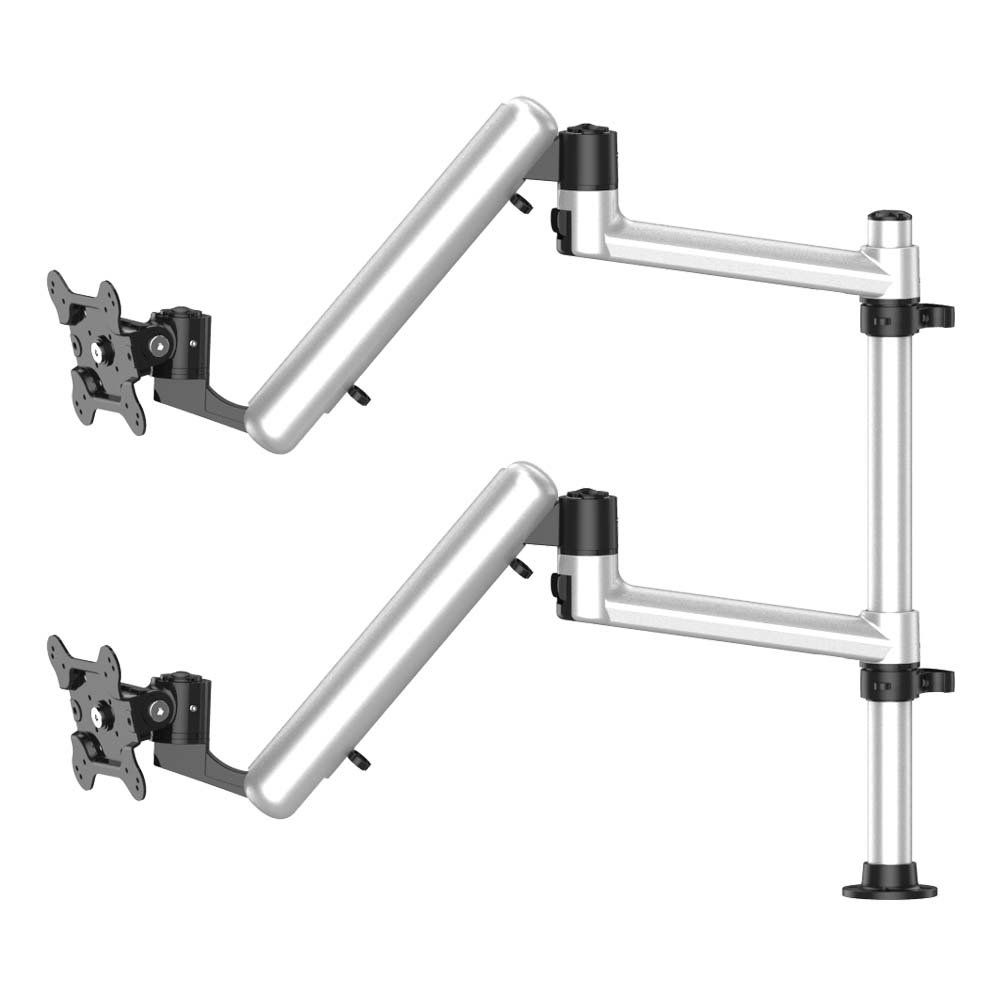

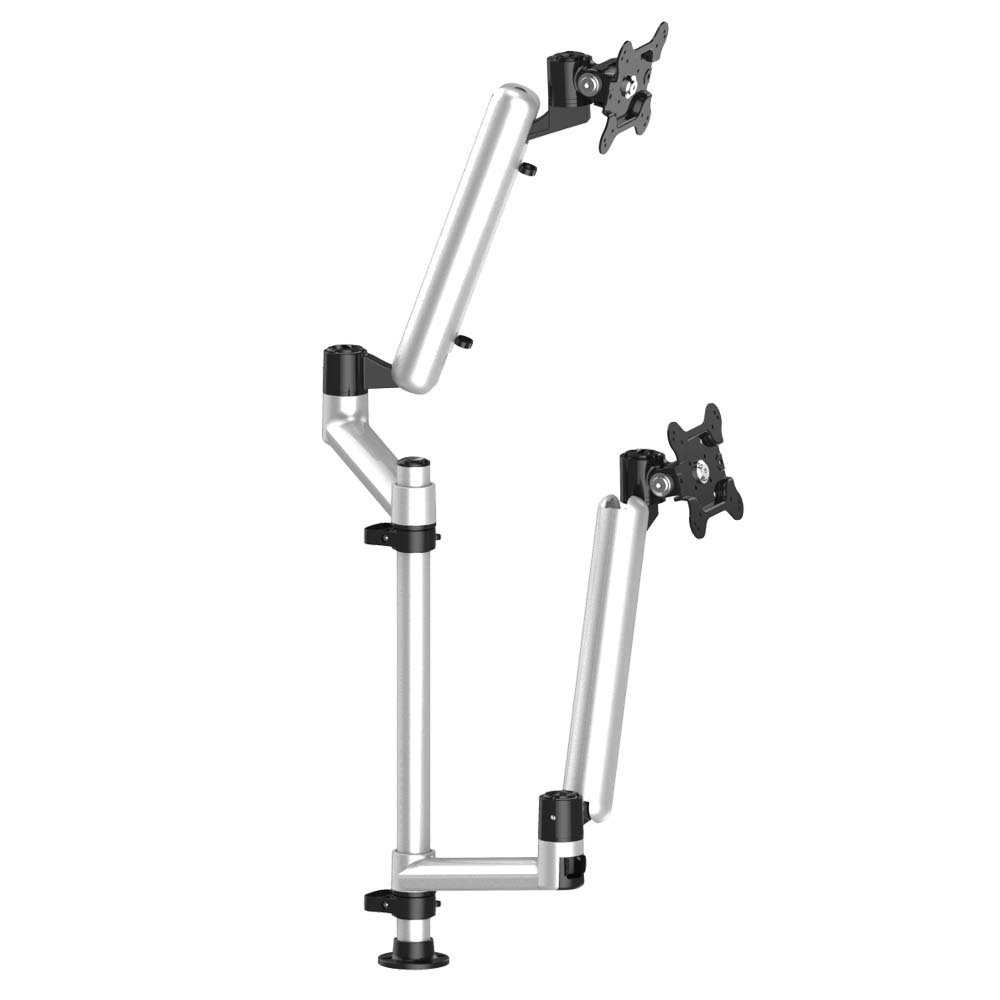

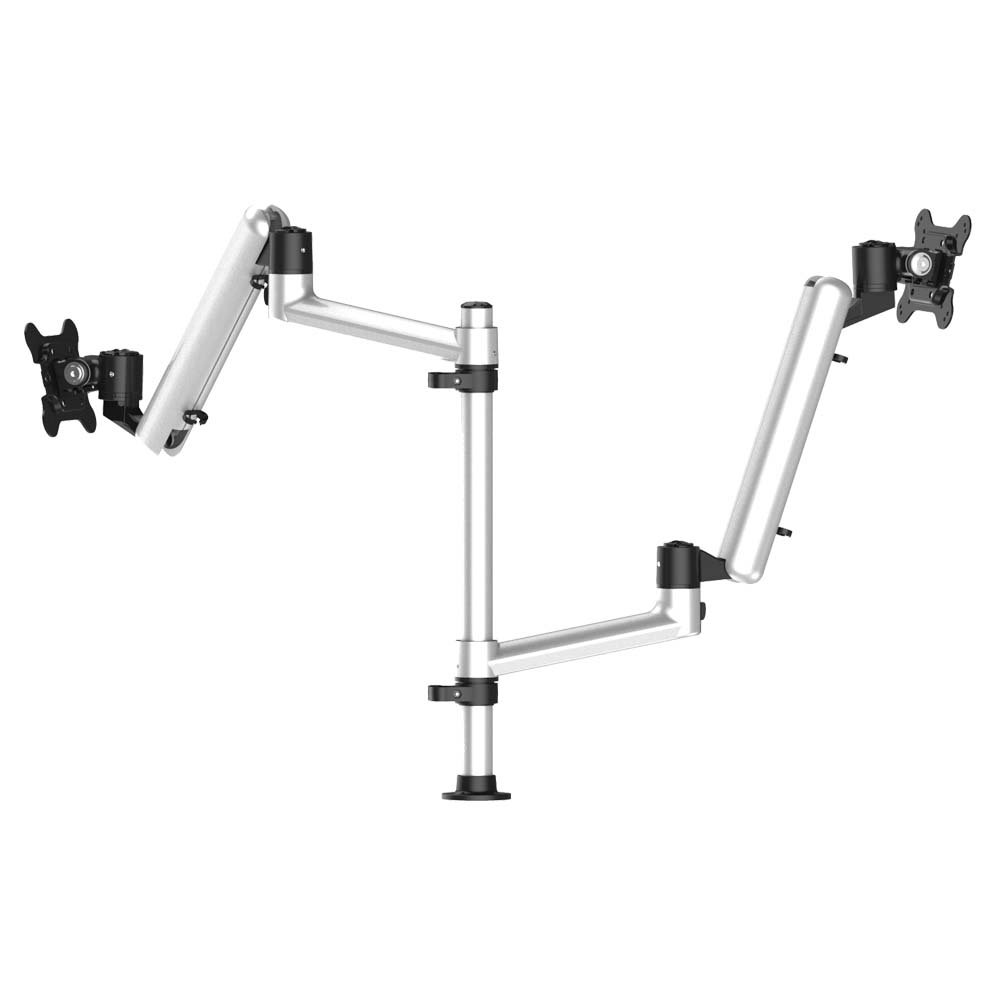

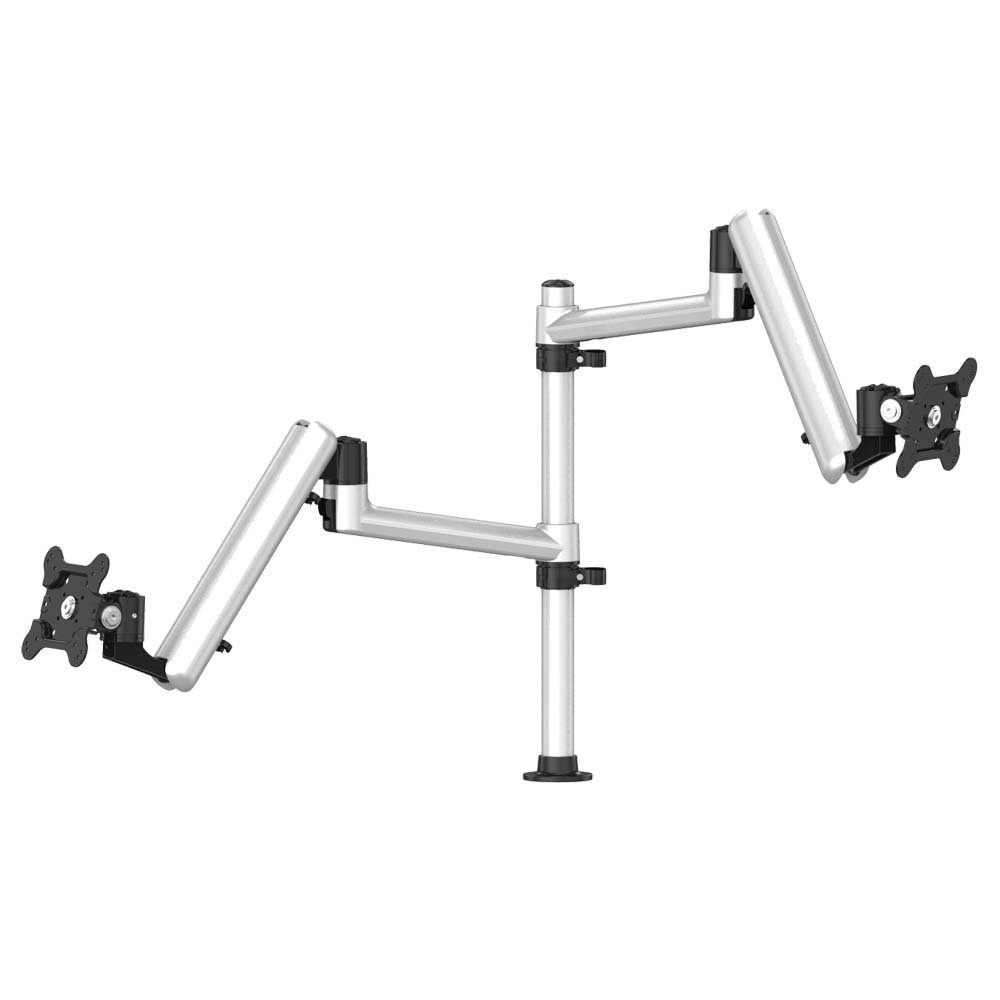

Dual Track Rail Mount Side by Side or Up & Down Full Motion
Specifications
 |
Weight Capacity: | Supports 2.2 - 9lbs for each monitor, optional 5.5 - 17.6lbs or 17.6lbs - 29.7lbs spring arms available |
 |
Tilt: | +90° / -25° (provided there is no obstacles) |
 |
Rotation: | 90° (portrait or landscape) |
 |
Swivel: | Max 360° |
 |
Mounting Pattern: | VESA compliant: 75x75 and 100x100, with option choice of 200x200 |
 |
Maximum extension: | 4.3" - 30" (109mm - 762mm) |
Features
- 7-in-1 base works for:

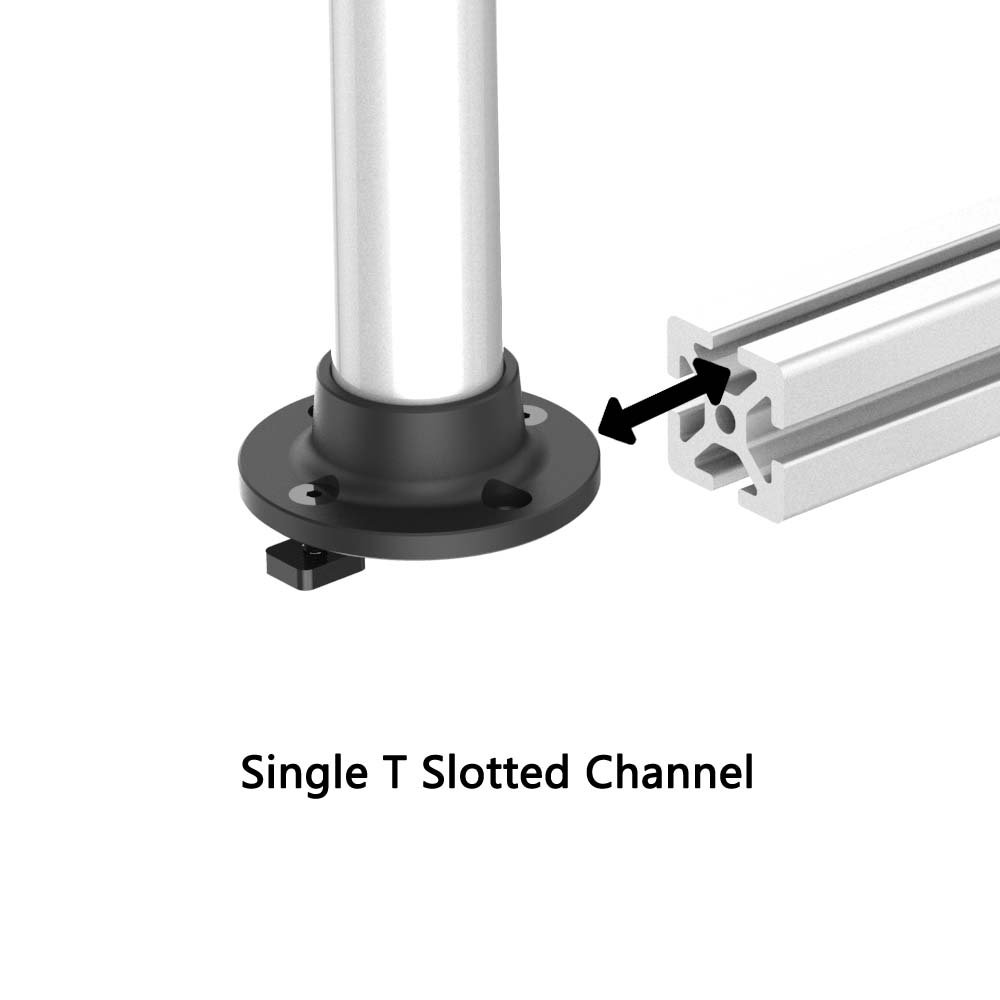

1) Single T Slotted Channel

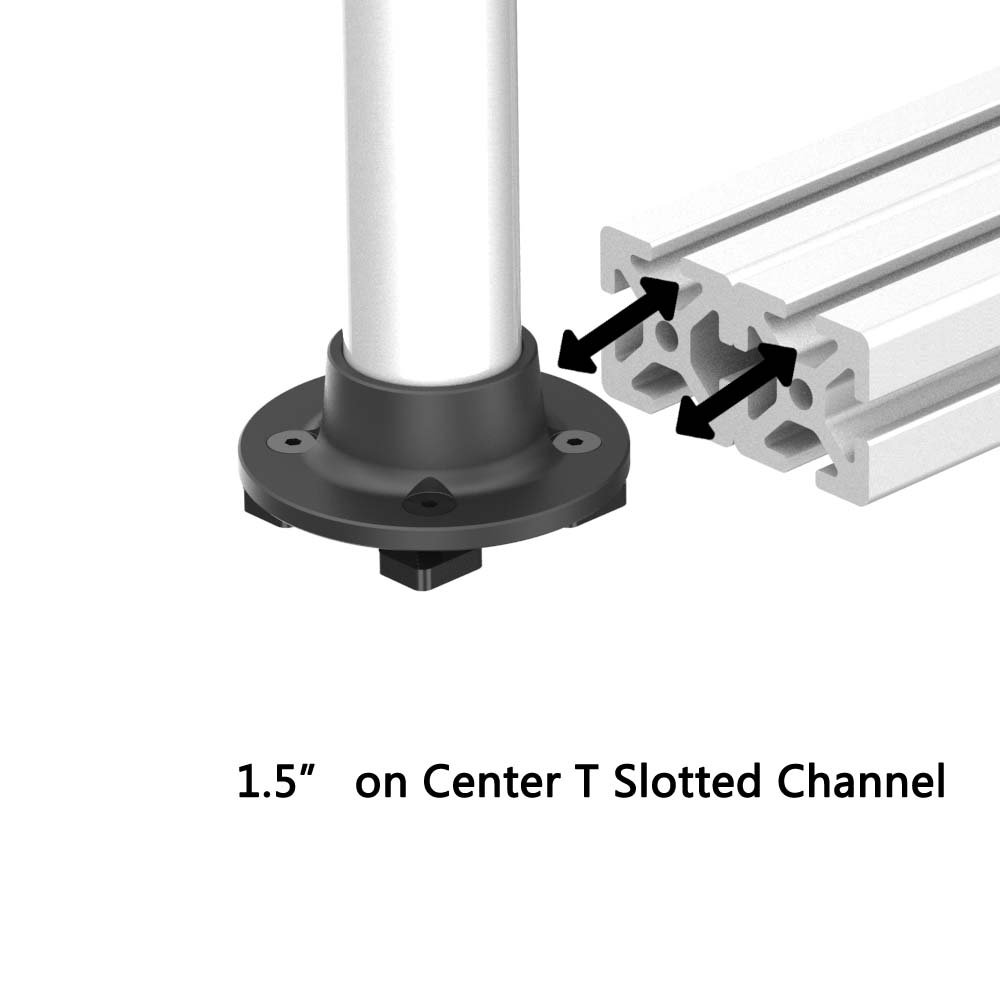

2) 1.5" on Center T Slotted Channel

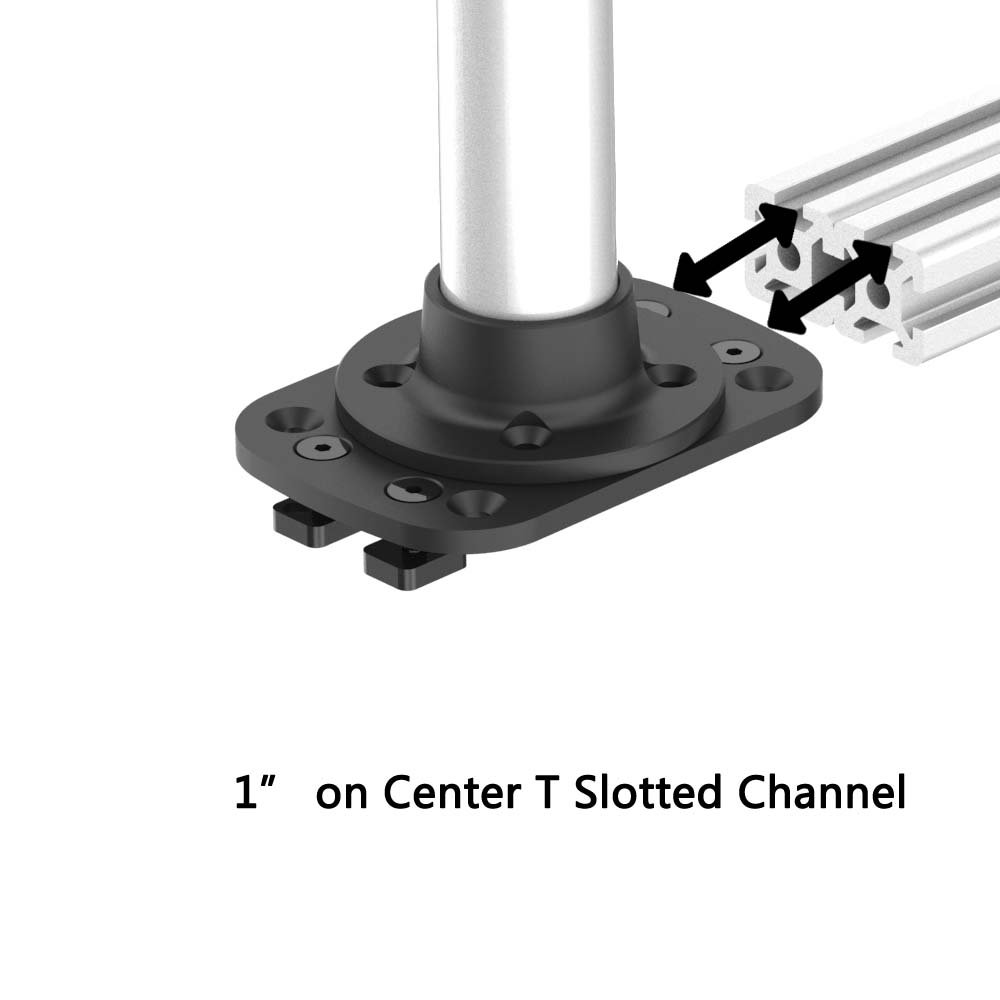

3) 1" on Center T Slotted Channel

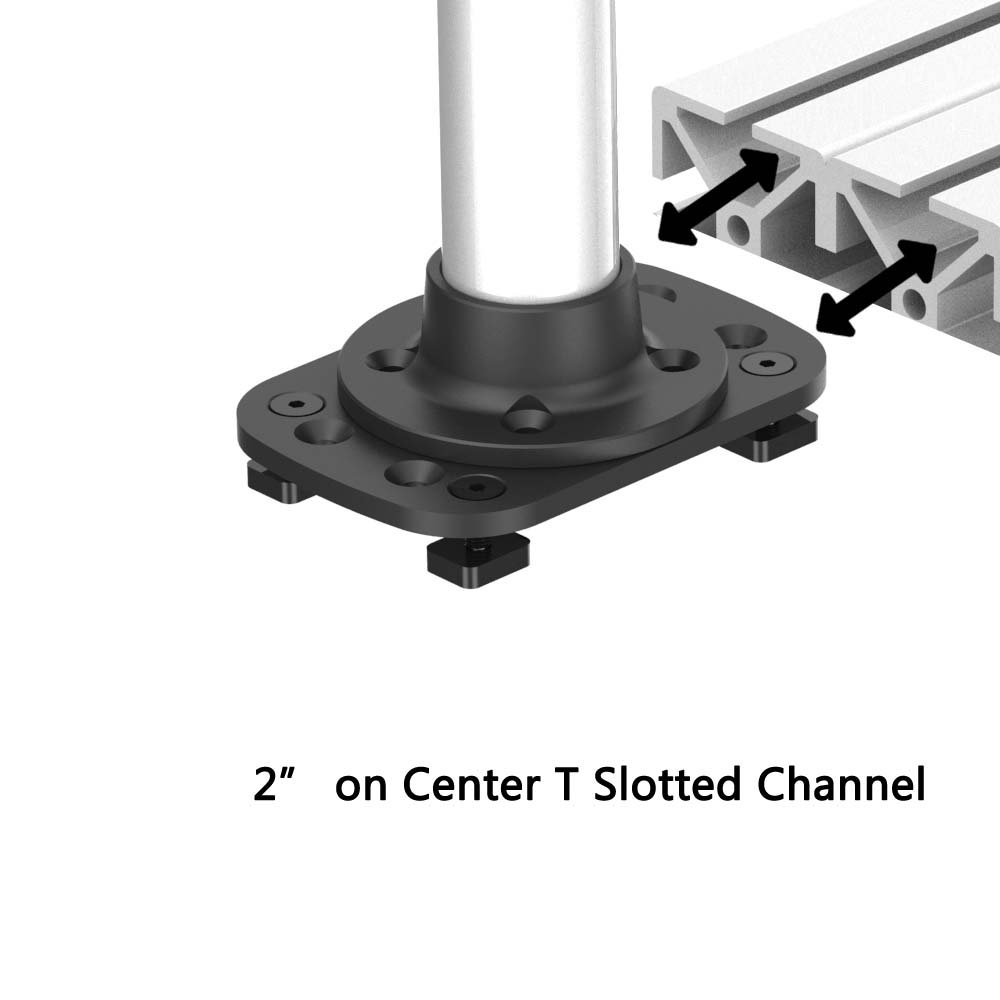

4) 2" on Center T Slotted Channel

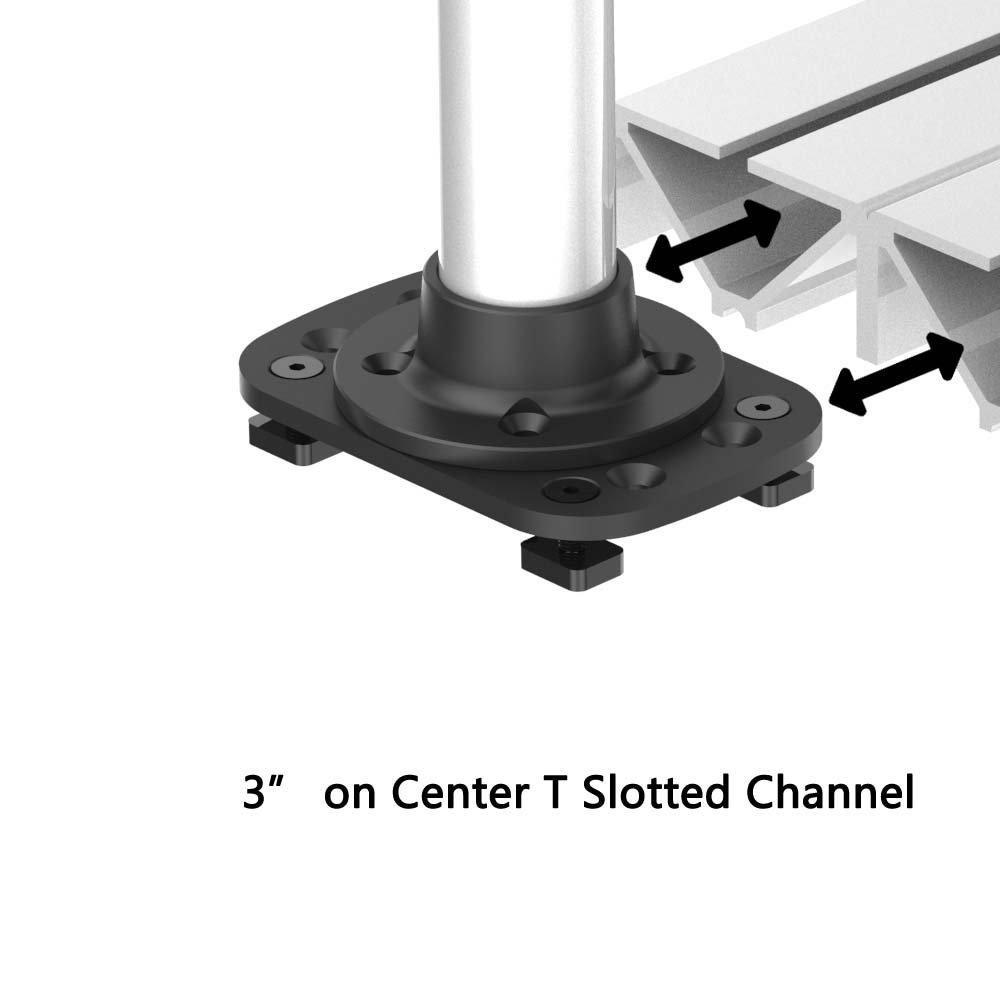

5) 3" on Center T Slotted Channel

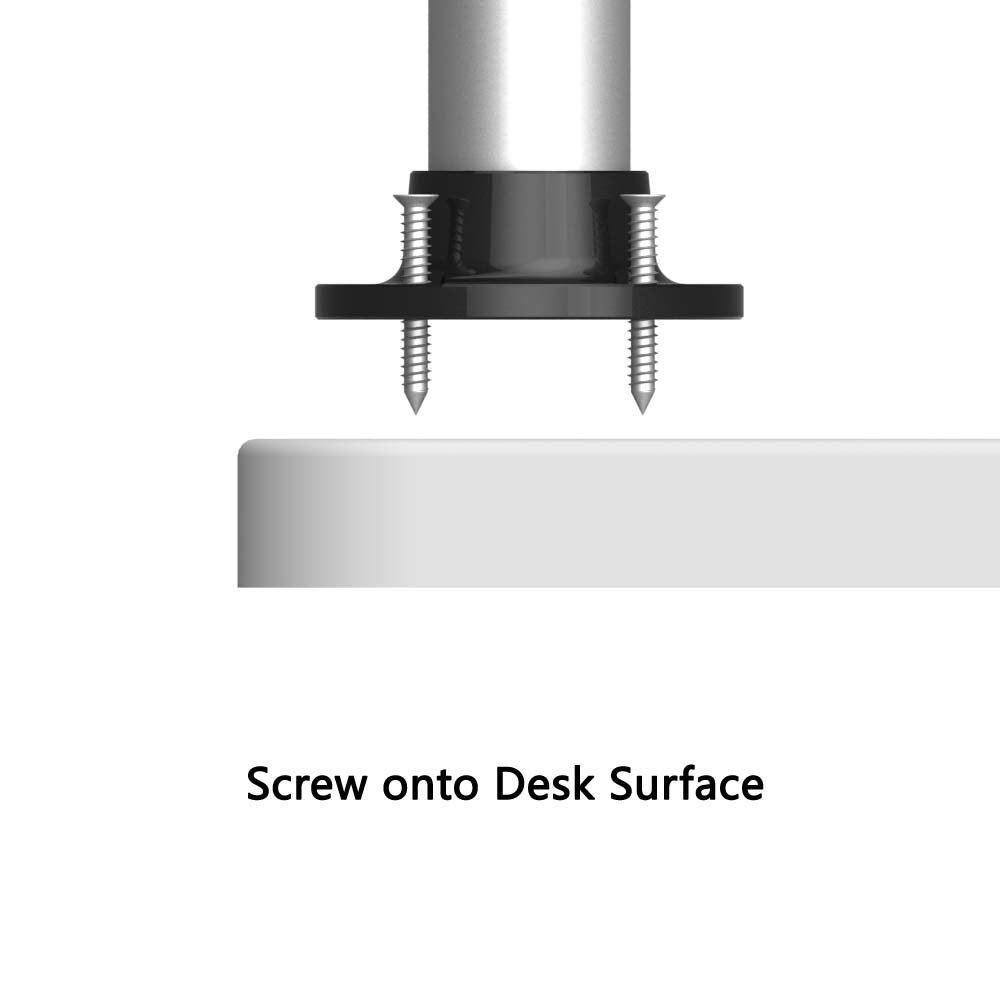

6) Screw onto Desk Surface

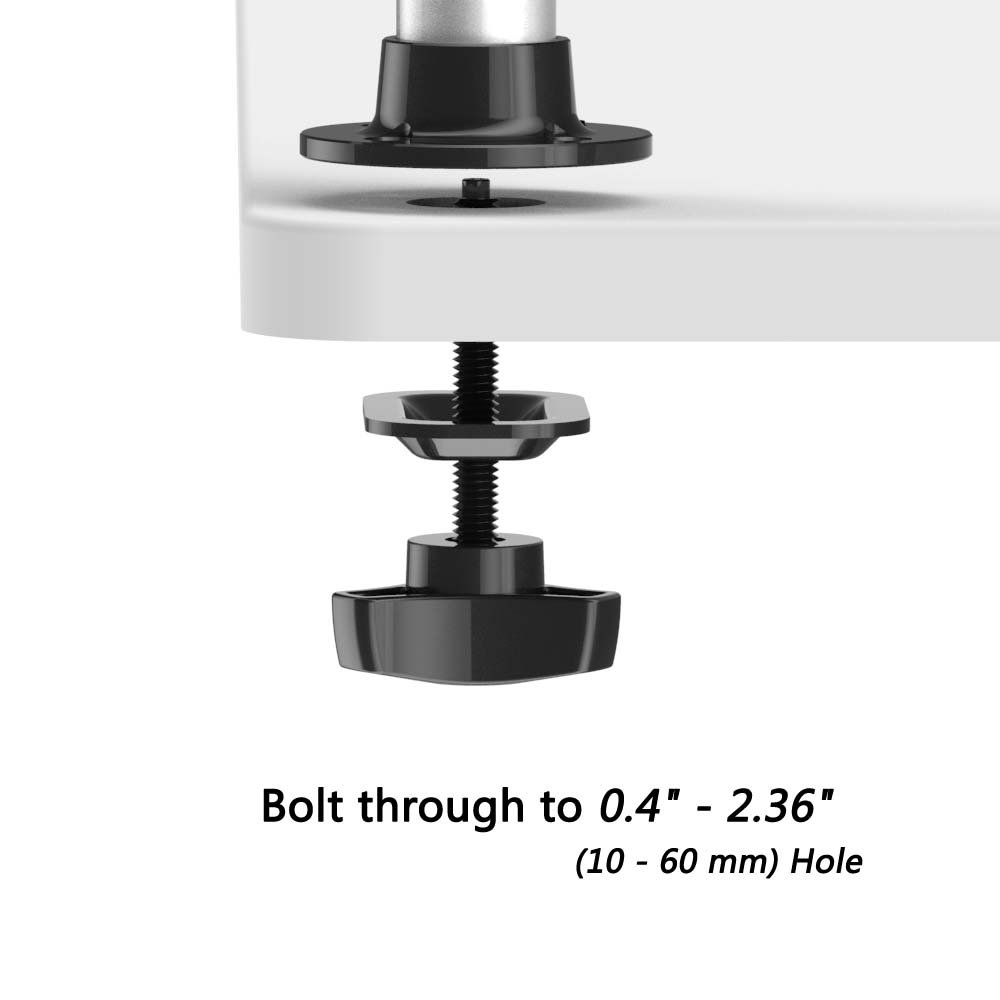

7) Bolt through 0.4" - 2.36" (10 - 60 mm) Hole
You may get quite creative to make this mount work in an environment that is hard to find a solution. - Supports two screens placed up and down up to 32"
- Pole length: 19.7" (500mm); optional longer pole available in 27.6" and 43.3"
- Brackets, swivel arms and spring arms feature quick release design: only a matter of a 'click' to get connected and with the push of a button then lift off to get disconnected
- Height Adjustment Range being the maximum in the market: 16.6" (422mm) dynamically, or, 70° upward and 50° downward, a great solution as a sit-stand mount
- Maximum adjustment rendered by tilting, swiveling, rotation and optional dynamic height adjustment
- Swift and easy movements and adjustments
- Solid Aluminum die-cast construction
- Space-saving with its compact design
- Clean look with minimal hardware visible from underside of work surface
- Rotation 90° and side-to-side pivot
- May be used to support a laptop by using the Mountable Laptop Tray
- Neat and efficient cable management
- Maximum productivity and supreme ergonomic comfort
- Easy installation and dis-installation
- Color: Metallic Silver & Black
Product Description
The Dual Track Rail Mount Side by Side or Up & Down Full Motion is a stylish console mount that is perfect for your LCD or LED screen. With a 360° swivel function and a weight capacity of 9 lbs or 17.6 lbs, 29.7 lbs, this T-slot mount is ideal for control rooms, workstations, industrial environments, and many other applications. It keeps your operators productive, healthy, and as a result, happier. This mount has +90° / -25° tilt actions to ensure perfect viewing at any angle. The convenient display mount features robust cable management, providing a neat and tidy desk space with no visible cables. This comfortable and stylish LCD extrusion track mount offers perfect flexibility and is maneuverable to suit any viewing angle. It has a modern design, which fits in perfectly with the monitor's stylish looks. The 7-in-1 mount has been designed with the latest engineering technologies in mind; to ensure durability and strength. These quality mounts are manufactured in our offshore manufacturing plant, adhering to strict quality guidelines that enable us to deliver value to our customers. This handy console T-slot mount has been built with the end-user in mind; and ensures quick installation features while simultaneously offering intuitive, practical and functional designs. Please note that the T-slot extrusion track in the picture is for demonstration only and is not included.

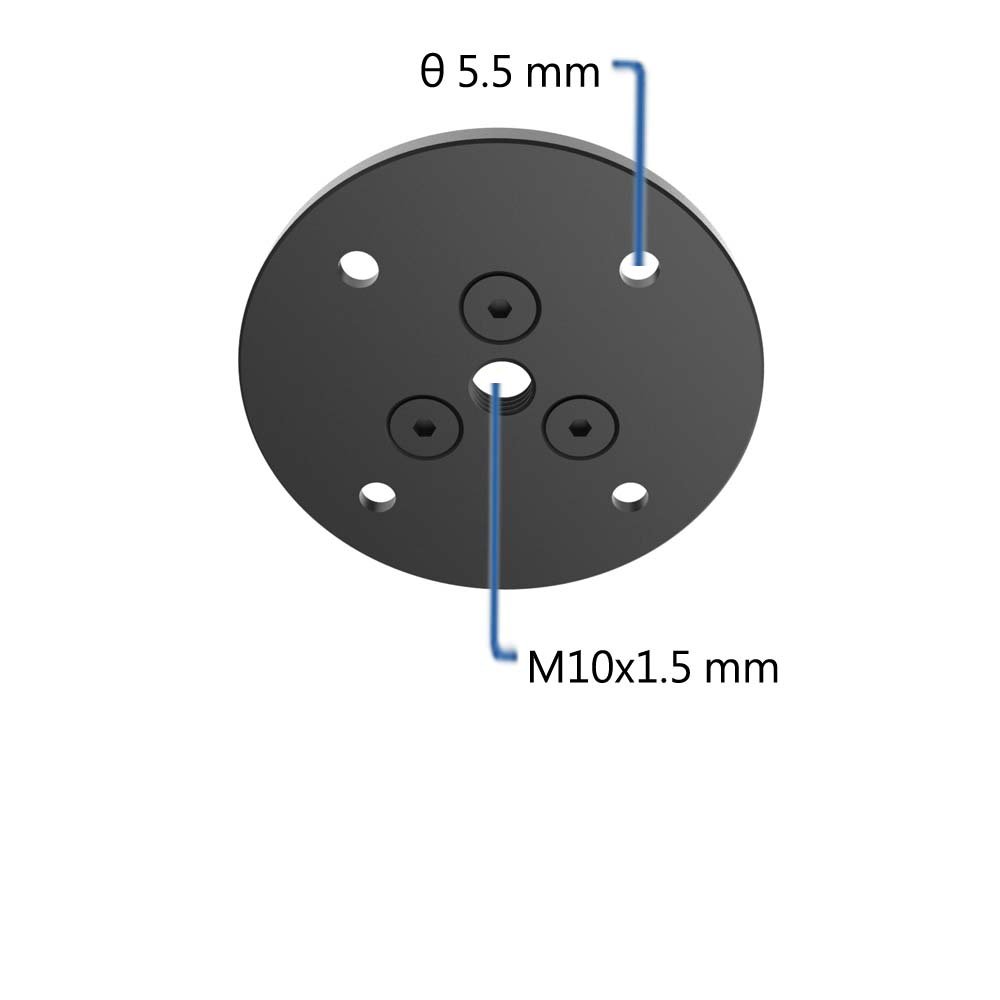

7-in-1 Base
