VESA compliant: 75x75 and 100x100, with option choice of 200x200
90° (portrait or landscape)

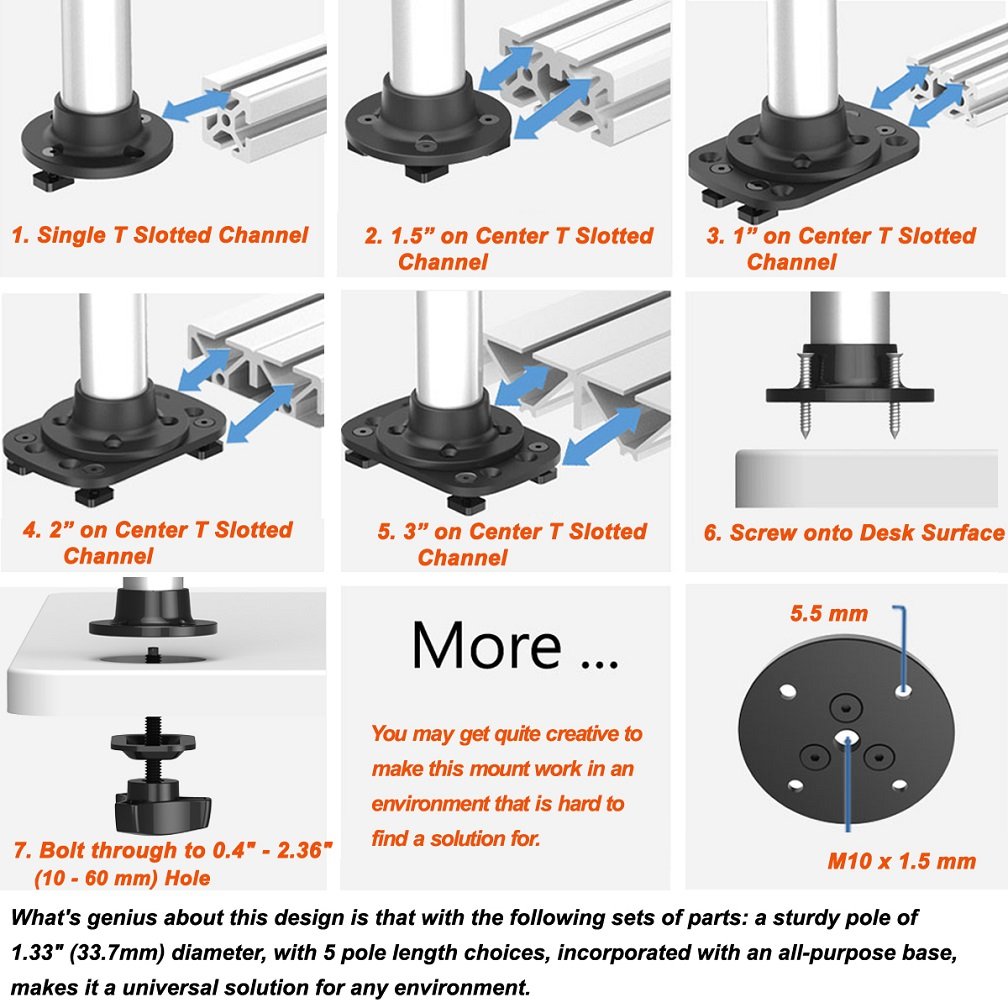

7-in-1 base works for:
1) Single T Slotted Channel
2) 1.5" on Center T Slotted Channel
3) 1" on Center T Slotted Channel
4) 2" on Center T Slotted Channel
5) 3" on Center T Slotted Channel
6) Screw onto Desk Surface
7) Bolt through 0.4" - 2.36" (10 - 60 mm) Hole
You may get quite creative to make this mount work in an environment that is hard to find a solution.
Supports two monitors, average monitor width no more than 31.5" and VESA pattern being compatible
Dual monitor crossbar length: 31.5"
Pole length: 19.7" (500mm); Longer pole options available: 27.6" and 43.3"
Brackets feature quick release design: only a matter of a 'click' to get connected and with the push of a button then lift off to get disconnected
Height Adjustment Range: 9.4" dynamically with Front-end Adjuster option
Maximum adjustment rendered by tilting, swiveling, rotation, and optional dynamic height adjustment

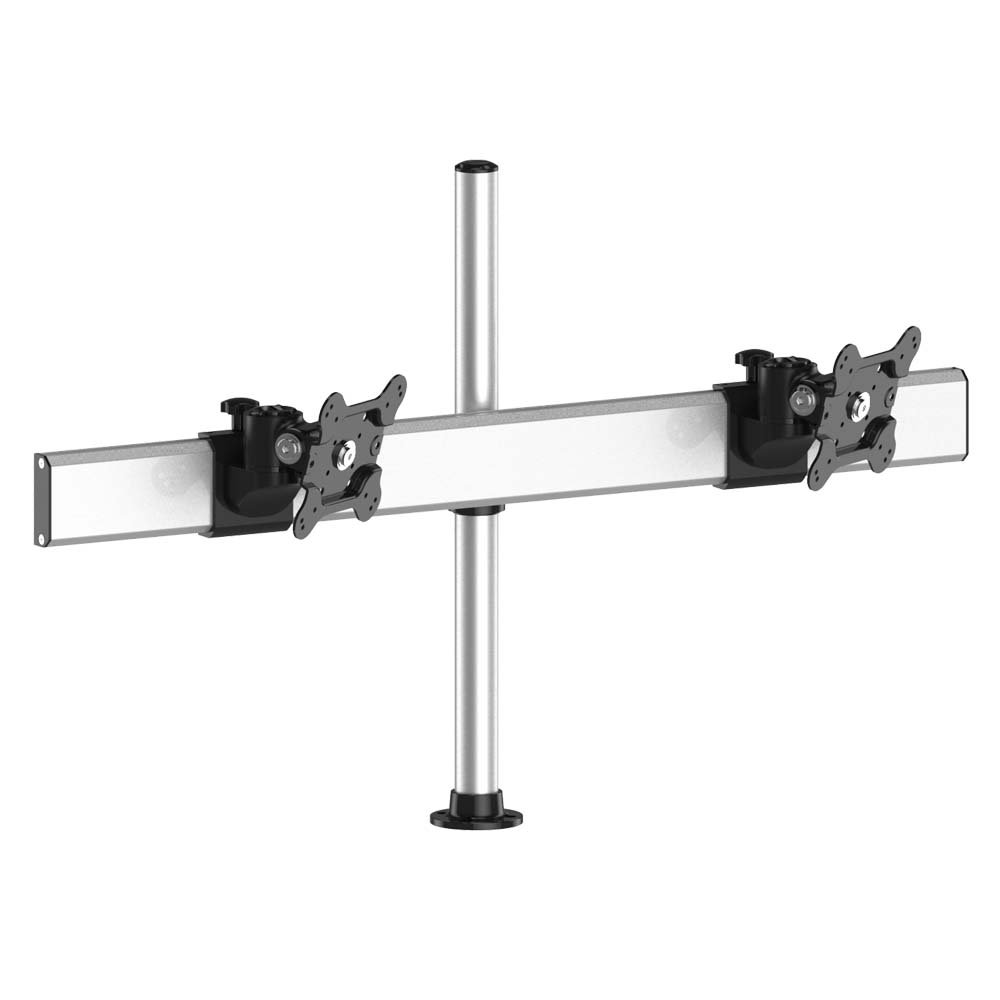

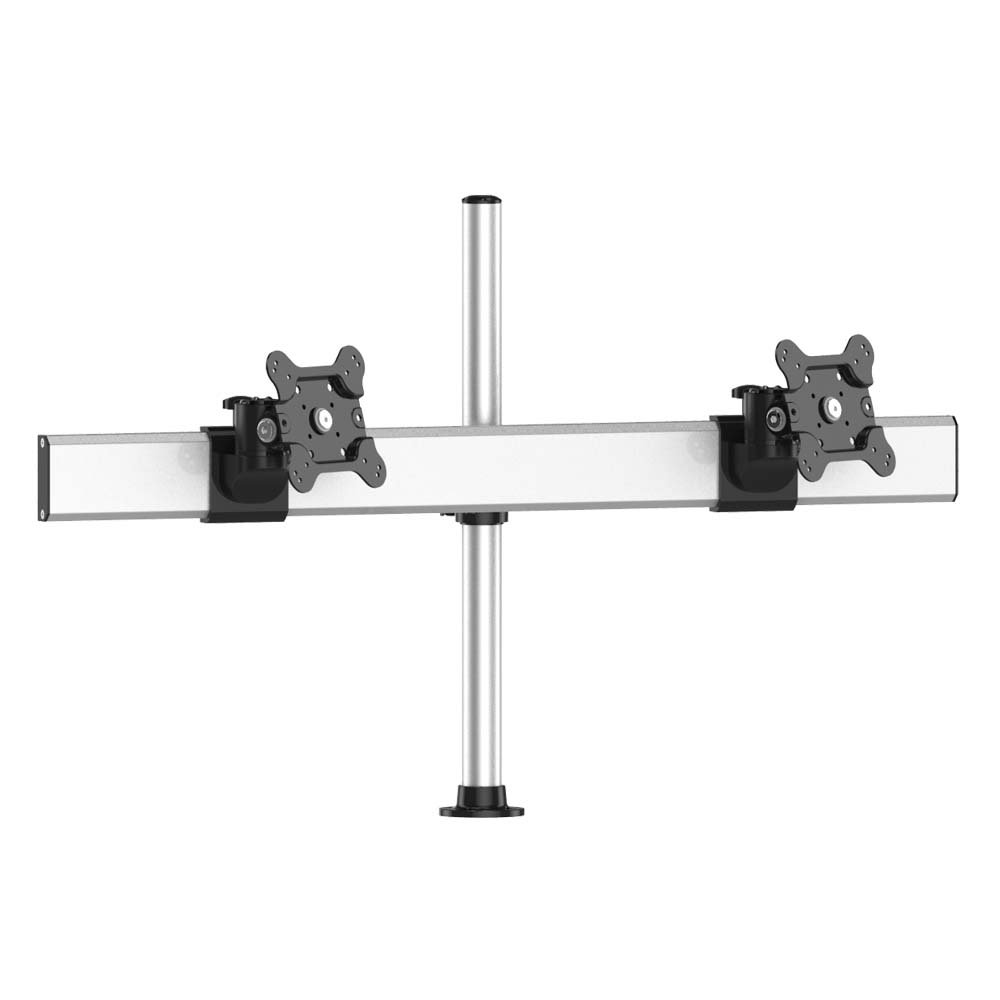

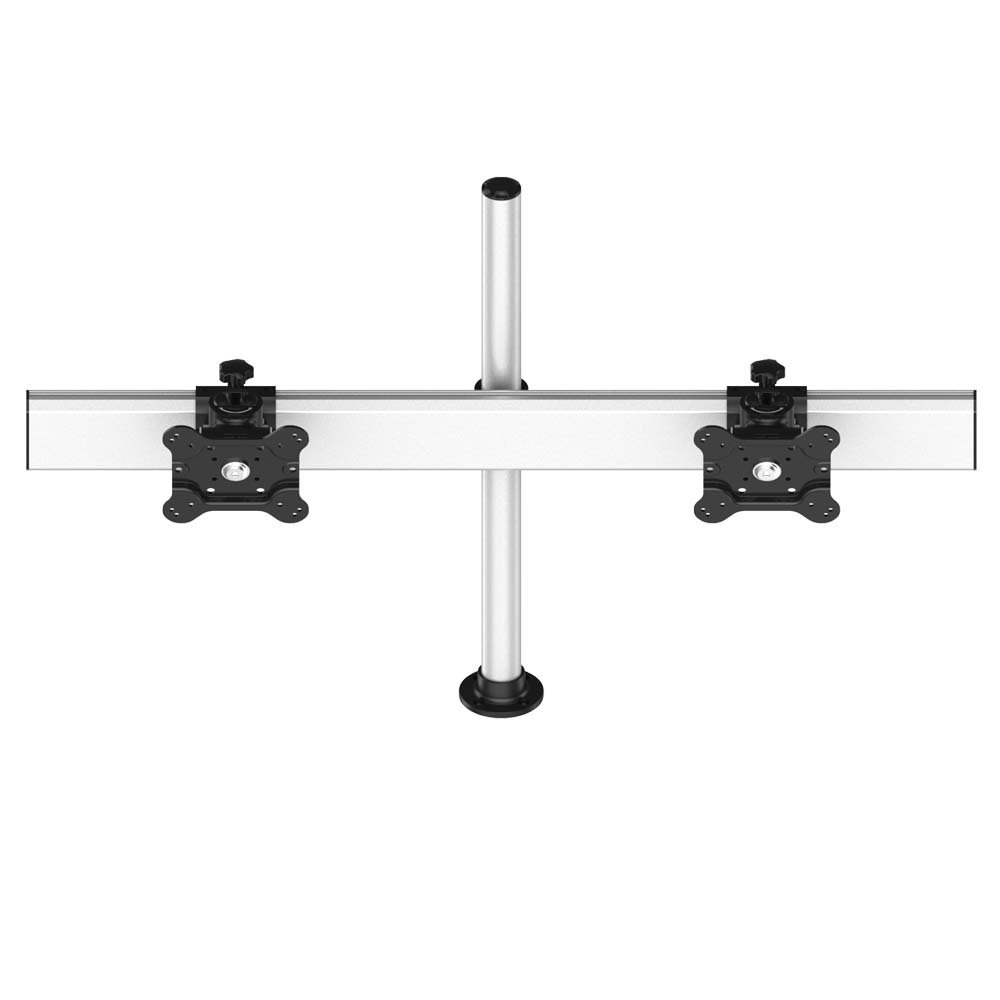

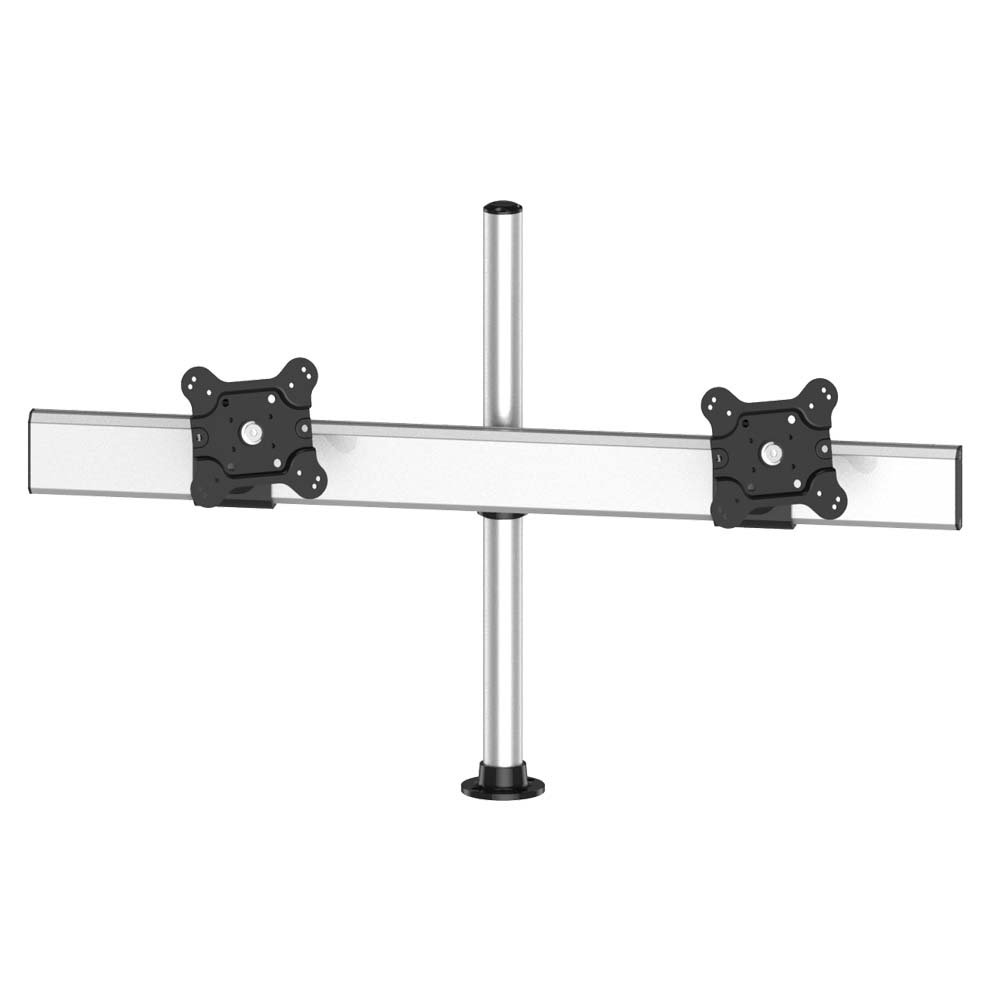

Our new Dual Track Rail Mount Side by Side Low Profile w/ Quick Release is a tilt & swivel mount. It features 90-degree monitor rotation, swivels left and right up to 360 degrees, tilts upwards 90 degrees maximum and downwards up to 25 degrees, aluminum alloy material, and a total weight capacity of 66lbs (30kg). This LCD monitor track mount is a low profile type that can achieve optimal viewing angles by tilting and turning. This mounting bracket is ideal for classrooms, offices, homes, public area, industrial settings, production line, and many more. The monitor arm features integrated durability through state of the art engineering technology and is tested for strength in our oversea manufacturing plant. The LCD 7-in-1 base mount has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. Please note that the T-slot extrusion track in the picture is for demonstration only and is not included.
