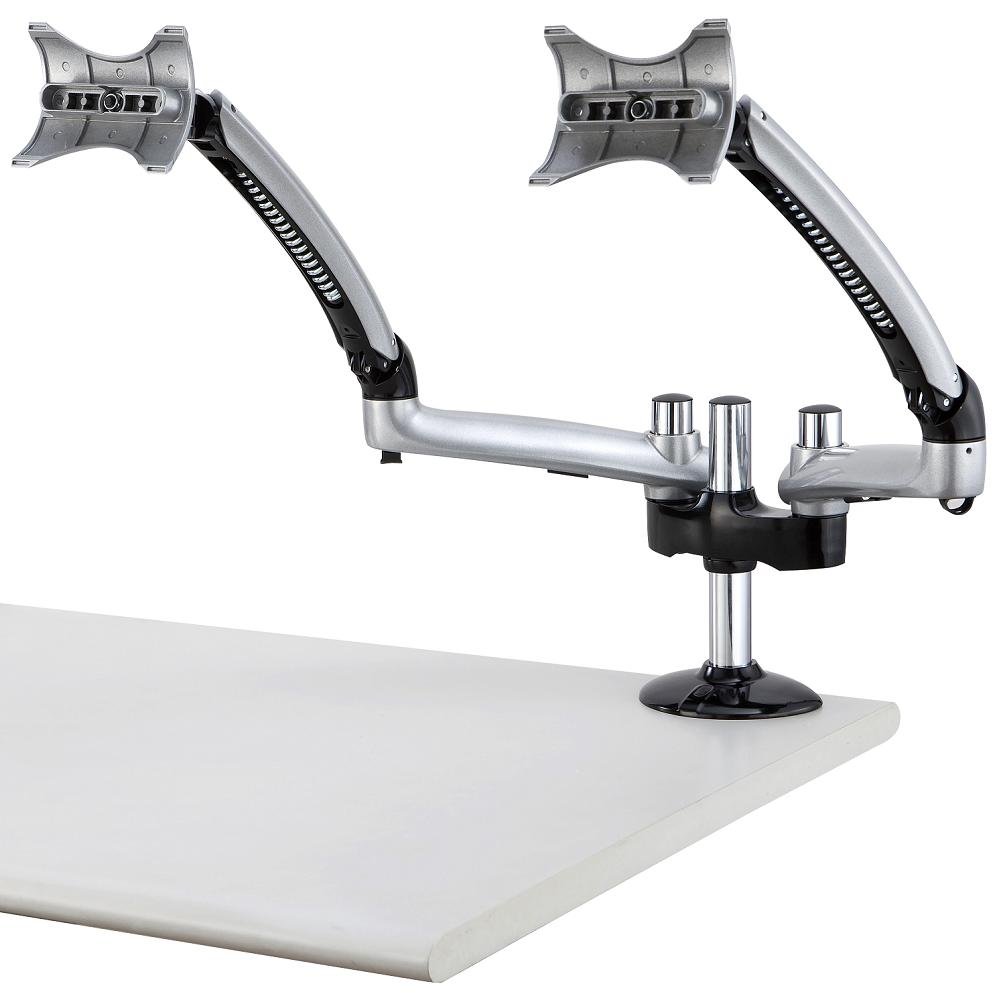

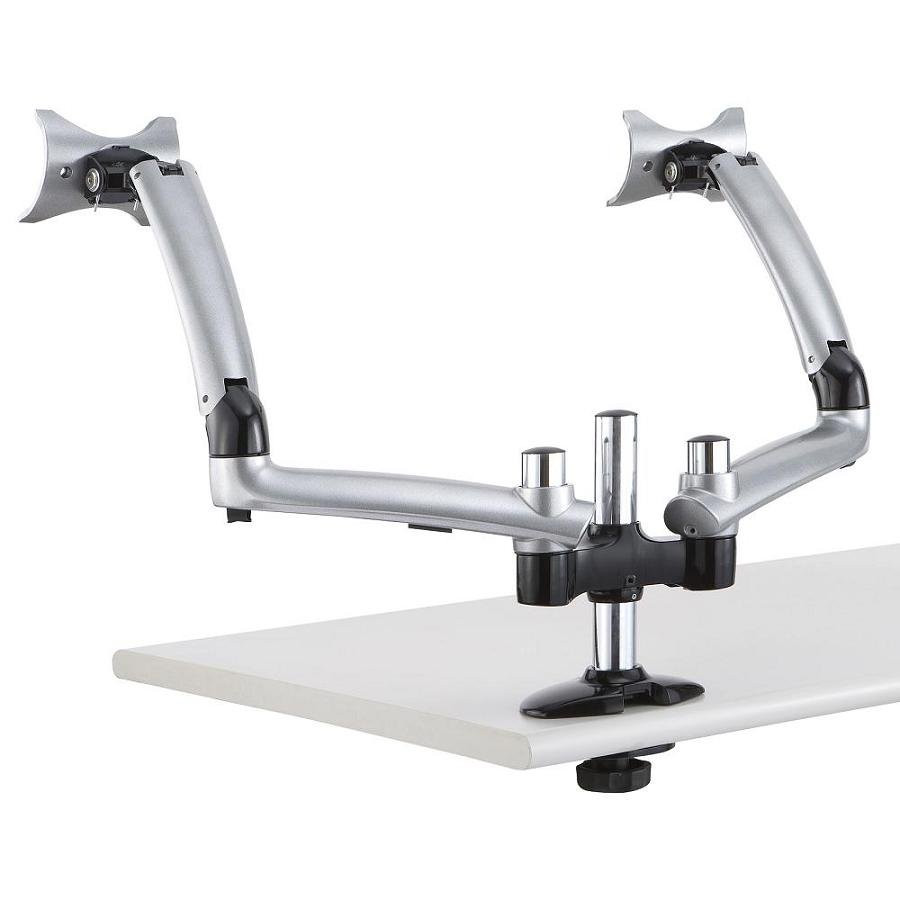

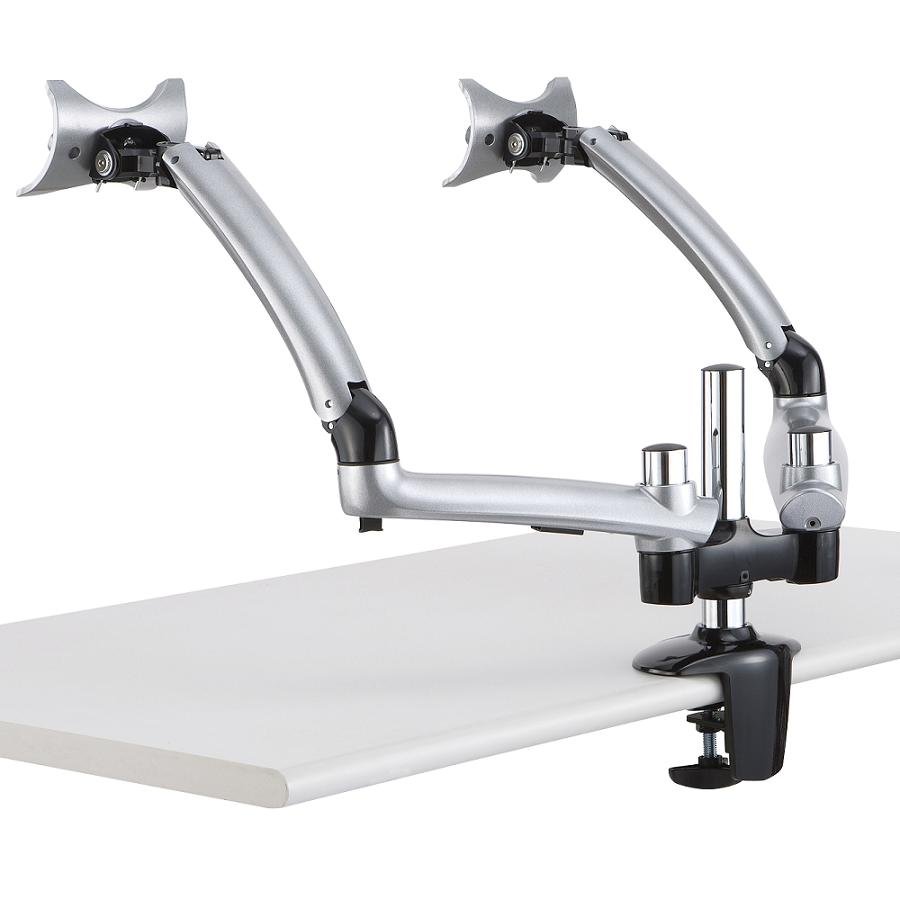

Dual Monitor Desk Mount for Apple w/ Spring Arm DM-GS2A

	Weight Capacity:	Supports 17.6 - 30.8lbs (8 - 14kgs) for each monitor
	Tilt:	+90° / -45°
	Rotation:	360°
	Swivel:	Max 180°
	Mounting Pattern:	VESA compliant: 75x75 and 100x100
	Maximum extension:	27.6" (700mm)

Features

• Designed for the following Apple Monitors:
  24-inch iMac (aluminum and glass)
  27-inch iMac before 2013
  24-inch LED Cinema Display
  27-inch LED Cinema Display
  27-inch Thunderbolt Display
  21.5" or 27" iMac with Built-in VESA Mount Adapter after late 2012. Please be sure to choose the option of 'iMac with VESA Built-in'
  27" iMac Retina with Built-in VESA Mount Adapter. Please be sure to choose the option of 'iMac with VESA Built-in'
  27" iMac Pro with VESA Mount Adapter. Please be sure to choose the option of 'iMac with VESA Built-in'
  32" Apple Pro Display XDR (2019) with VESA Mount Adapter. Please be sure to choose the option of '32" Apple Pro with VESA Adapter' AND be sure to purchase the VESA Adapter for this model from Apple
  Apple Studio Display 27" (2022) VESA Version. Please be sure to choose the option of 'Apple Studio Display VESA Version'
  If your Apple monitor is not listed above, please contact us for solutions.
• Desk-mountable, for two screens placed next to each other; available in clamp base and grommet base
• Clamp table thickness: 0.2"-2.21" (5-55mm);
  Grommet table thickness: 0.2"-2.21" (5-55mm), Hole Diameter: 0.39"- 6" (10-152mm)
• Spring arm design makes extension, retraction and height adjustments dynamically and easily
• Pole length: 7.87" (200mm); Longer pole option available
• Maximum adjustment rendered by tilting, swiveling, rotation and dynamic height adjustment
• Swift and easy movements and adjustments

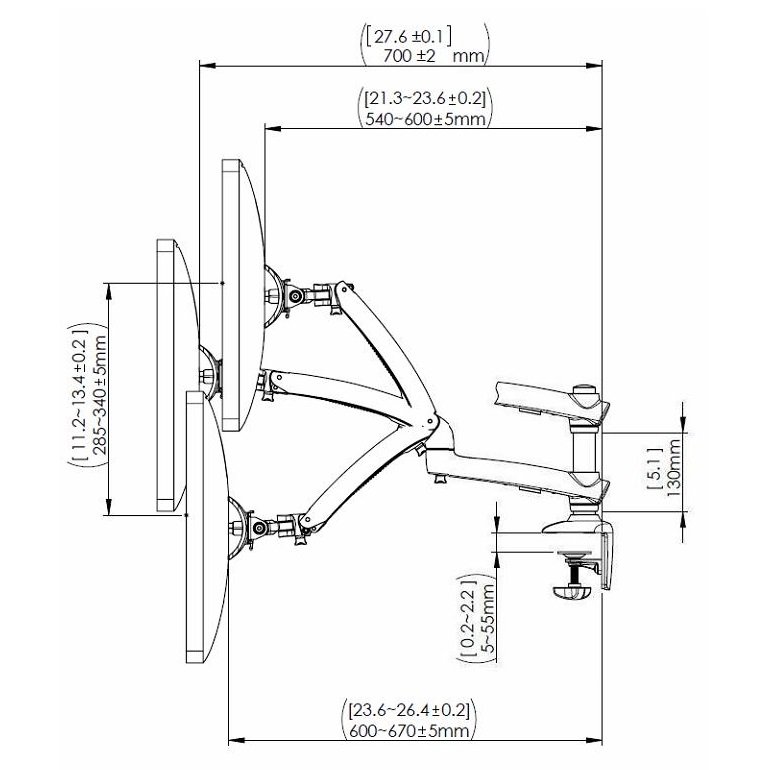

• Height Adjustment Range: 5.1" at 7.87" pole (16.95" at 19.7" pole), 11.2" - 13.4" at monitor
• Solid Aluminum die-cast construction
• Space-saving with its compact design
• Smooth extension (up to 27.6") to achieve ideal viewing angles
• Clean look with minimal hardware visible from underside of work surface
• Rotation 360° and side-to-side pivot
• Neat and efficient cable management
• Maximum productivity and supreme ergonomic comfort
• Easy installation and dis-installation
• Color: Metallic Silver (please contact us for a special order of white, dark gray or red color)

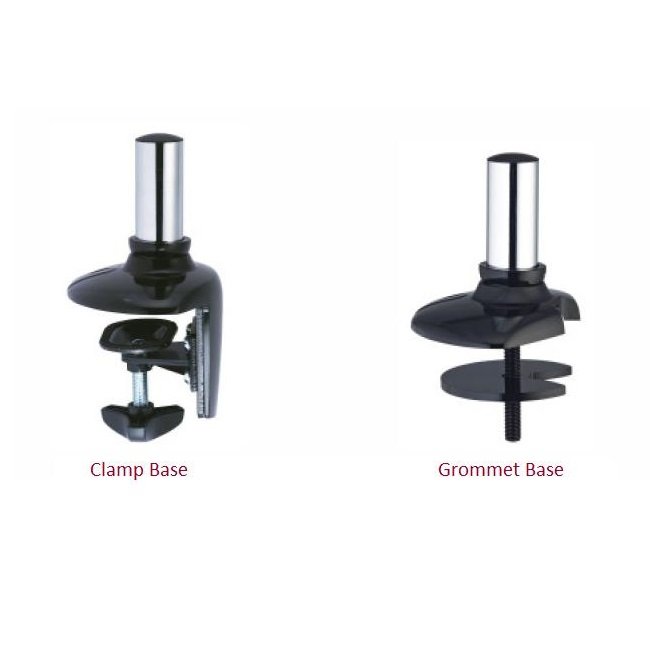

Base Types

Product Description

The Dual Monitor Desk Mount for Apple w/ Spring Arm DM-GS2A is a stylish desk mount that is perfect for your Apple LCD monitor. With a 180° swivel function and a weight capacity of 30.8lbs (14kg), this desk mount is ideal for offices, classrooms, private homes, and public areas. It's the perfect accessory for the busy individual and can fit neatly into any home office space. This desk mount has +90° / -45° tilt actions to ensure ideal viewing at any angle. The convenient desk arm features robust cable management, providing a neat and tidy desk space with no visible cables. This convenient and stylish LCD desktop mount offers perfect flexibility and is maneuverable to suit any viewing angle. It has a modern look, which fits in perfectly with Apple's stylish looks. The monitor mount has been designed with the latest engineering technologies in mind; to ensure durability and strength. These quality mounts are manufactured in our offshore manufacturing plant, adhering to strict quality guidelines that enable us to deliver value to our customers. This handy Cotytech monitor mount has been built with the end-user in mind; and ensures easy installation features while simultaneously offering intuitive, practical, and functional designs.

More Images

Q & A

Q: Will it work for Apple Studio Display 27" (2022) VESA Version?
A: Yes, if you choose the option of '1 - 2 Apple Studio Display 27" (2022) VESA Version' with the right number, then it will be compatible.

Q: Will it work for 'iMac Pro'?
A: You will need to purchase the 'VESA Mount Adapter Kit for iMac Pro' from Apple. For this mount, please make sure to choose the option of 'One or Two iMac with VESA Built-in' with the answer of '1' or '2', then it will be compatible.

Q: Will it work for 32" Apple Pro Display XDR (2019)?
A: You will need to purchase the VESA Adapter for this model from Apple. For this mount, please make sure to choose the option of 'One or Two 32" Apple Pro with VESA Adapter' with the answer of '1' or '2', then it will be compatible.

Q: When would I need the longer pole option?
A: When you expect to expand this mount to support multiple screens in more than 1 row in the future, you may consider starting with a longer pole, so all you need in the future is to purchase additional brackets for the second or third monitor.

Q: Do I need to choose the option of 'One or Two iMac with VESA Built-in' if mine are compatible Thunderbolts or Cinema Displays?
A: No, this option only applies to iMac after the year 2013, which has a built-in VESA adapter. Suppose you have one compatible Thunderbolt and one iMac with VESA Built-in. Then the right choice for this option is '1'.

Q: Can this be set up so that two 27" thunderbolt displays can be placed at 90 degrees to each other, i.e., the corner of an L-shaped desk?
A: Yes, it can.

Installation Video for Reference (Starting at 0:03:36 is about removing Apple display base and putting on the adapter.)
