Corner TV Wall Mount - Rotating Height Adjustable w/ Two Orientations

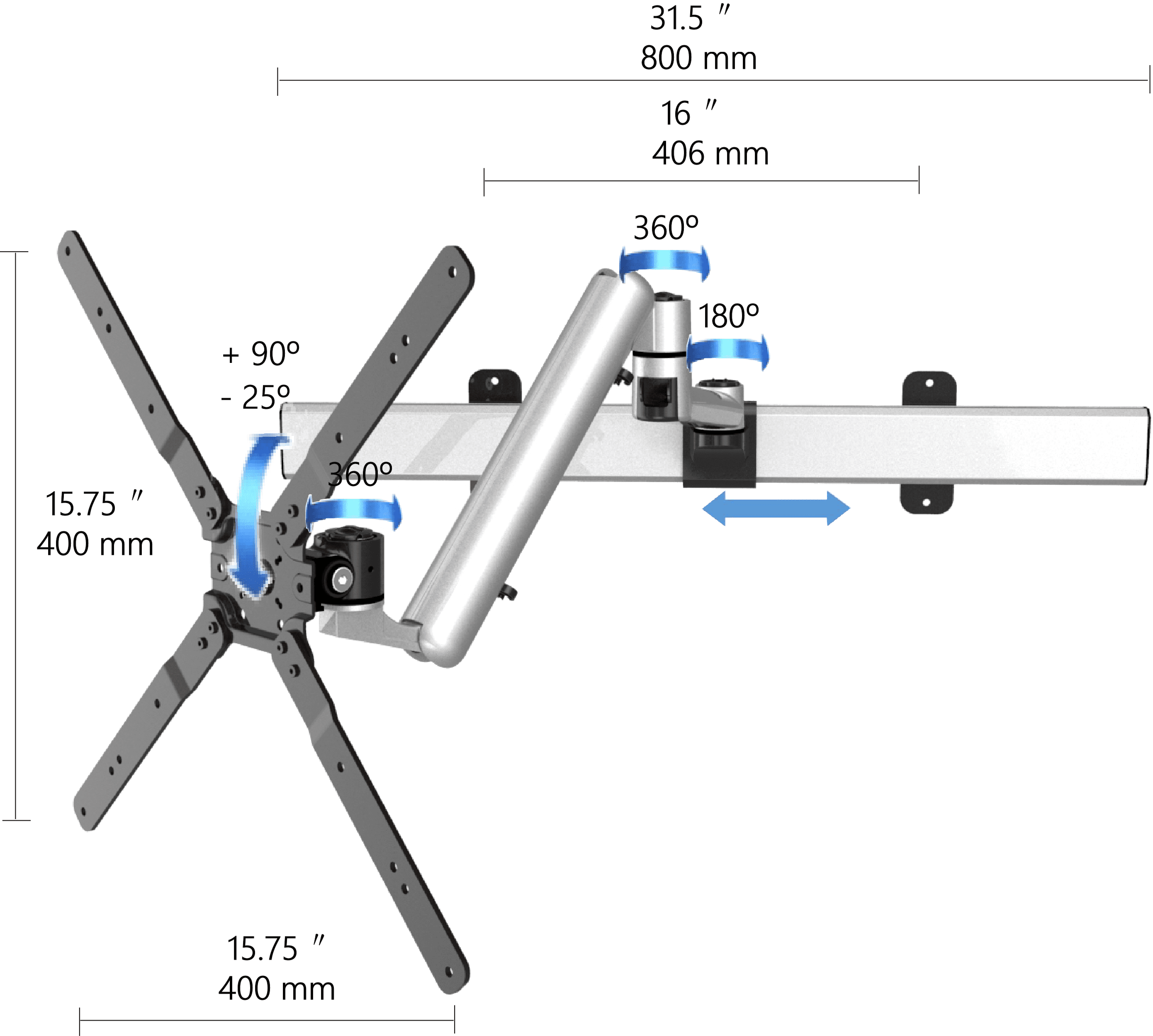

Specifications

	Fits most:	32" to 50" flat panels
	Weight Capacity:	Supports 17.6lbs min - 29.7lbs max weight
	Tilt:	Forward 25° / Backward 90°
	Swivel:	Max 180°
	Mounting profile:	4.3" (109mm) Minimum Depth From Wall
	Maximum extension:	30" (762mm)
	Mounts on Studs:	Single-stud or Double-stud
	Mounting Pattern:	VESA compliant: 100x100 to 400x400
	Rotation:	90°

Features

• Work with plasma, LCD, and LED TVs
• Height Adjustment Range being the maximum in the market: 16.6" (422mm) dynamically, or, 70° upward and 50° downward
• Effortless adjustments for premium viewing, making it easy to reduce glare and find the perfect TV angle at any height
• Sturdy die-cast aluminum structures maximize support in a lightweight mount; rock-solid construction secures your display investment
• Two Directional Wall Mount Bar Length: 31.5" (80cm); Longer wall mount bar of 43.3" (110cm) available; Can be placed vertically or horizontally; TV can be placed at different spots of the bar
• Space-saving; if you plan to mount your flat screen at a corner, this is a perfect solution when placing the bar vertically. It works for non-corner mounting as well.
• Hinged arm extends TV off the wall, providing easy access to cables
• The mounted TV can be removed and put on quickly. This quick release feature is most convenient when you need to take off TV often
• Secure accessory attachment; quick-mounting design for easy installation
• The aesthetic design makes it perfect for home or office
• Instruction manual and mounting screws are included

Mounting Pattern

You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise, you can measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to convert to millimeters: 100mm = 3.94 inches; 200 mm = 7.87 inches; 300mm = 11.8 inches; 400 mm = 15.7 inches.

Product Description

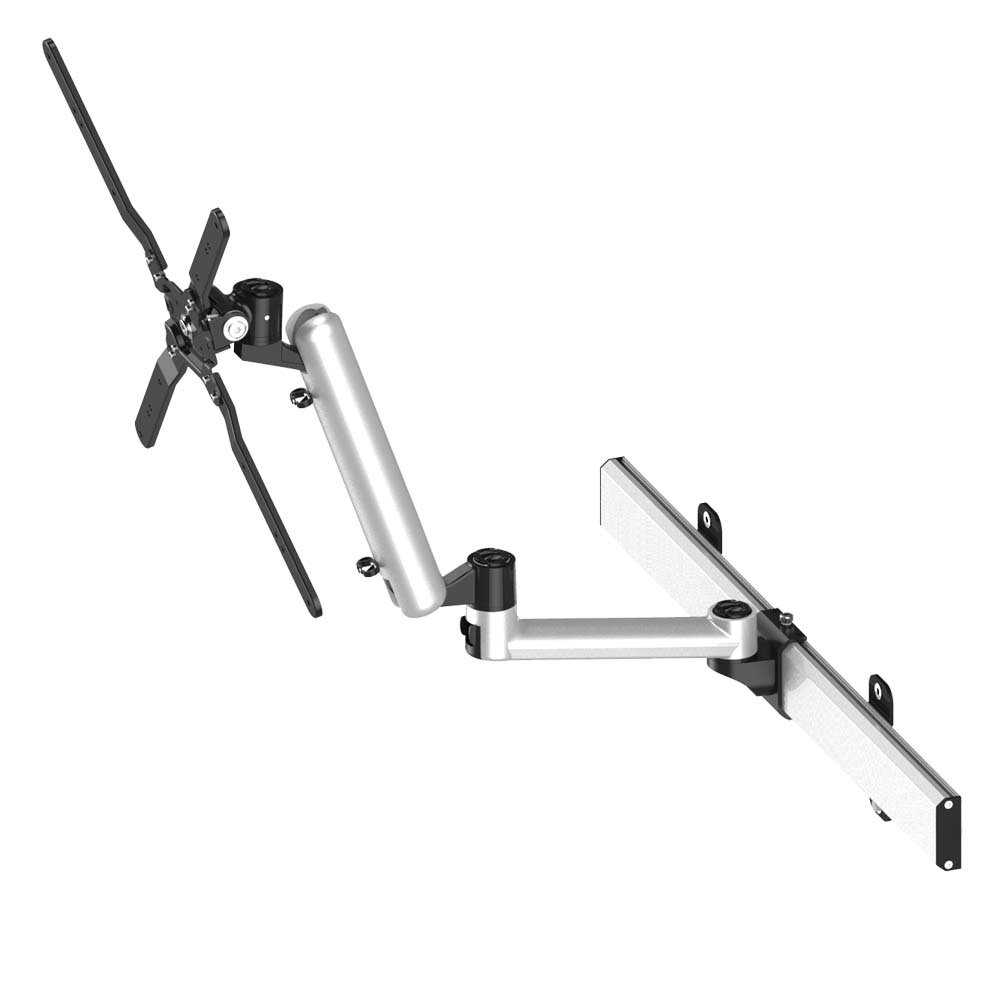

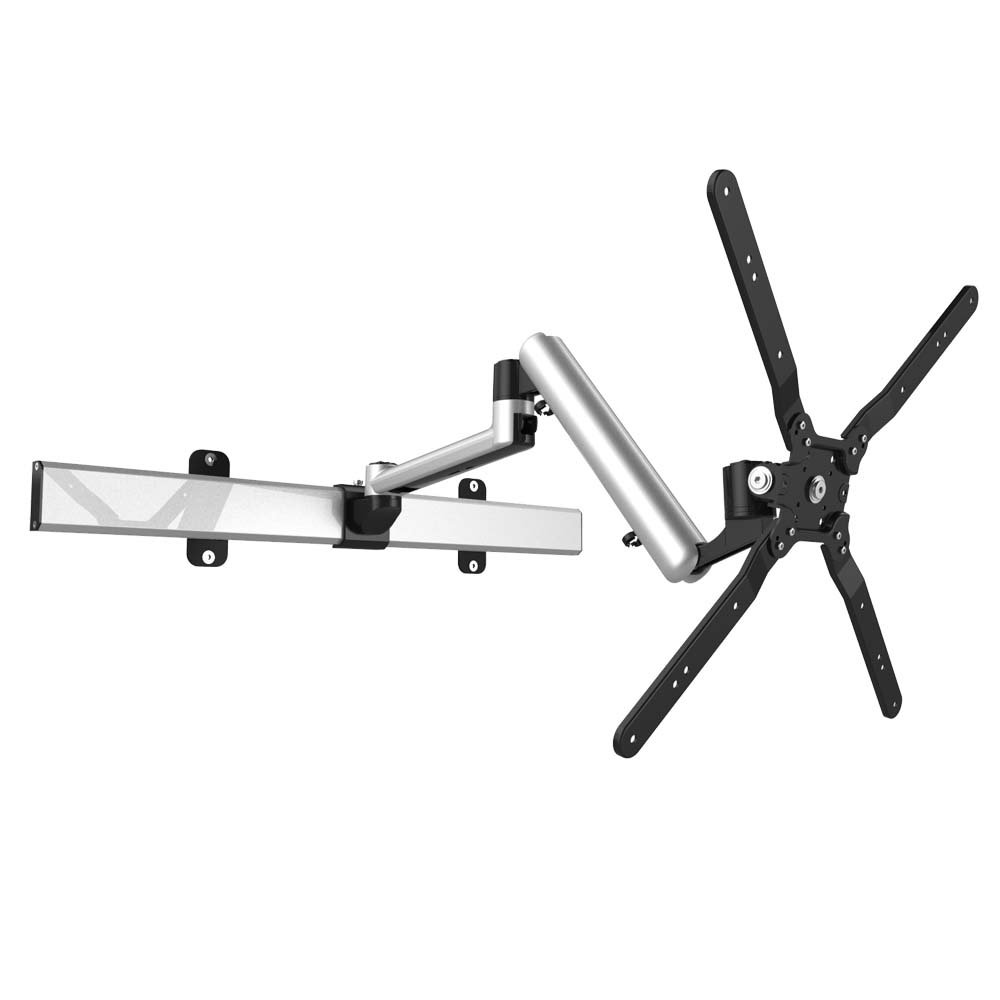

The unique and creative Corner TV Wall Mount - Rotating Height Adjustable w/ Two Orientations has three pivot points. The TV mount can achieve the best viewing positions by full motion functionality, and it is especially ideal for corner mounting (works excellent on non-corner too!). The wall mount solution has a weight capacity of 29.7 lbs., featuring 115-degree tilt, 180-degree swivel & 30-inch full extension. This swivel TV wall mount boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The corner wall mount has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. If you need more information about how to select TV wall mounts, please click here.

Corner Installation Demonstration Images

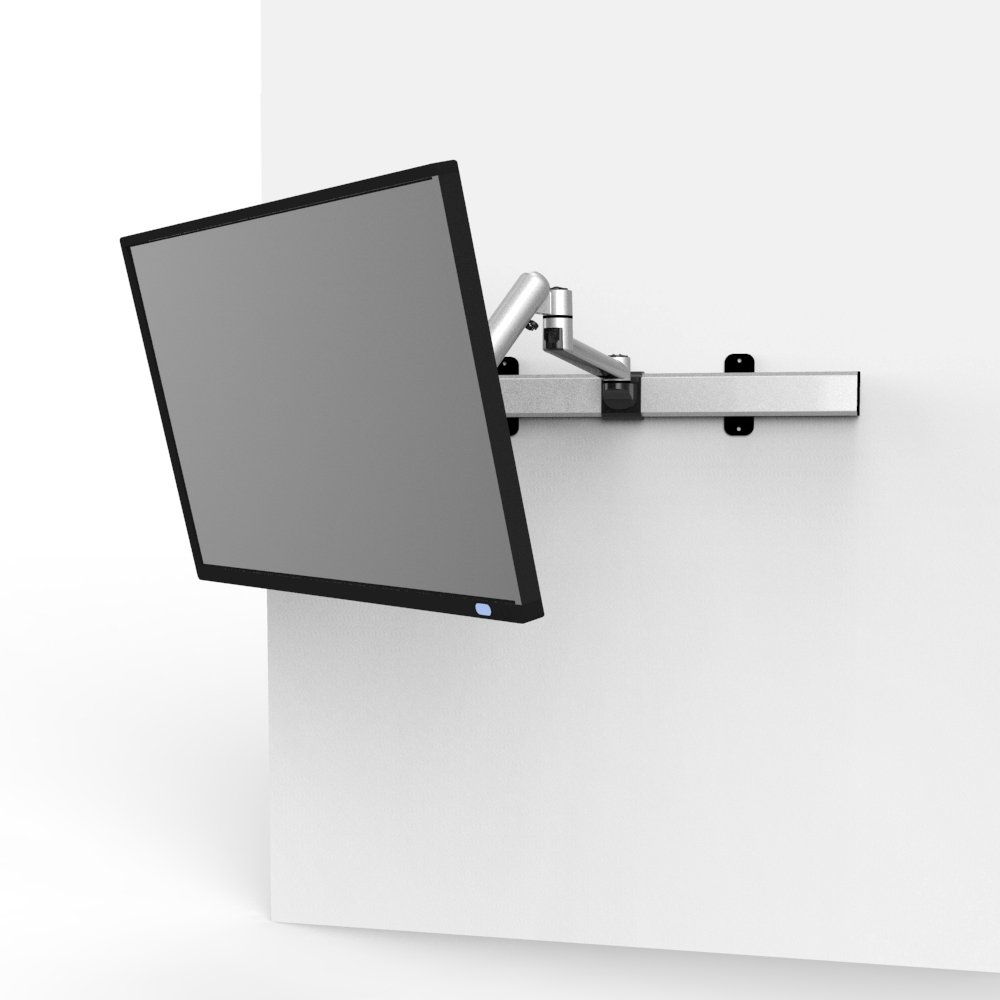

When placing the corner wall mount on the right side of the wall, flat-screen TV can be extended leftward to be positioned at the center of the corner. After viewing, TV can be stored away flush against the right side of the wall.

When placing the corner wall mount on the left side of the wall, flat-screen TV can be extended leftward to be positioned at the center of the corner. After viewing, TV can be stored away flush against the left side of the wall.

Click here for other corner mounts choices.
