|Fits most:||32" to 50" flat panels|
|Weight Capacity:||Supports 17.6lbs min - 29.7lbs max weight|
|Tilt:||Forward 25° / Backward 90°|
|Mounting profile:||4.3" (109mm) Minimum Depth From Wall|
|Maximum extension:||30" (762mm)|
|Mounts on Studs:||Single-stud|
|Mounting Pattern:||VESA compliant: 100x100 to 400x400|
|Rotation:||90° for Portrait & Landscape Orientations|
You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to convert to millimeters: 100mm = 3.94 inches; 200 mm = 7.87 inches; 300mm = 11.8 inches; 400 mm = 15.7 inches.

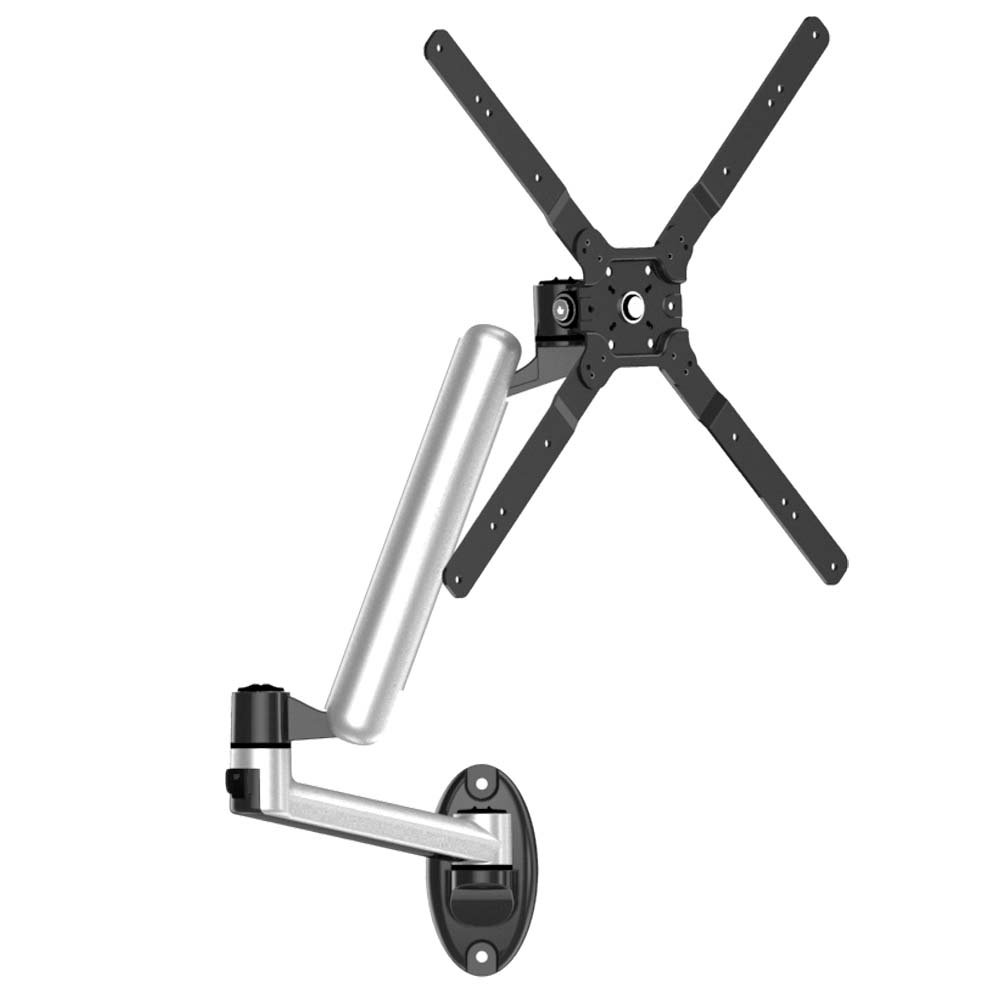

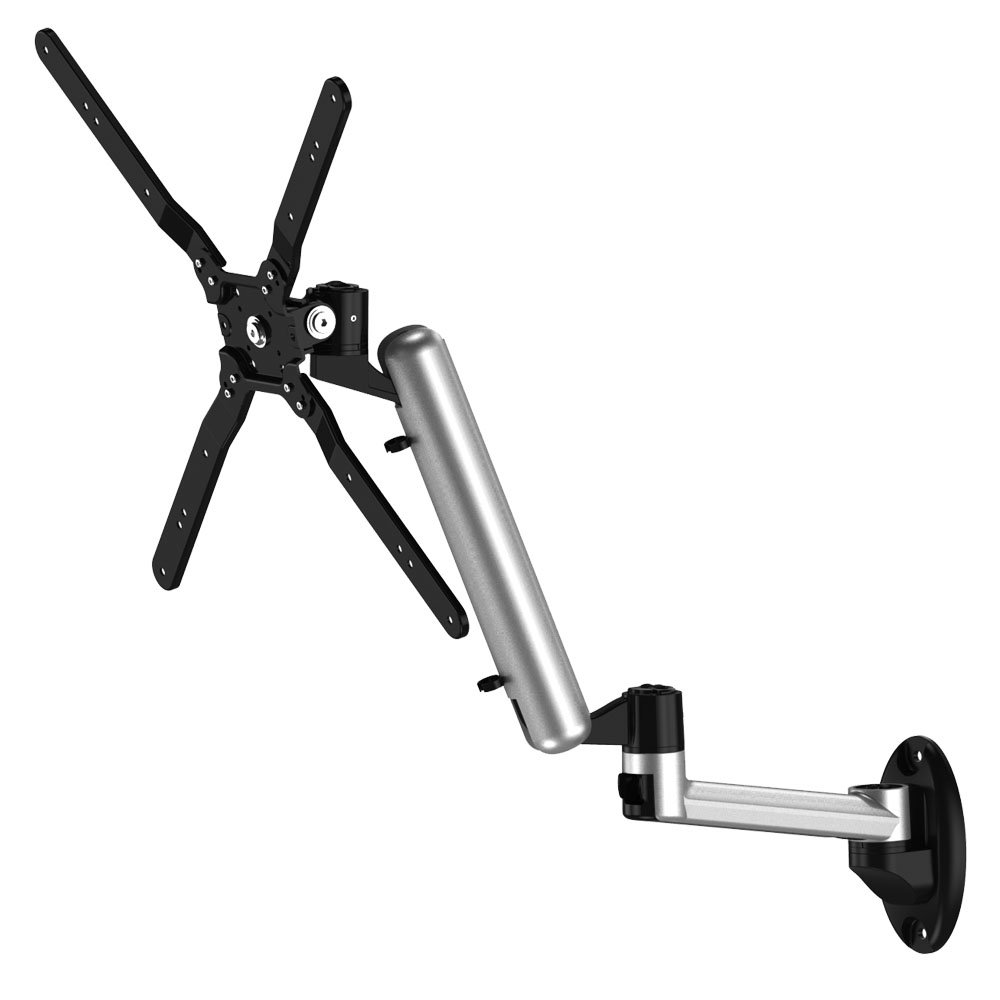

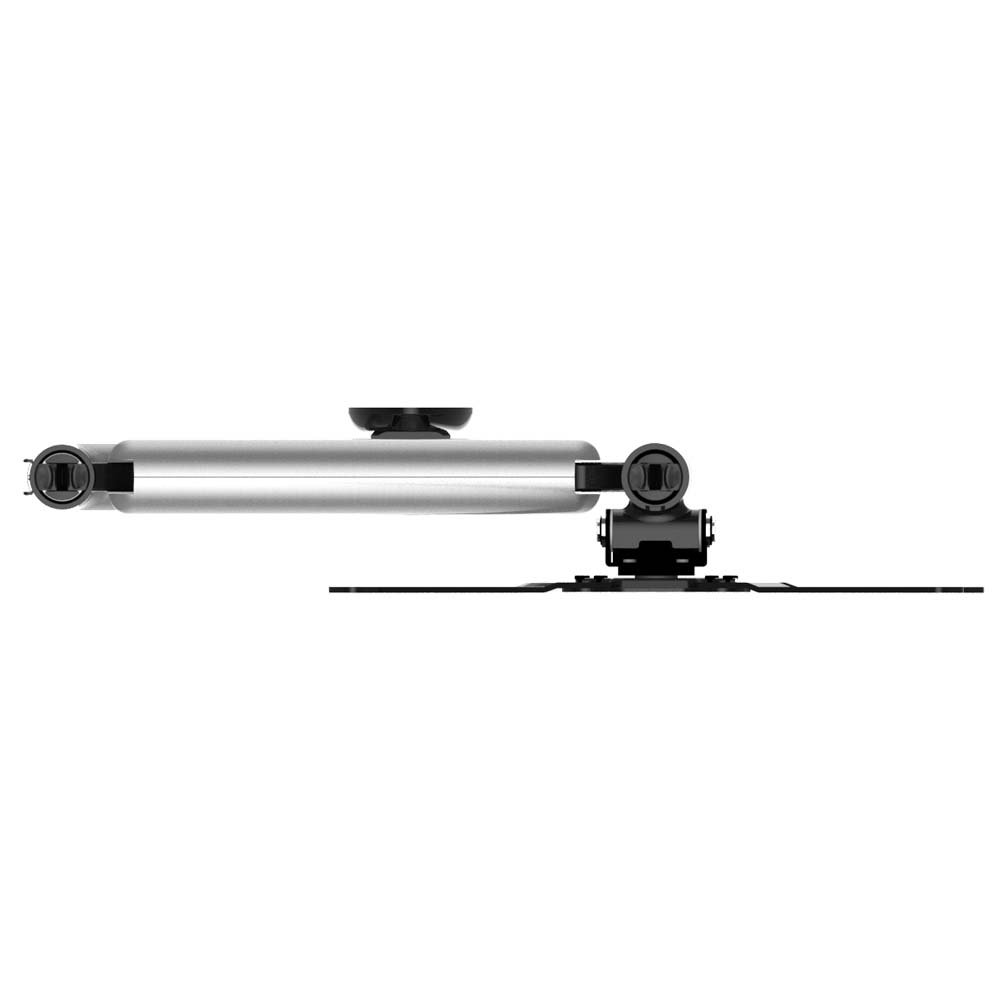

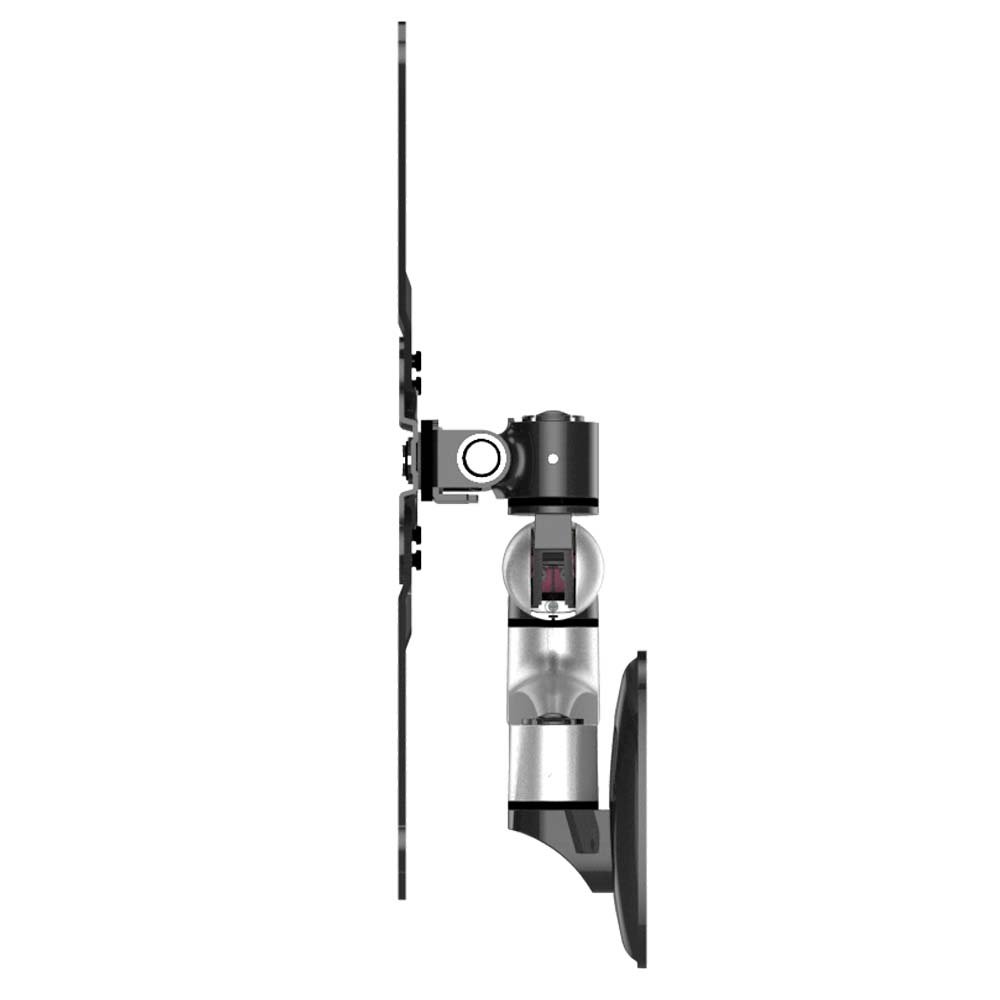

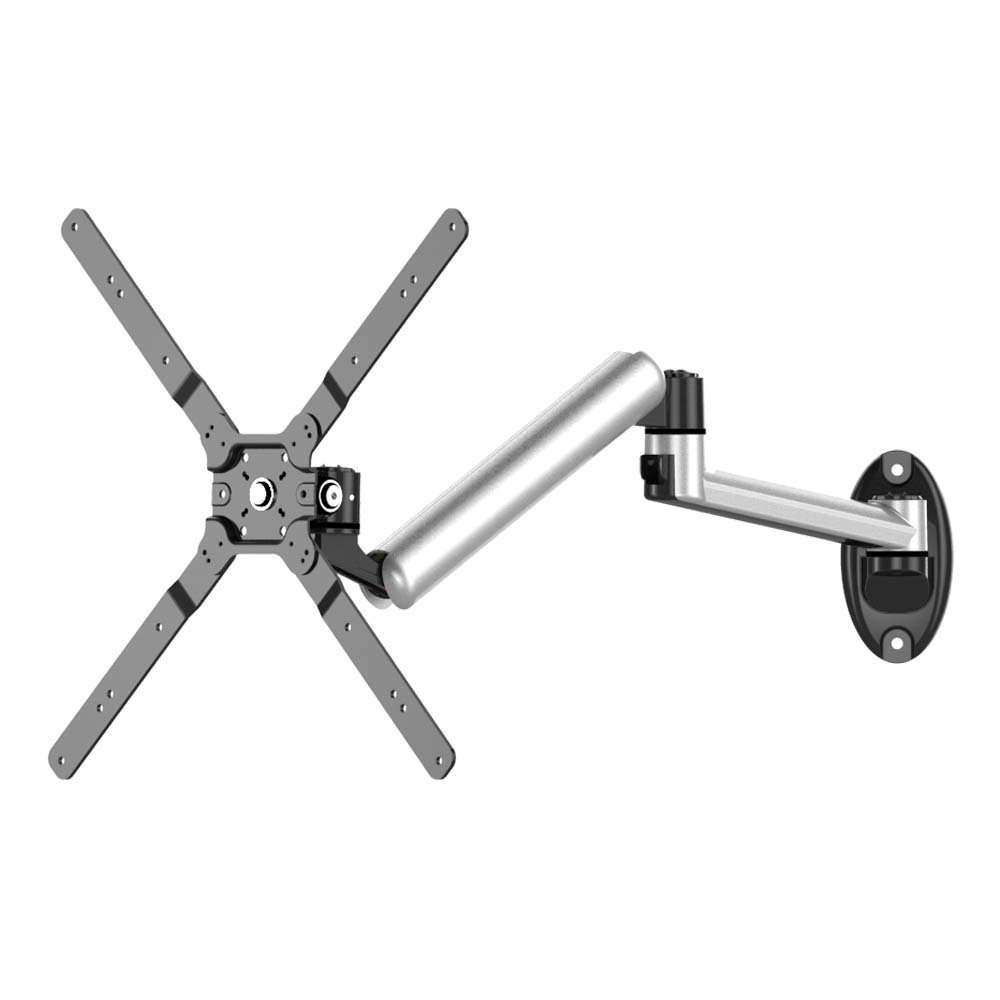

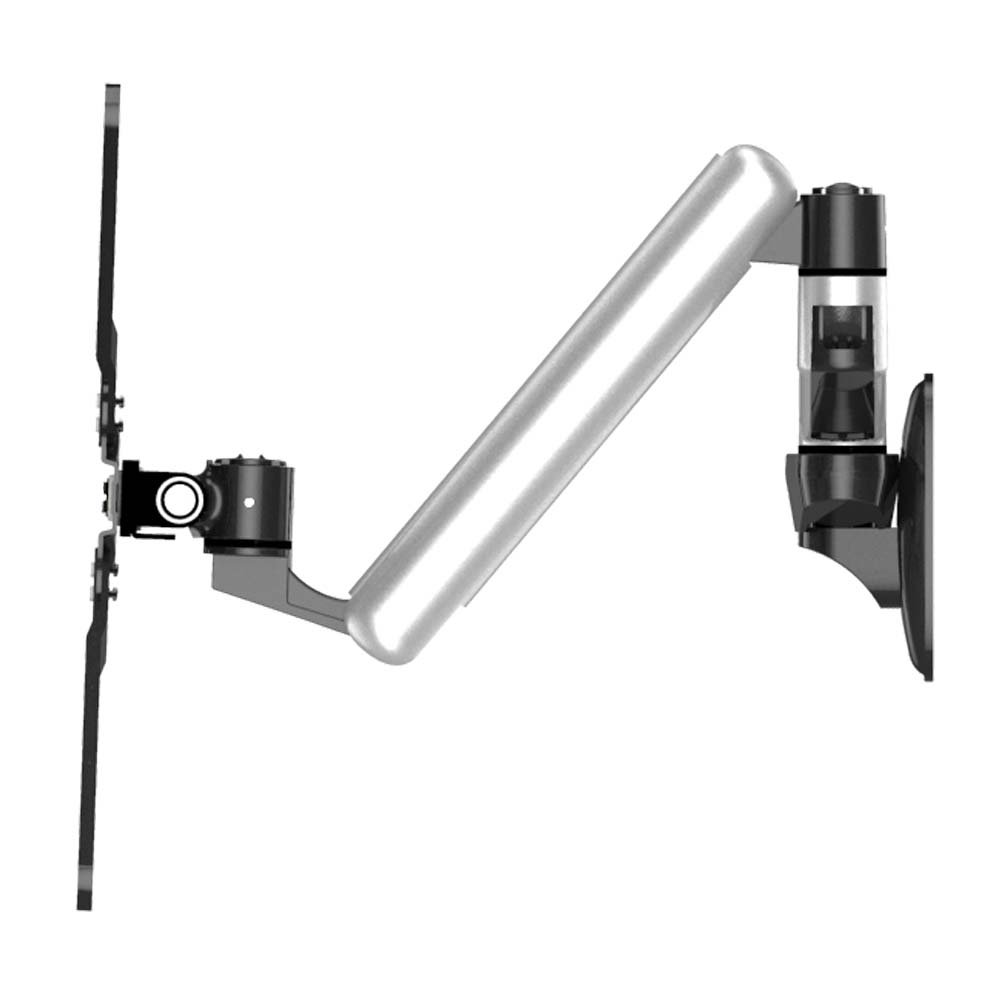

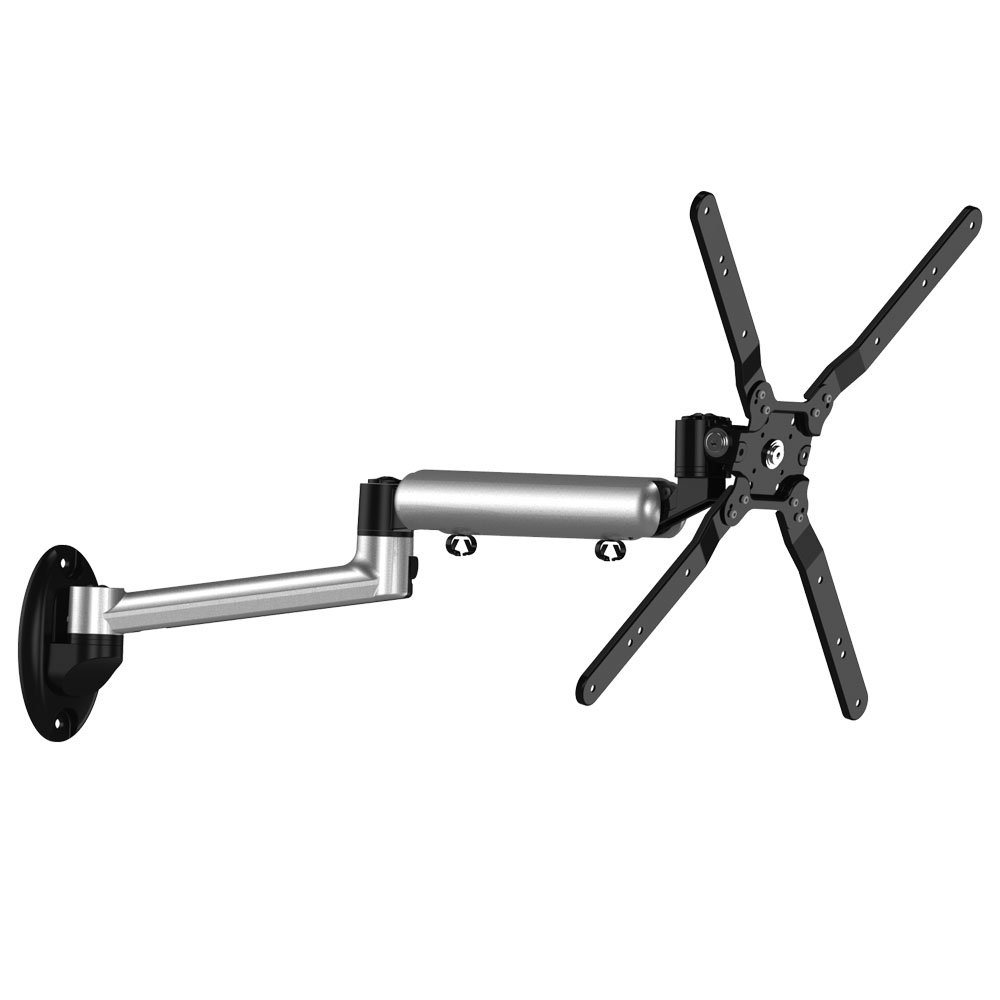

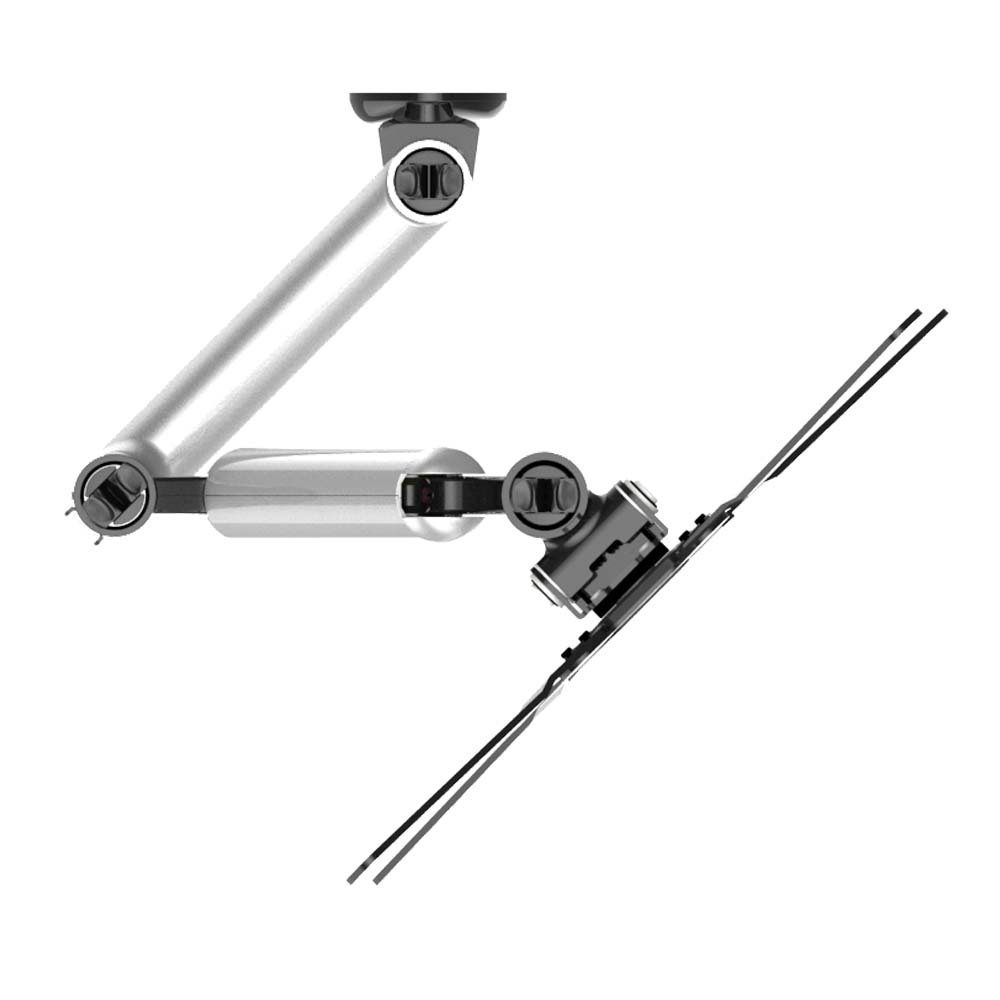

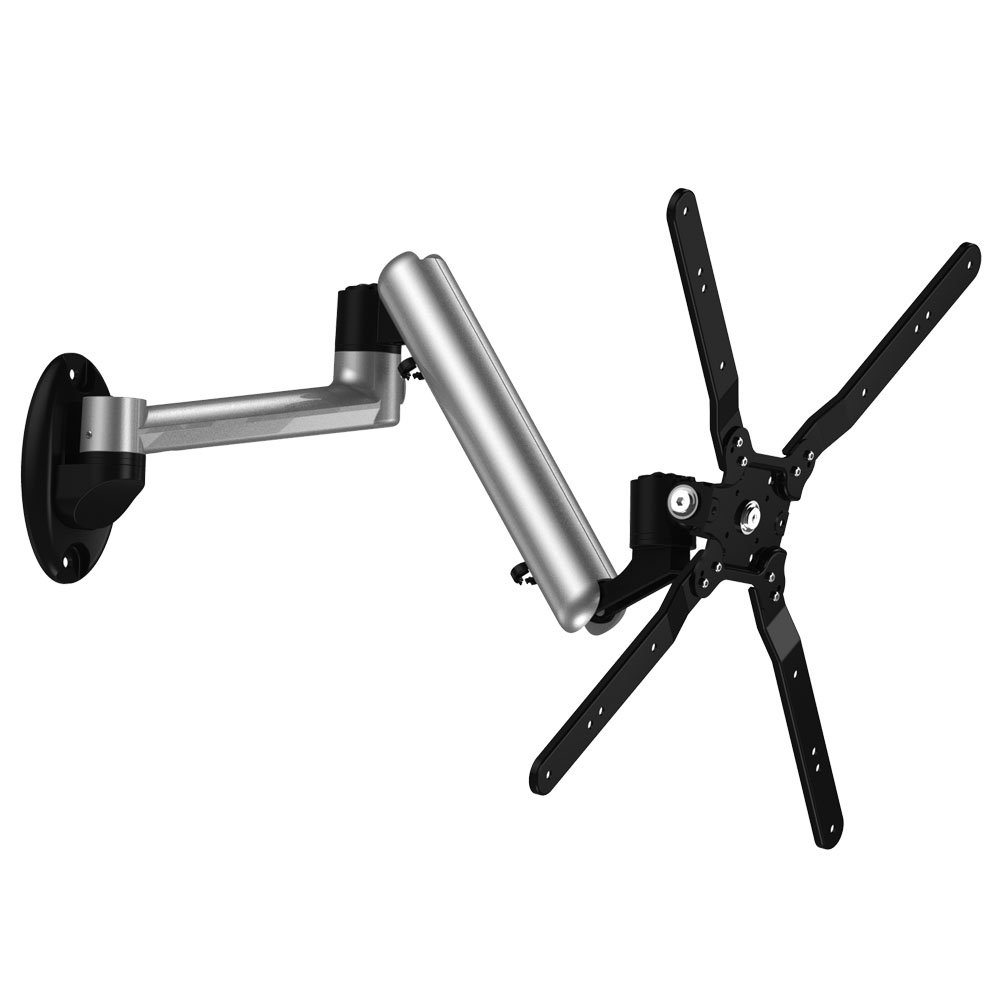

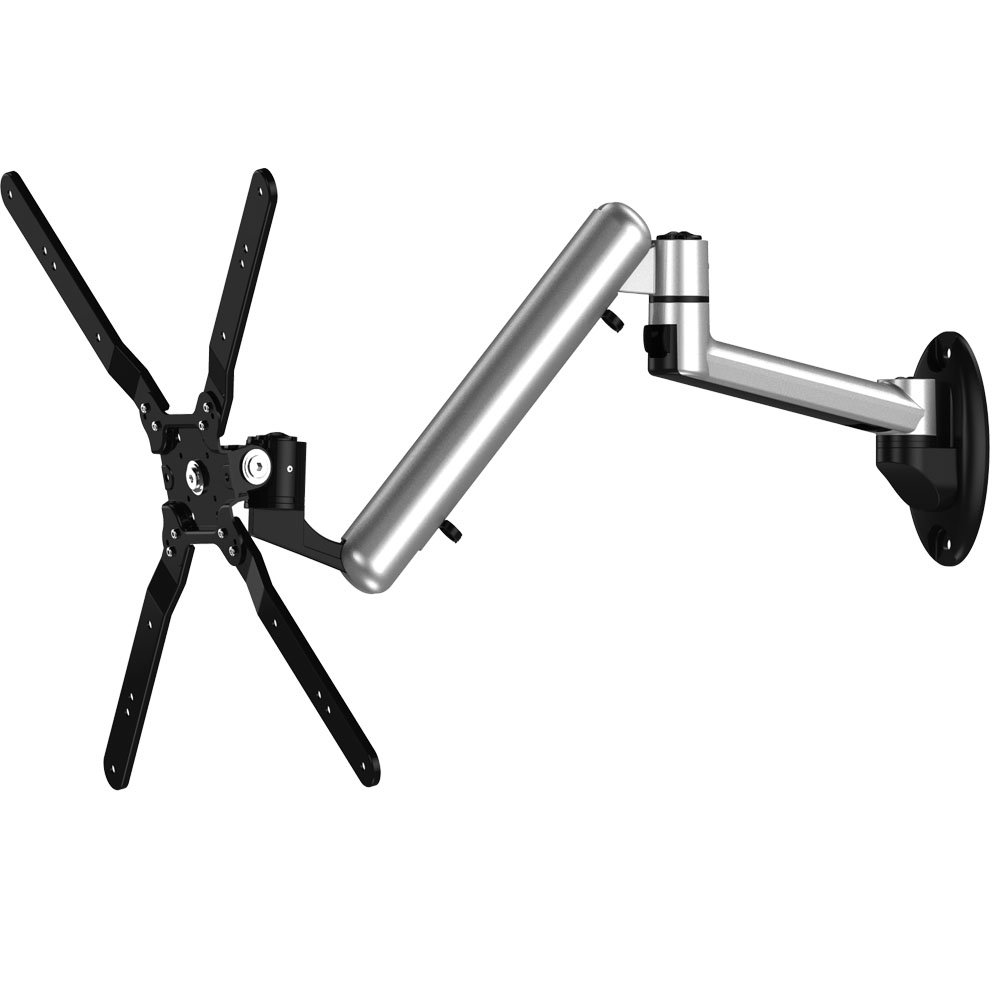

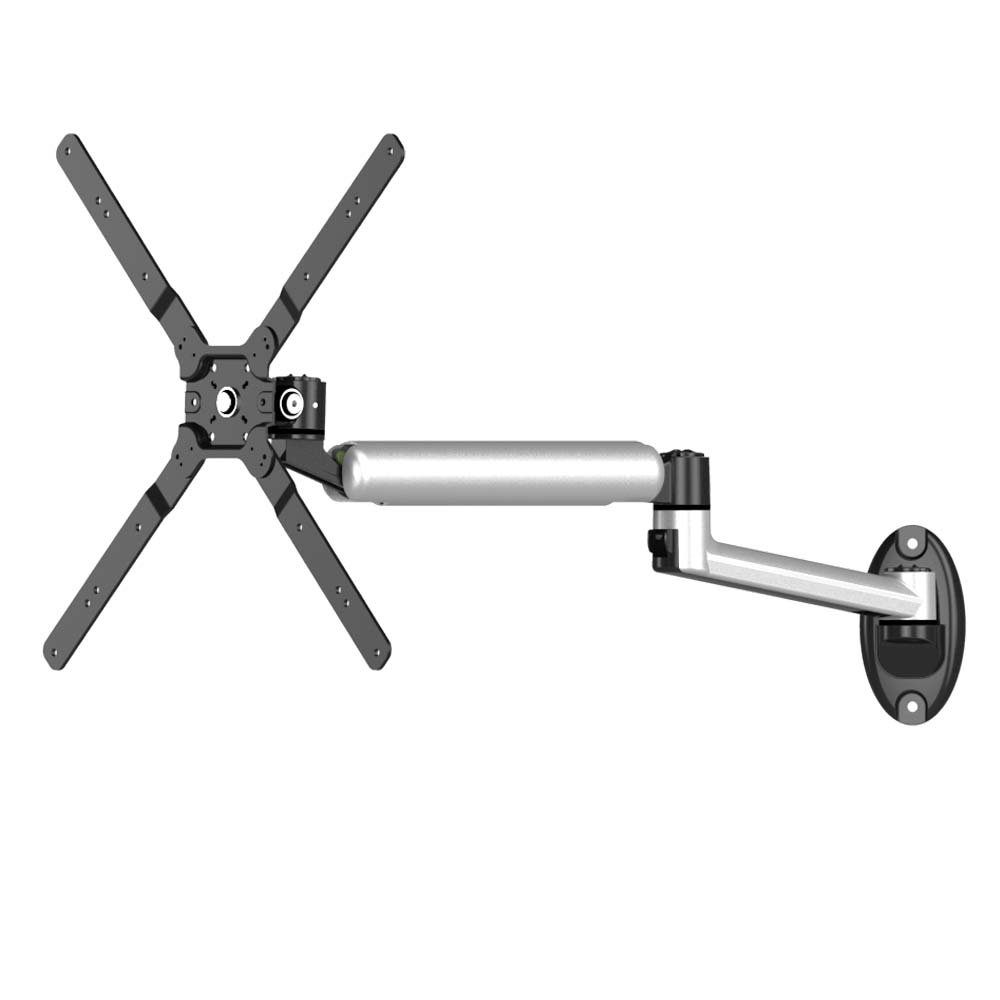

The unique and creative Corner TV Wall Mount - Rotating Height Adjustable Full Motion 32 – 50” has 3 pivot points. The TV mount can achieve best viewing positions by full motion functionality and it is especially ideal for corner mounting (works great on non-corner too!). The wall mount solution has weight capacity of 44 lbs (20 kgs), featuring 115 degree tilt, 180 degree swivel & 30 inch full extension. This flat screen swivel TV wall mount boasts integrated strength through the latest engineering technology, and is tested for durability in our offshore manufacturing plant. The corner wall mount has been built with the end user in mind, and features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. If you need more information about how to select TV wall mounts please click here.
Corner Installation Demonstration Images
When placing corner wall mount on the right side of the wall, flat screen TV can be extended leftward to be positioned at the center of the corner. After viewing, TV can be stored away flush against the right side of the wall.
When placing corner wall mount on the left side of the wall, flat screen TV can be extended leftward to be positioned at the center of the corner. After viewing, TV can be stored away flush against the left side of the wall.
Click here for other corner mounts choices.
