Corner TV Wall Mount - Full Motion 32 to 57" MW-6A1B

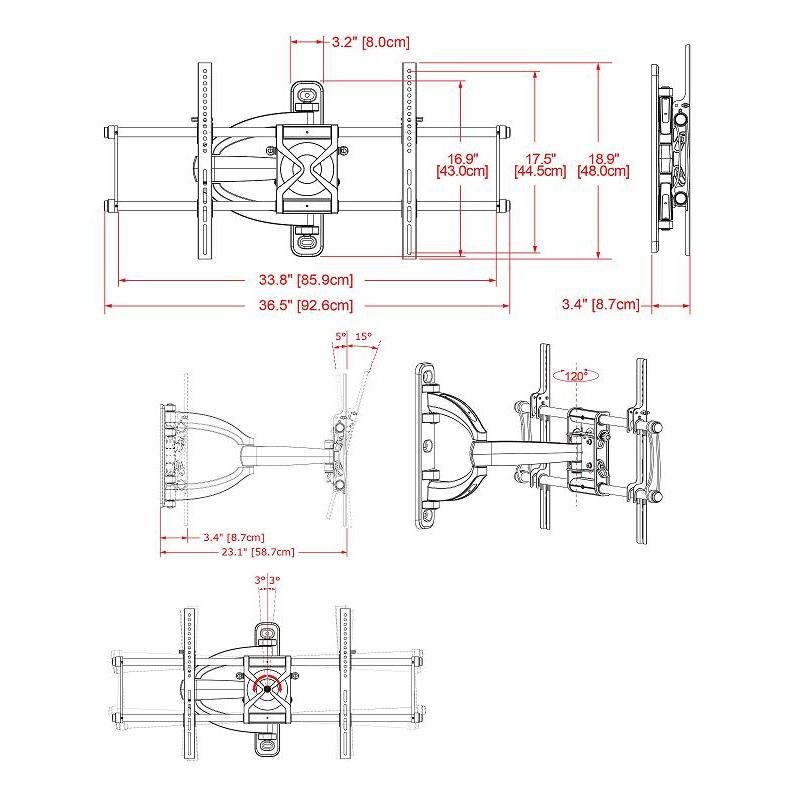

Specifications

	Fits most:	32" to 57" flat panels
	Weight Capacity:	Supports up to 54.5kgs(120lbs)
	Tilt:	5° / - 15°
	Swivel:	Max 180°
	Mounting profile:	3.4" (86.9mm) Depth From Wall
	Maximum extension:	23.1" (586.9mm)
	Mounts on Studs:	single-stud
	Mounting Pattern:	Universal & VESA compliant: 200x200 to 800x400
	Roll:	3° / - 3°

Features

• Work with plasma, LCD and LED TVs
• Compatible with large mounting patterns, which is usually hard to find wall mount for, for example, most of Sharp 65"+ LCD TVs
• Effortless adjustments for premium viewing, making it easy to reduce glare and find the perfect TV angle at any height
• Sturdy die-cast aluminum structures maximize support in a lightweight mount; rock-solid construction secures your display investment
• Space-saving; if you plan to mount your flat screen at a corner, this is a perfect solution
• The mounted TV can be hung on and off the horizontal bars easily; this quick release feature is most convenient when you need to take off TV often
• Hinged arm extends TV off the wall, providing easy access to cables
• Easy accessory attachment; quick-mounting design for easy installation
• Lock-in-place feature to conclude a secure installation
• The aesthetic design makes it perfect for the home or office
• Instruction manual and mounting screws are included

Mounting Pattern

You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise, you can measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters.

Product Description

Corner TV Wall Mount - Full Motion 32 – 57” MW-6A1B is a completely full-motion mount, with a weight capacity of 120lbs (54.5kgs), featuring 5 - 15-degree tilt, 180-degree swivel, 23.1-inch full extension & -3 to 3-degree roll. The flat-screen cantilever TV wall mount is our latest breakthrough in flat panel mount design and is especially ideal for corner mounting (works excellent on non-corner too!). The TV mount boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The corner wall mount has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. If you need more information about how to select TV wall mounts, please click here. Please note that this TV wall mount is specially designed for mounting patterns up to 800x400. For TVs with mounting patterns no larger than 600x400, you may choose MW-5A1B instead.

Corner Installation Demonstration Images

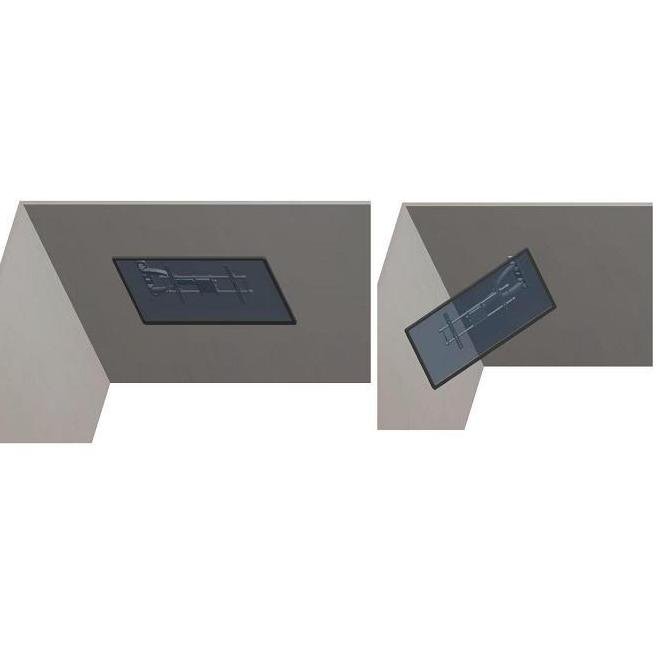

When placing the corner wall mount on the right side of the wall, flat-screen TV can be extended leftward to be positioned at the center of the corner. After viewing, TV can be stored away flush against the right side of the wall.

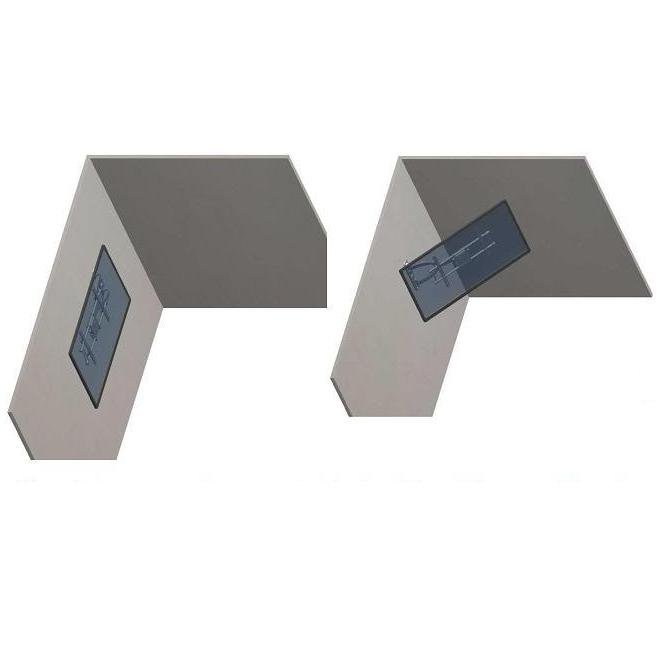

When placing the corner wall mount on the left side of the wall, flat-screen TV can be extended leftward to be positioned at the center of the corner. After viewing, TV can be stored away flush against the left side of the wall.

Click here for other corner mounts choices.
