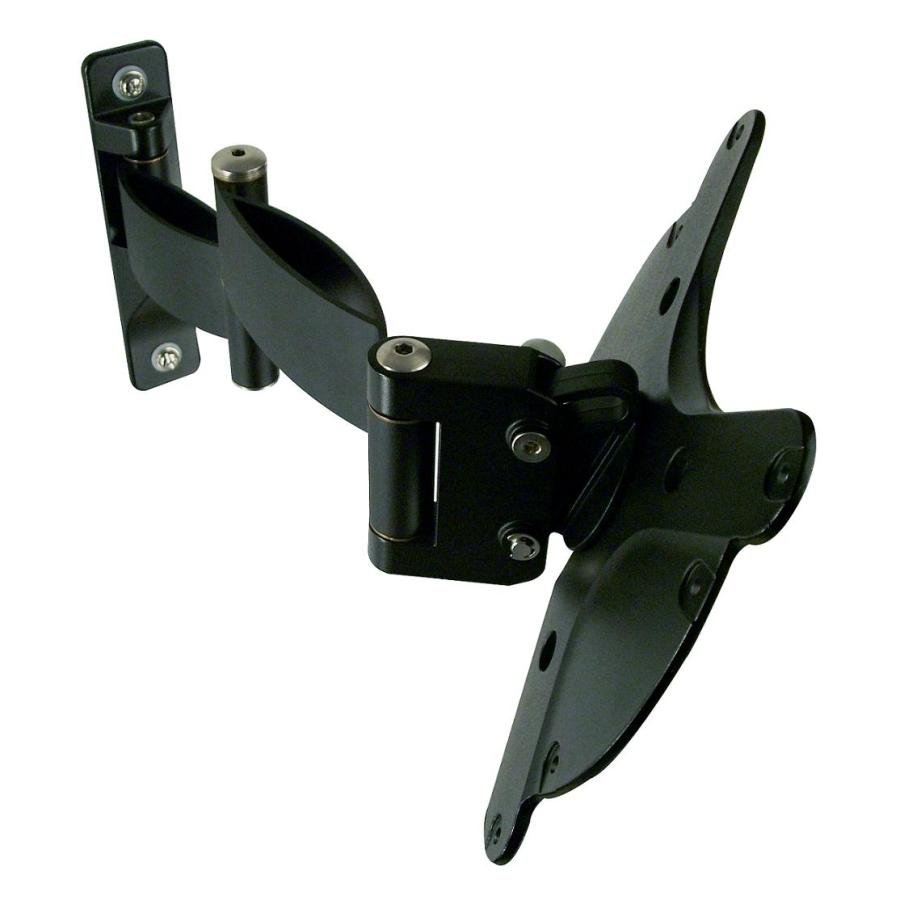

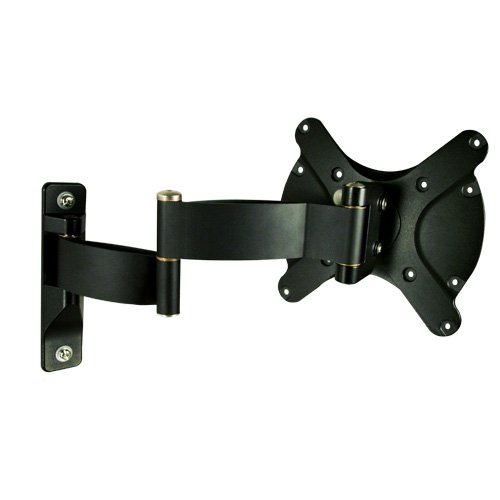

Corner TV Wall Mount - Full Motion 22 to 37" MW-3A3B
Specifications
 |
Fits most: | 22" to 37" flat panels |
 |
Weight Capacity: | Supports up to 27.3kg(60lbs) |
 |
Tilt: | 5° / - 20° |
 |
Swivel: | Max 120° |
 |
Mounting profile: | 3.5" (89.6mm) Depth From Wall |
 |
Maximum extension: | 16.4" (415.6mm) |
 |
Mounts on Studs: | Single-stud |
 |
Mounting Pattern: | VESA compliant: 100x100 to 200x200 |
Features
- Work with plasma, LCD and LED TVs
- Effortless adjustments for premium viewing, making it easy to reduce glare and find the perfect TV angle at any height
- Sturdy die-cast aluminum structures maximize support in a lightweight mount; rock-solid construction secures your display investment
- Wall piece (the plate connects to the wall) dimensions: 2" (W) X 9" (H)
- Space-saving; if you plan to mount your flat screen at a corner, this is a perfect solution
- Hinged arm extends TV off the wall, providing easy access to cables
- Secure accessory attachment; quick-mounting design for easy installation
- Lock-in-place feature to conclude a secure installation
- The aesthetic design makes it perfect for the home or office
- Instruction manual and mounting screws are included
Service and Support
Mounting Pattern
You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise, you can measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to convert to millimeters: 100mm = 3.94 inches; 200 mm = 7.87 inches; 300mm = 11.8 inches; 400 mm = 15.7 inches.
Product Description
The unique and creative Corner TV Wall Mount - Full Motion 22 – 37” MW-3A3B has three pivot points. The TV mount can achieve the best viewing positions by full motion functionality, and it is especially ideal for corner mounting (works excellent on non-corner too!). The wall mount solution has a weight capacity of 60lbs (27.3kgs), featuring 5 - 20-degree tilt, 180-degree swivel & 16.4-inch full extension. This flat screen swivel TV wall mount boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The corner wall mount has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. If you need more information about how to select TV wall mounts, please click here.
Corner Installation Demonstration Images

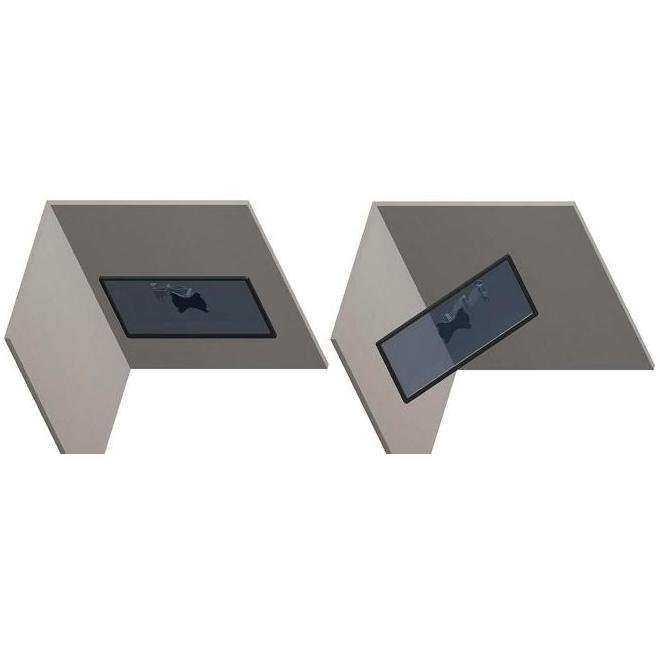

When placing the corner wall mount on the right side of the wall, flat-screen TV can be extended leftward to be positioned at the center of the corner. After viewing, TV can be stored away flush against the right side of the wall.

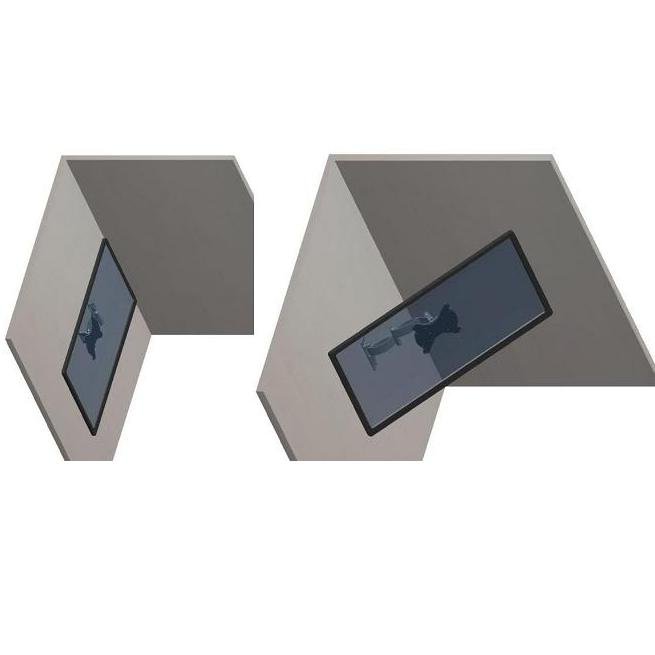

When placing the corner wall mount on the left side of the wall, flat-screen TV can be extended leftward to be positioned at the center of the corner. After viewing, TV can be stored away flush against the left side of the wall.
Click here for other corner mounts choices.
Downloads
Installation Manual These downloads require Adobe Reader. To get Adobe Reader to click here.
Q & A
Q: What are the sizes of the screws included?
A: The ones for the wall are M6 X 60; The ones for TV included are M4, M5, and M6. Each comes with 20mm and 40mm in length. There are plastic spacers included as well.
