|Fits most:||42" to 71" flat panels|
|Weight Capacity:||Supports up to 90.9kg(200lbs)|
|Tilt:||5° / - 15°|
|Mounting profile:||3.4" (86.9mm) Depth From Wall|
|Maximum extension:||23.1" (586.9mm)|
|Mounts on Studs:||double-stud (mount spacing of 16")|
|Mounting Pattern:||Universal & VESA compliant: 200x200 to 600x400|
|Roll:||3° / - 3°|

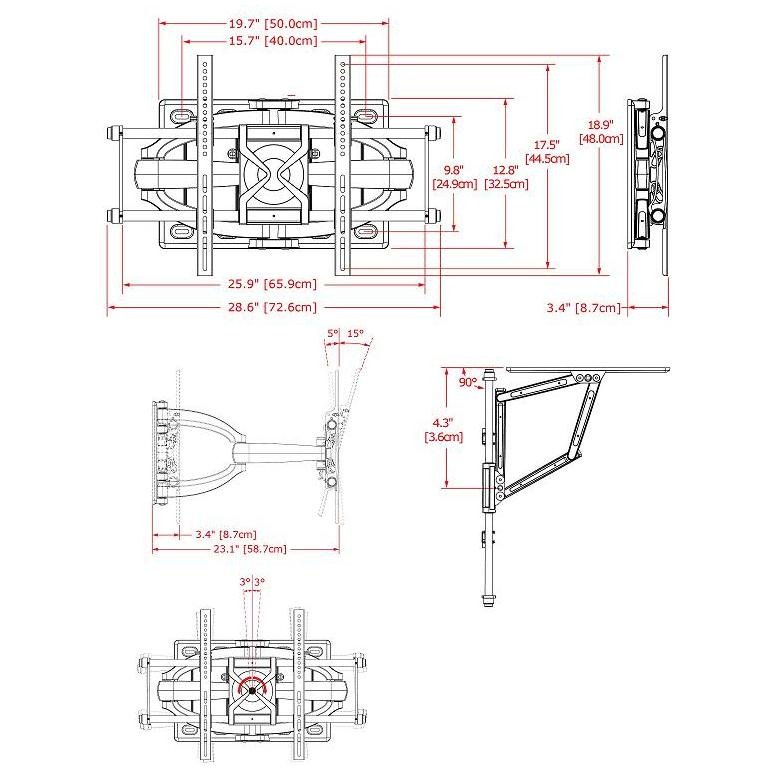

You may usually find mounting patterns dimensions on the technical drawing page of your owner's manual. Otherwise, you can measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your TV is different, and we are happy to help you out!

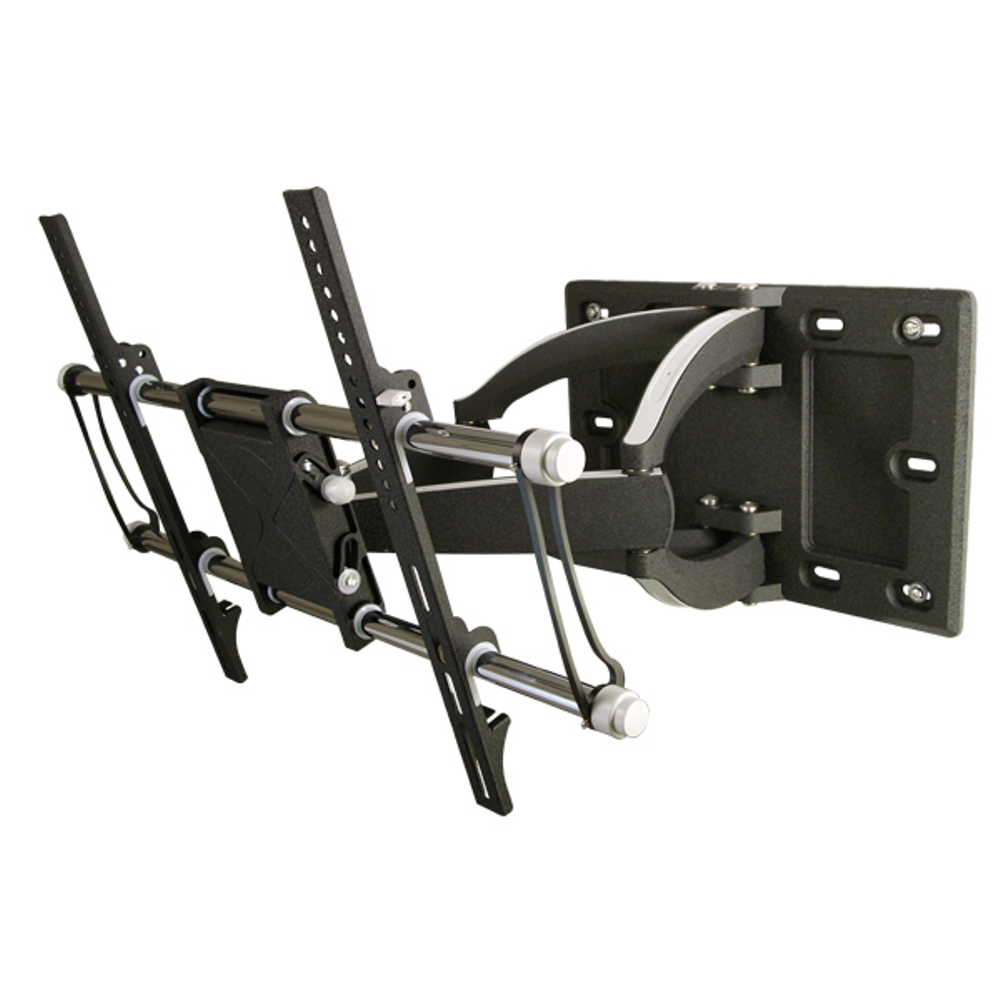

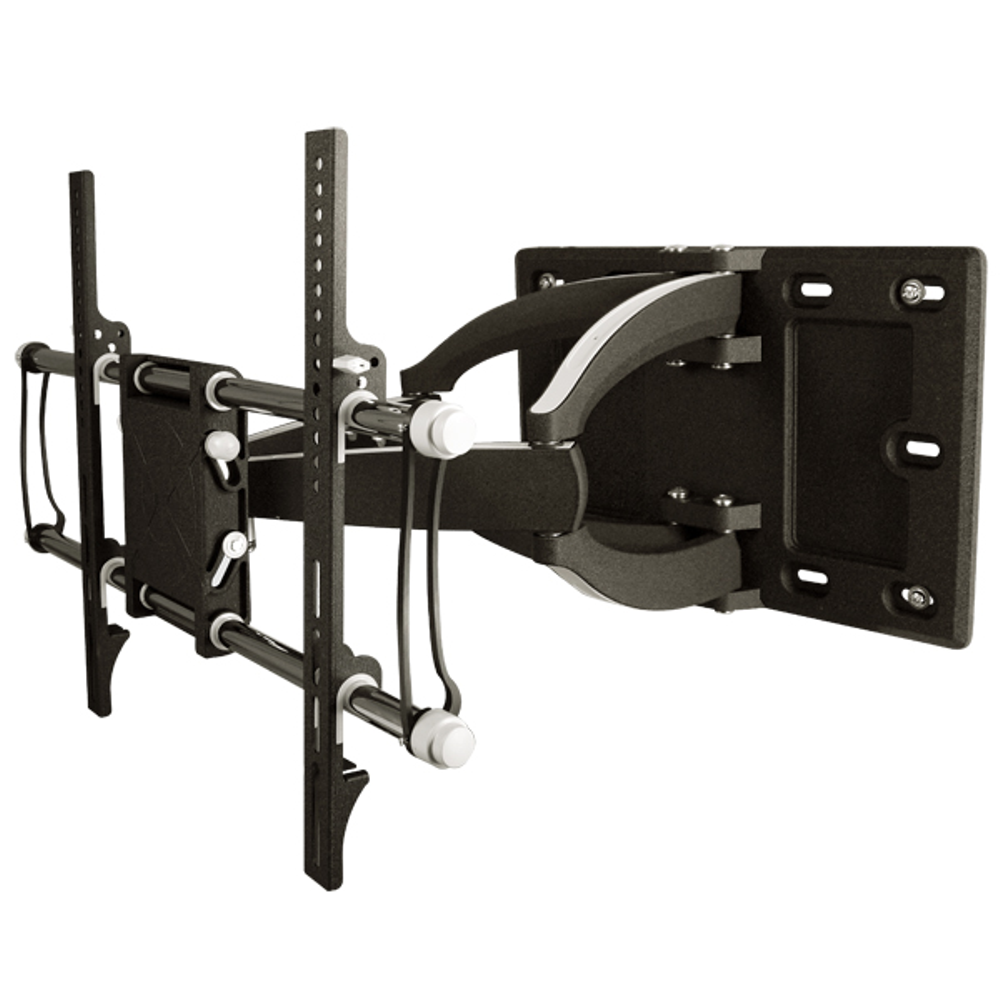

The new 42 to 71" Full Motion TV Wall Mount - Dual Arm MW-5D1VB is a completely full-motion mount for large size TV, with a weight capacity of 200lbs (90.9kgs), featuring 5 - 15-degree tilt, 180-degree swivel, 23.1-inch full extension & -3 to 3-degree roll. This flat screen cantilever wall mount is our latest breakthrough in flat panel mount design. The TV mount boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The Cotytech wall mount has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. If you need more information about how to select TV wall mounts, please click here.
