|Fits most:||37" to 62" Flat Panels|
|Weight Capacity:||Supports up to 125lbs (56.8kg)|
|Tilt:||+5° / - 16°|
|Mounting profile:||5" (126mm) Depth From Wall|
|Maximum extension:||24" (610mm)|
|Mounts on Studs:||Double-Stud|
|Mounting Pattern:||Universal & VESA Compliant: 100x100 to 400x600|

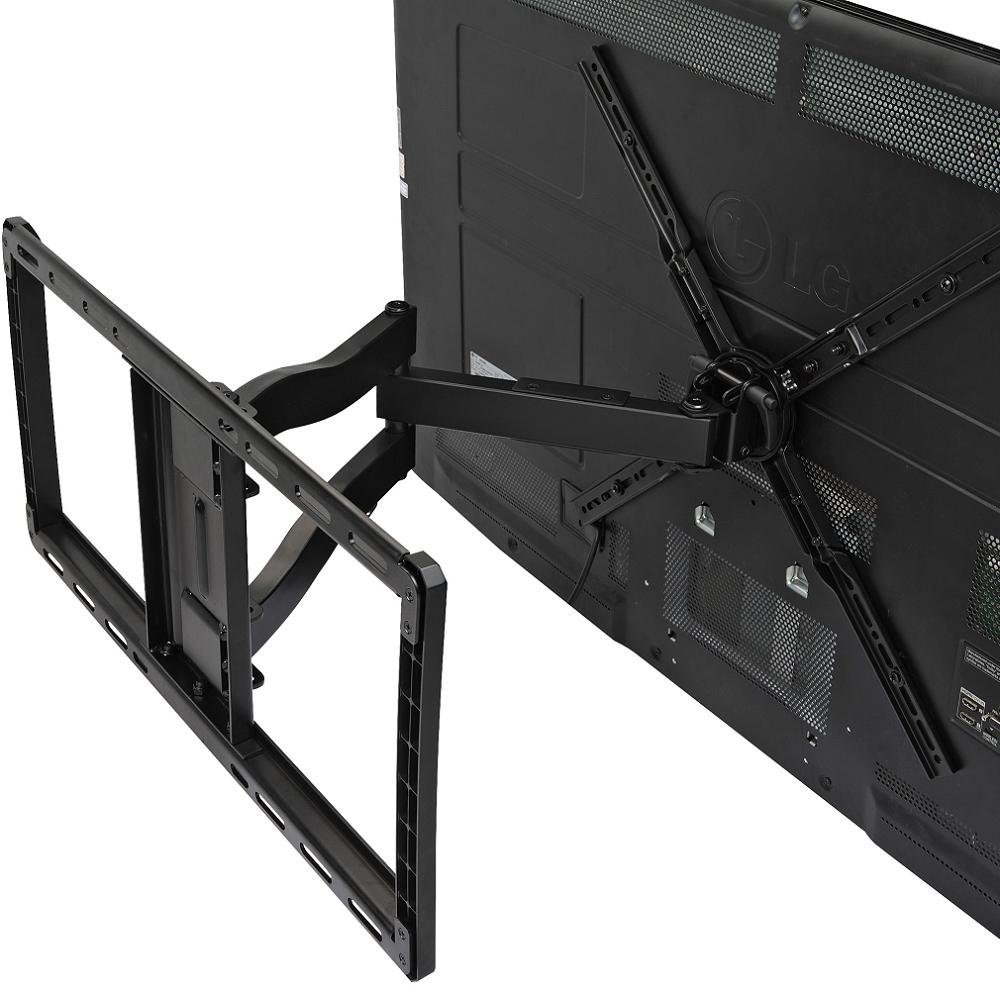

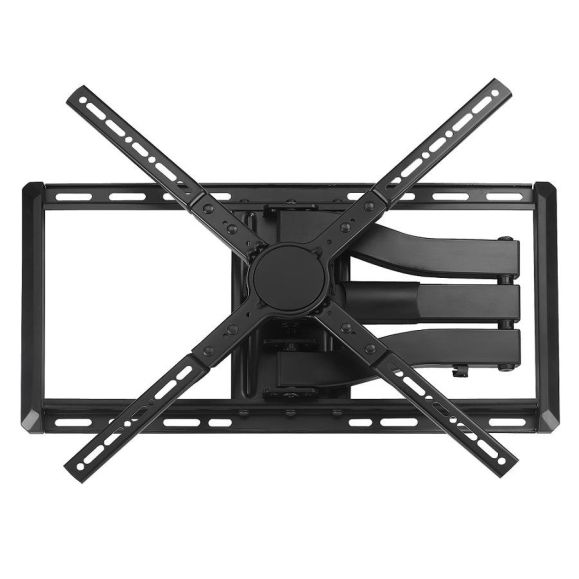

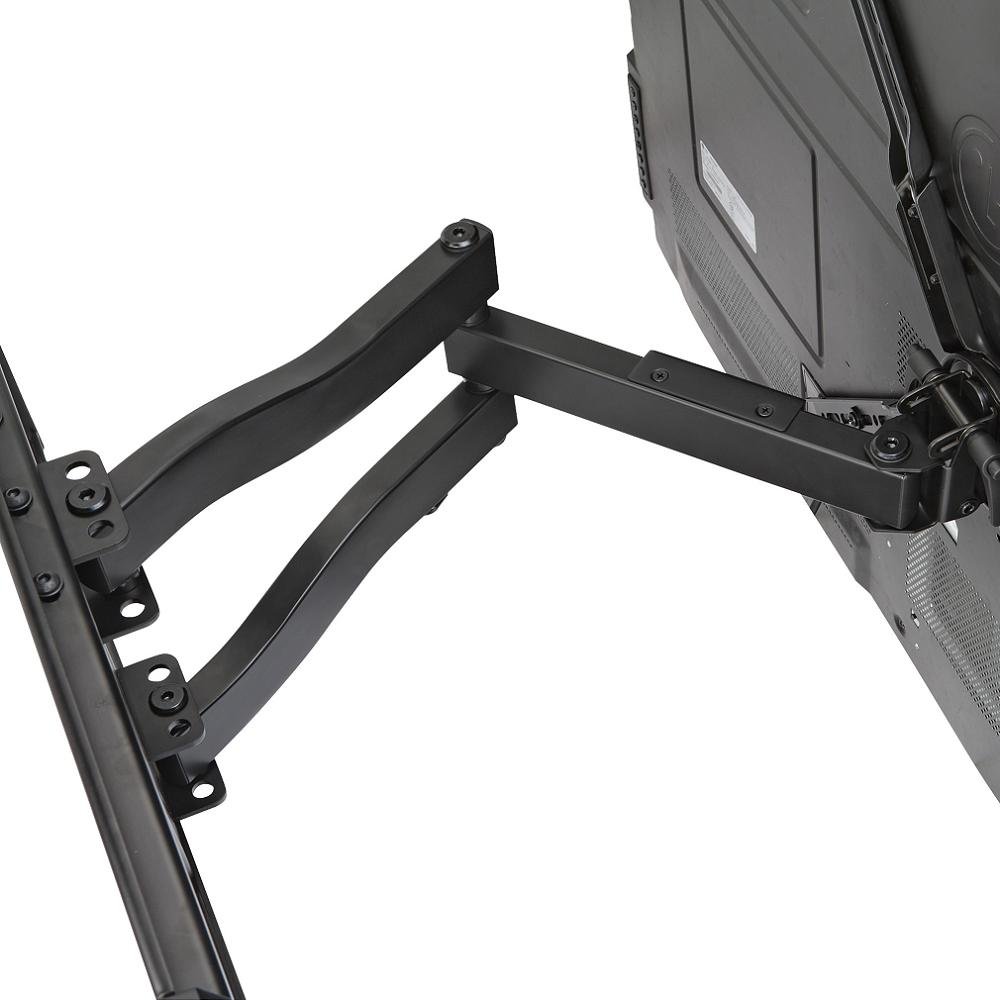

Our brand new 37 to 62" Full Motion TV Wall Mount MW-7A1VB is a completely full-motion mount for both small and large size TV, with a weight capacity of 125lbs (56.8kg), featuring +5 / -16 degree tilt, 180-degree swivel, and 24-inch full extension. This flat screen articulating TV wall mount is our latest breakthrough in flat panel mount design. The TV mount boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The Cotytech wall mount has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. If you need more information about how to select TV wall mounts, please click here.

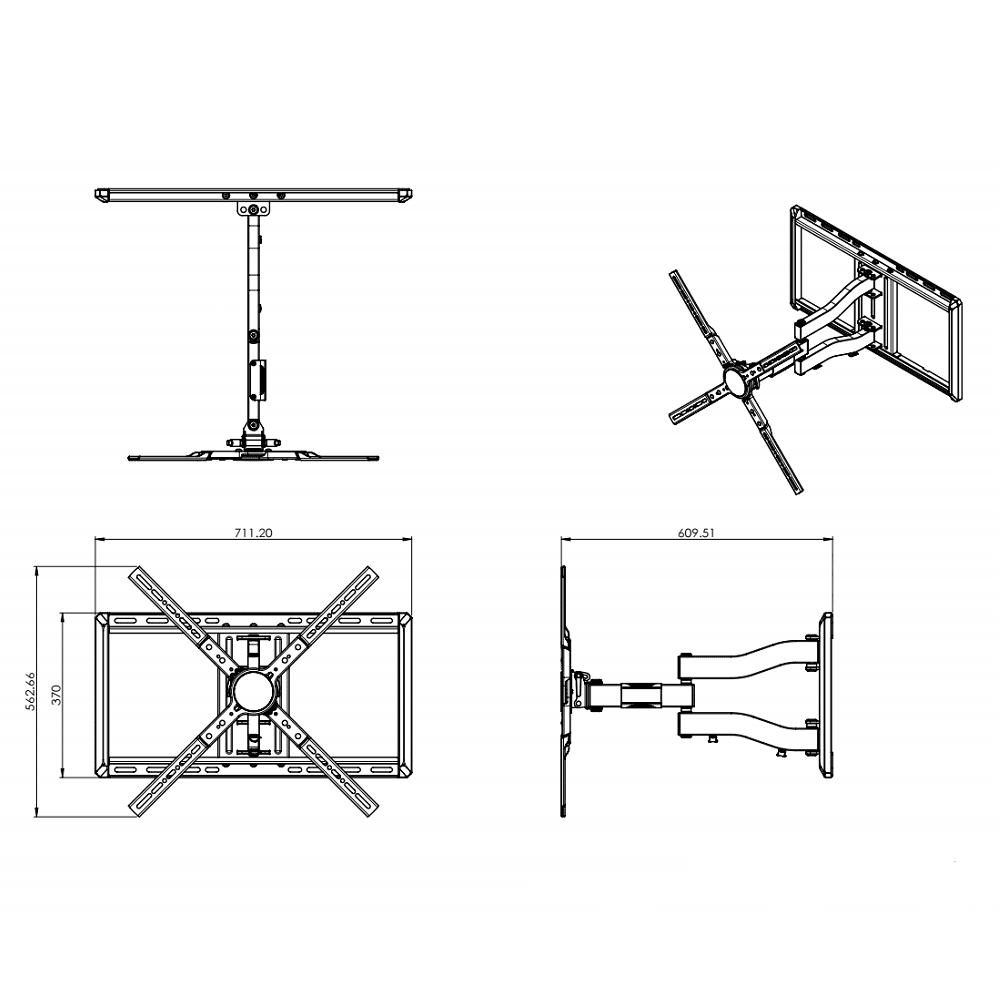

You may usually find mounting patterns dimensions on the technical drawing page of your owner's manual. Otherwise, you can measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your TV is different, and we are delighted to help you out!
