|Fits most:||32" to 71" flat panels|
|Weight Capacity:||Supports up to 79.5kgs(175lbs)|
|Mounting profile:||1.5" (38.5mm) Depth From Wall|
|Mounts on Studs:||double-stud (mount spacing of 16")|
|Mounting Pattern:||Universal & VESA compliant: 100x100 to 600x400|
You may usually find mounting patterns dimensions on the technical drawing page of your owner's manual. Otherwise, you can measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your TV is different, and we are happy to help you out!

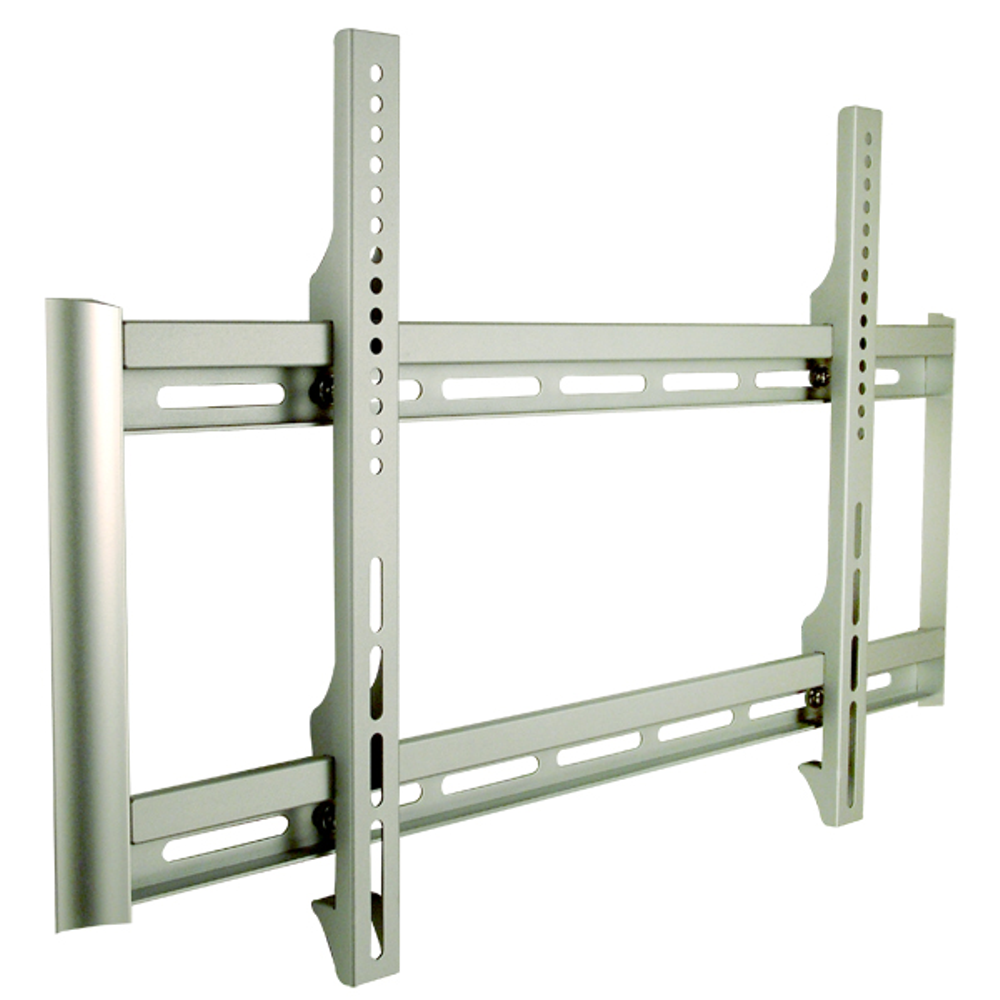

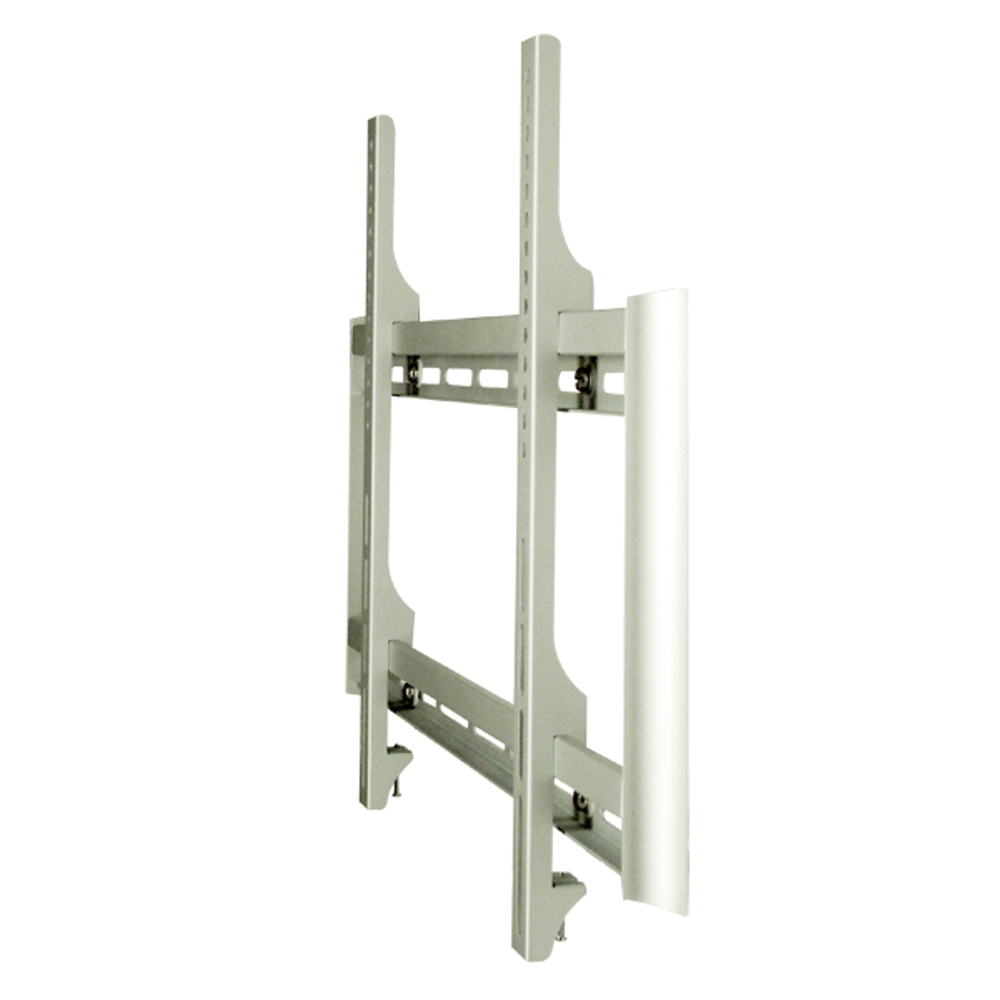

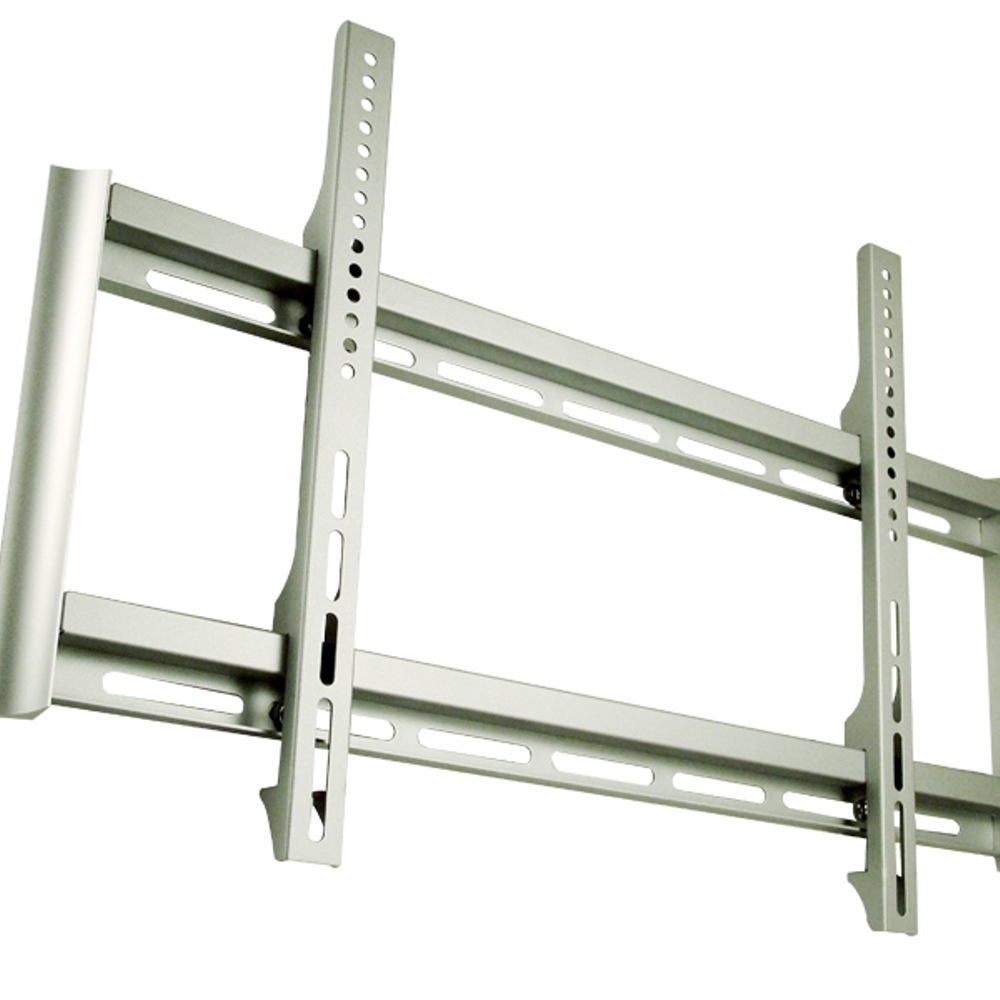

The new 32 to 71" TV Wall Mount - Flush to Wall MW-5F2S Silver is flat to wall mounting solution for small to large size TV. This flush to wall mount, with a weight capacity of 175lbs (79.5kgs), features 1.5" (38.5mm) ultra-low profile. This flat-screen TV wall mount solves top flat panel installation problems. The TV mount boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The Cotytech wall mount has been built with the end-user in mind. It features easy installation, easy post-installation fine-tuning while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. If you need more information about how to select TV wall mounts, please click here.
These downloads require Adobe Reader. To get Adobe Reader to click here.
