|Fits most:||32" to 63" flat panels|
|Weight Capacity:||Supports up to 63.6kg(140lbs)|
|Tilt:||5° / - 15°|
|Mounting profile:||3.4" (86.9mm) Depth From Wall|
|Maximum extension:||23.1" (586.9mm)|
|Mounts on Studs:||double-stud (mount spacing of 16")|
|Mounting Pattern:||Universal & VESA compliant: 100x100 to 800x400|
|Roll:||3° / - 3°|

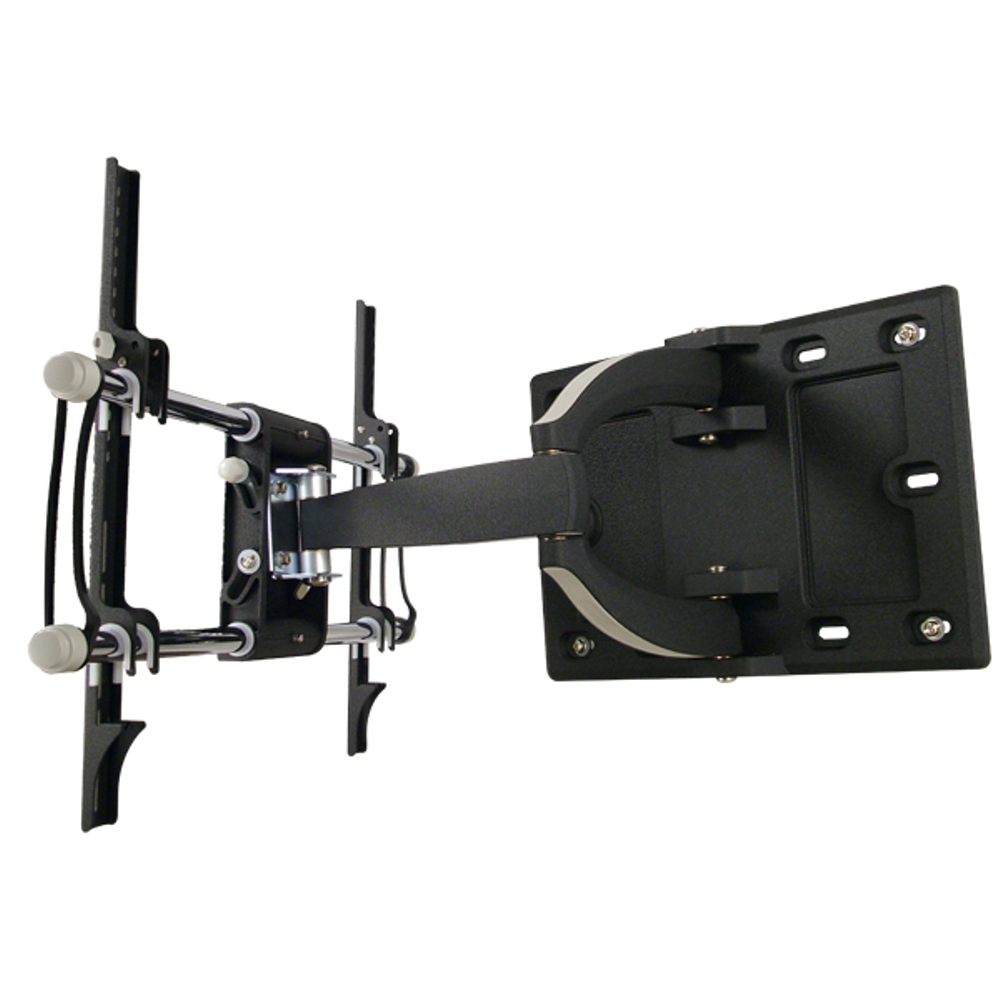

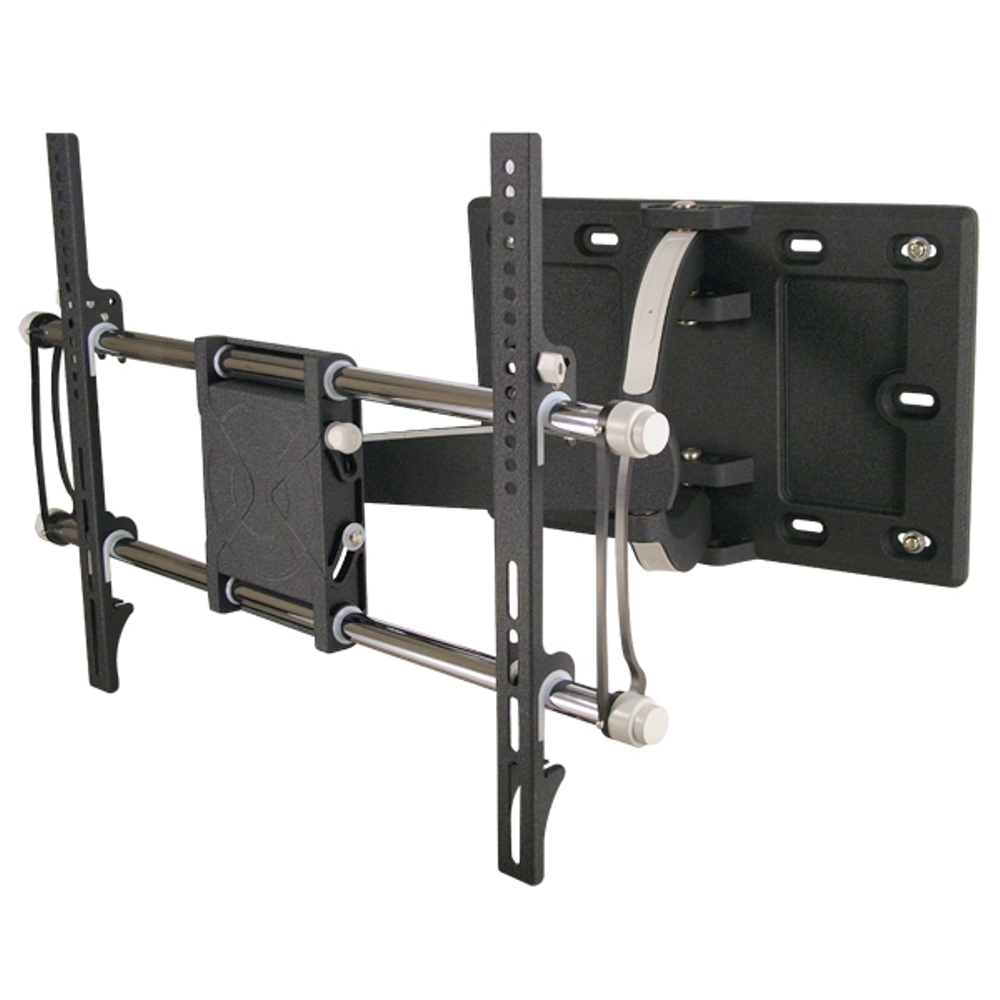

The new 32 to 63" Full Motion TV Wall Mount VESA 800x400 is a completely full motion mount for both small and large size TV, with weight capacity of 140lbs (63.6kgs), featuring 5 - 15 degree tilt, 180 degree swivel, 23.1 inch full extension & -3 to 3 degree roll. This articulating universal TV wall mount is our latest breakthrough in flat panel mount design. The wall mount boasts integrated strength through the latest engineering technology, and is tested for durability in our offshore manufacturing plant. The Cotytech TV mount has been built with the end user in mind, and features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. If you need more information about how to select TV wall mounts please click here.

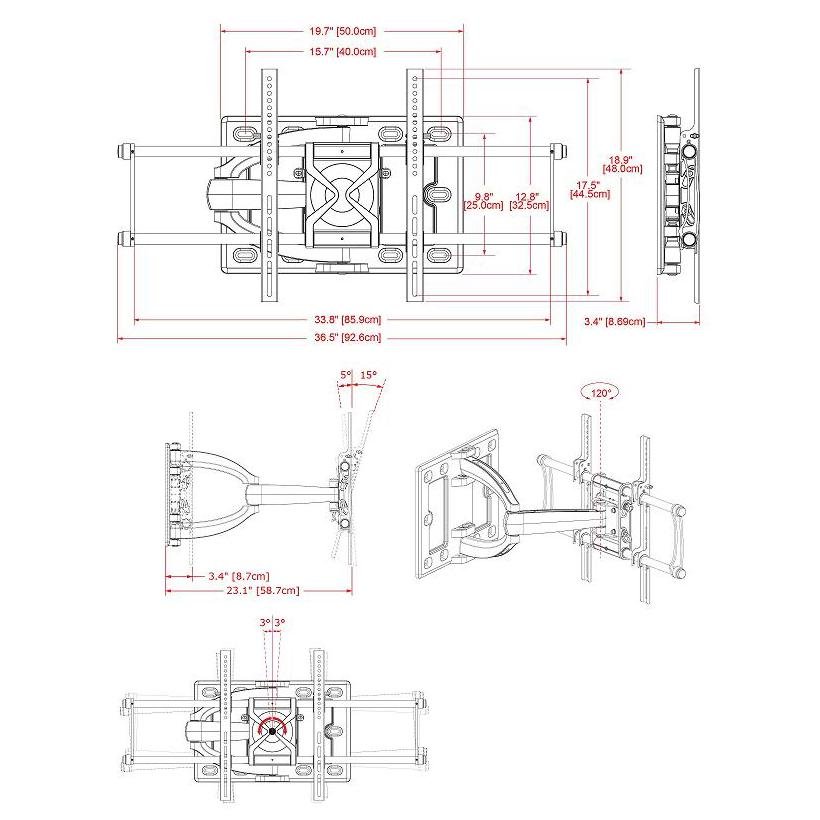

You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your TV is different and we are very glad to help you out!
