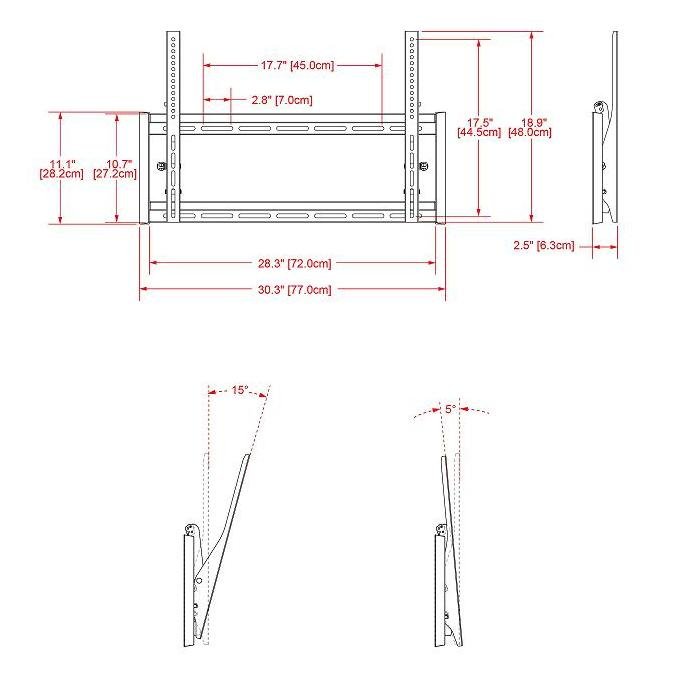

|Fits most:||32" to 71" flat panels|
|Weight Capacity:||Supports up to 79.5kg(175lbs)|
|Tilt:||5° / - 15°|
|Mounting profile:||2.5" (62.8mm) Depth From Wall|
|Mounts on Studs:||double-stud (mount spacing of 16")|
|Mounting Pattern:||Universal & VESA compliant: 100x100 to 600x400|
You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters. Feel free to contact us if the mounting pattern of your TV is different and we are very glad to help you out!

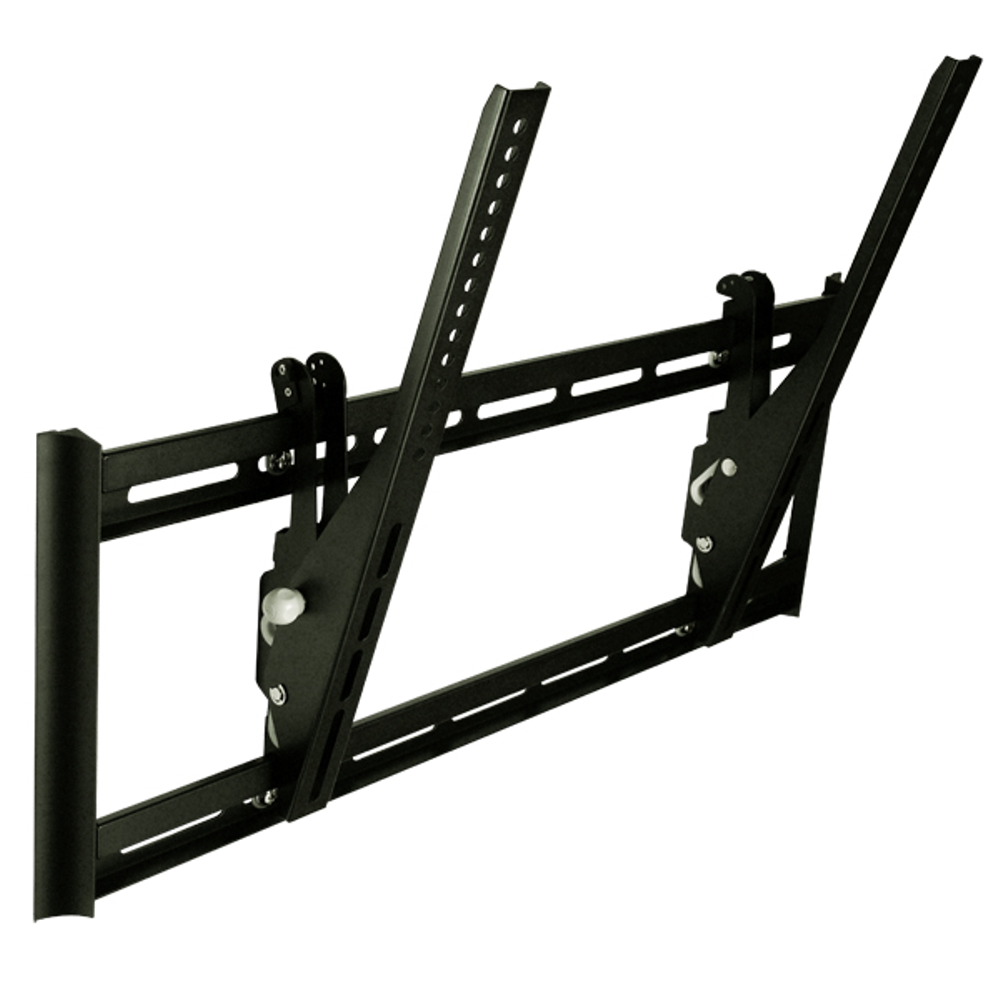

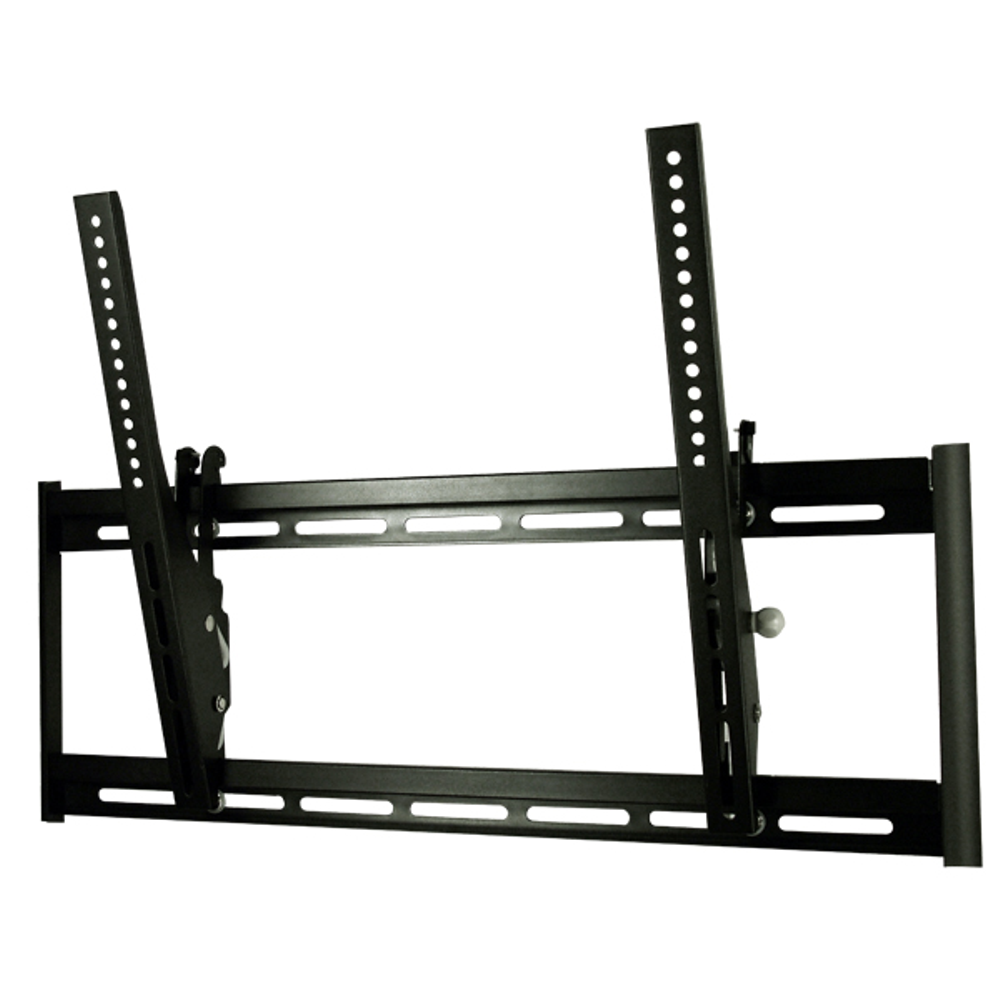

32 to 71" Tilting TV Wall Mount MW-5T2B is a tilt mount, with weight capacity of 175lbs (79.5kgs), featuring 5 - 15 degree tilt & 2.5” slim mounting profile. This flat screen tilting TV wall mount is an extremely stable large display and TV wall mount solution. The TV mount boasts integrated strength through the latest engineering technology, and is tested for durability in our offshore manufacturing plant. The Cotytech wall mount has been built with the end user in mind, and features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. Anyone at the office or at home can effortlessly adjust the screen by tilting. If you need more information about how to select TV wall mounts please click here.
These downloads require Adobe Reader. To get Adobe Reader click here.
