|Fits most:||22" to 37" flat panels|
|Weight Capacity:||Supports up to 36.4kg(80lbs)|
|Tilt:||5° / - 20°|
|Mounting profile:||4.3" (110mm) Depth From Wall|
|Maximum extension:||11" (279mm)|
|Mounts on Studs:||single-stud|
|Mounting Pattern:||VESA compliant: 100x100 to 200x200|
Service and Support

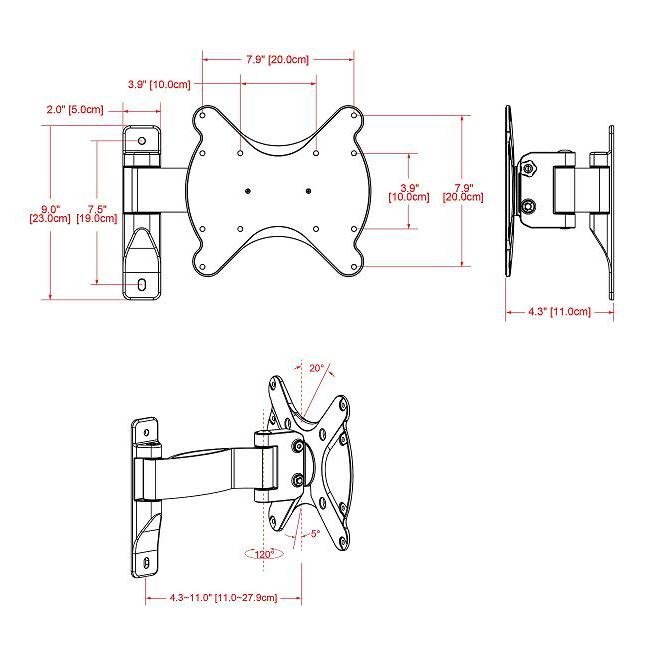

You may usually find mounting patterns dimensions on the technical drawing page of your owner's manual. Otherwise, you can measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to convert to millimeters: 100mm = 3.94 inches; 200 mm = 7.87 inches; 300mm = 11.8 inches; 400 mm = 15.7 inches.

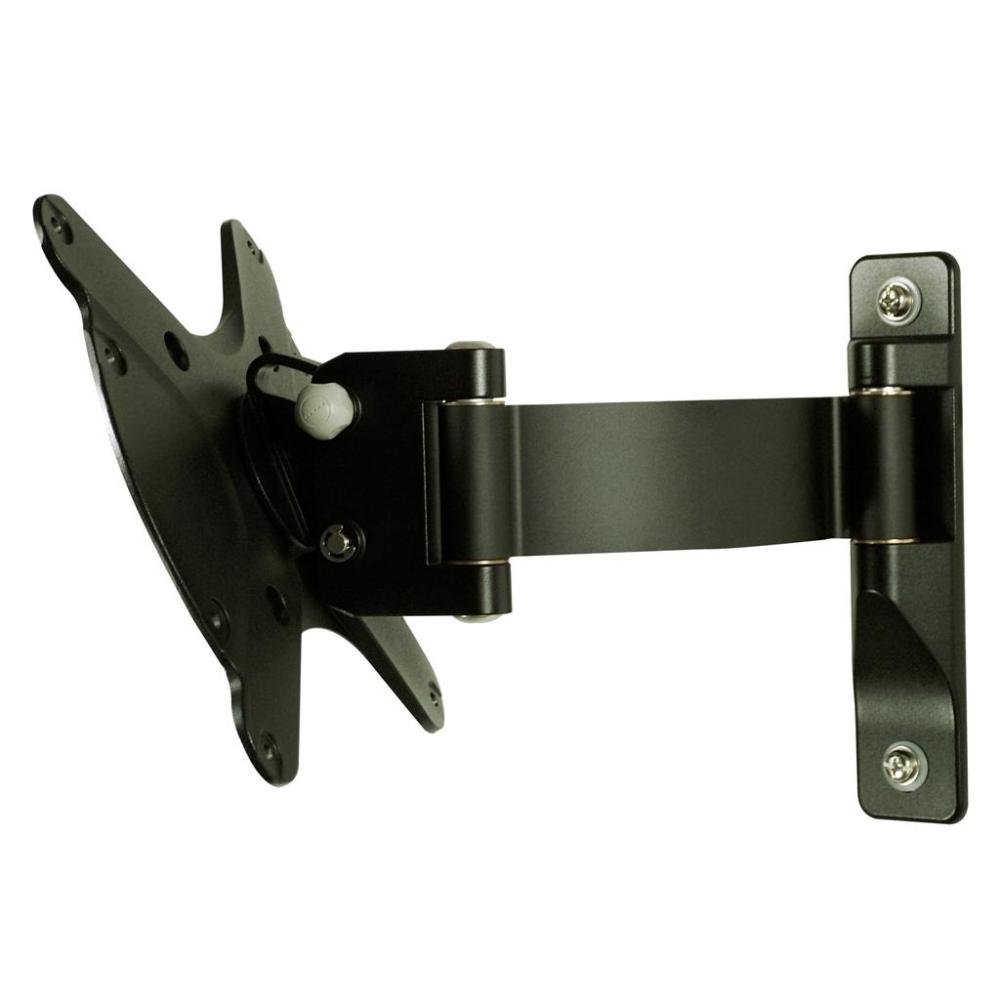

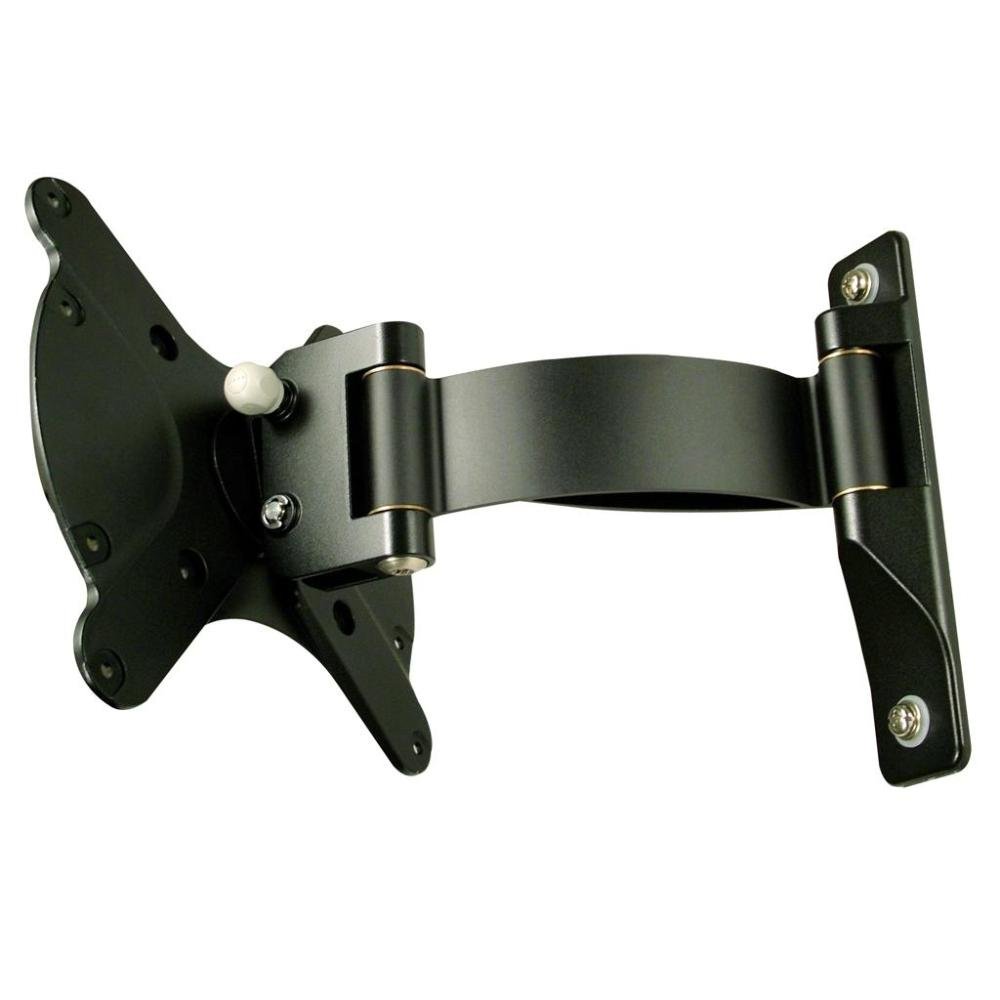

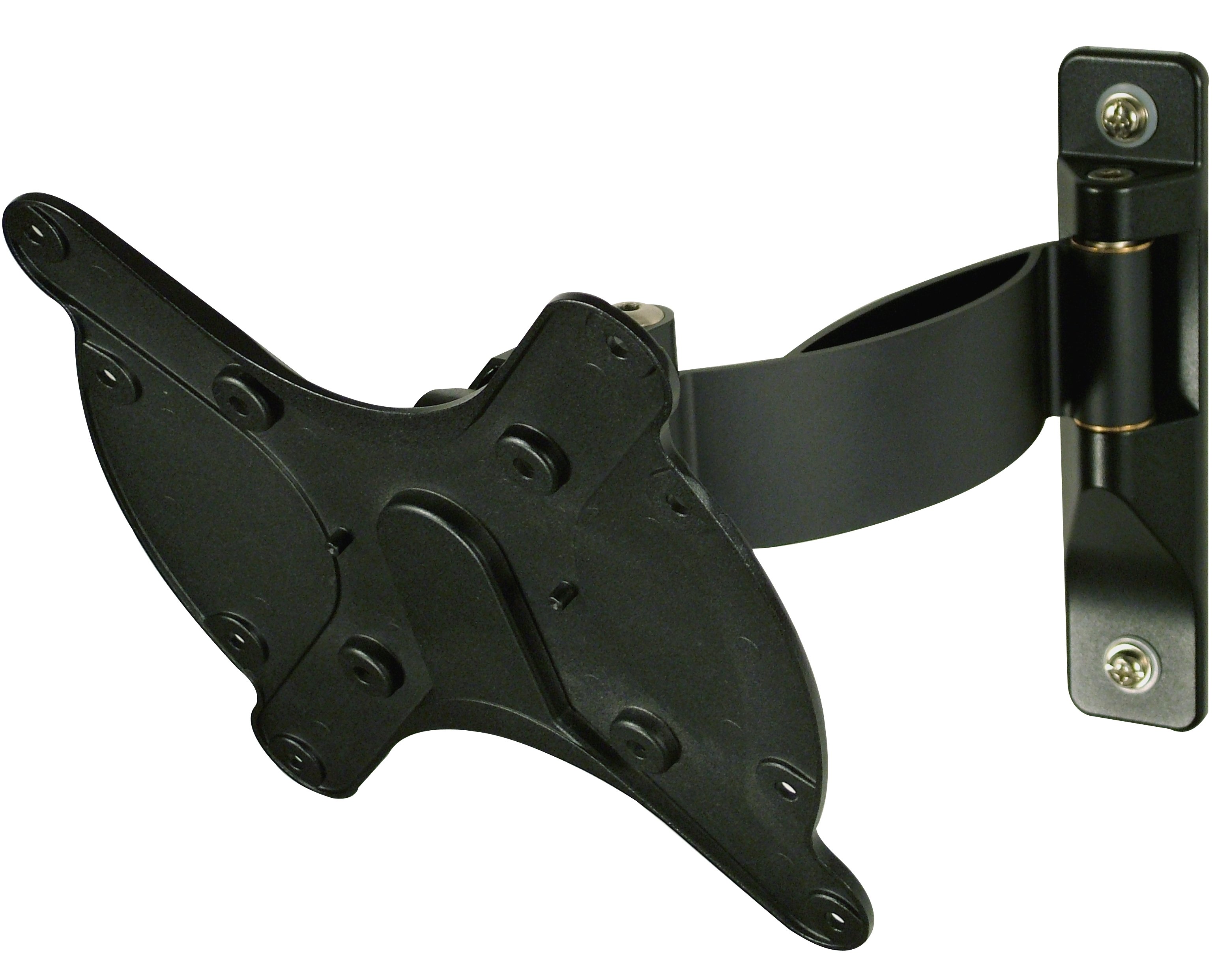

22 to 37" Full Motion TV Wall Mount MW-3A2B is a completely full-motion mount, with a weight capacity of 80lbs (36.4kgs), featuring 5 – 20-degree tilt, 115-degree swivel & 11-inch full extension. This pivot TV wall mount can achieve optimal viewing positions with it's 2- pivot-points design. This aluminum TV mount boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The Cotytech wall mount has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. If you need more information about how to select TV wall mounts, please click here.
