|Fits most:||22" to 37" flat panels|
|Weight Capacity:||Supports up to 23kg(50.6lbs)|
|Tilt:||5° / - 20°|
|Mounting profile:||3.4" (86.9mm) Depth From Wall|
|Maximum extension:||11.1" (283mm)|
|Mounts on Studs:||Single-stud|
|Mounting Pattern:||VESA compliant: 100x100 to 200x200 (without adaptor)|
VESA compliant: 100x100 to 400x400 (if order with adaptor)

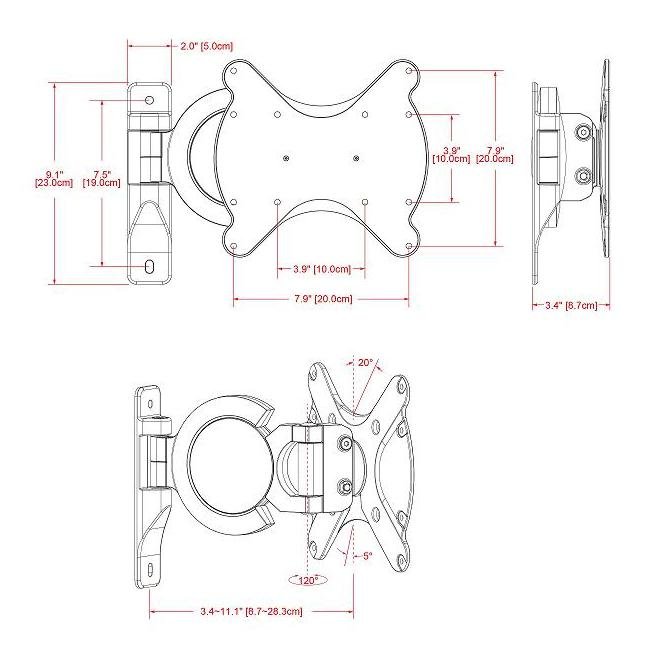

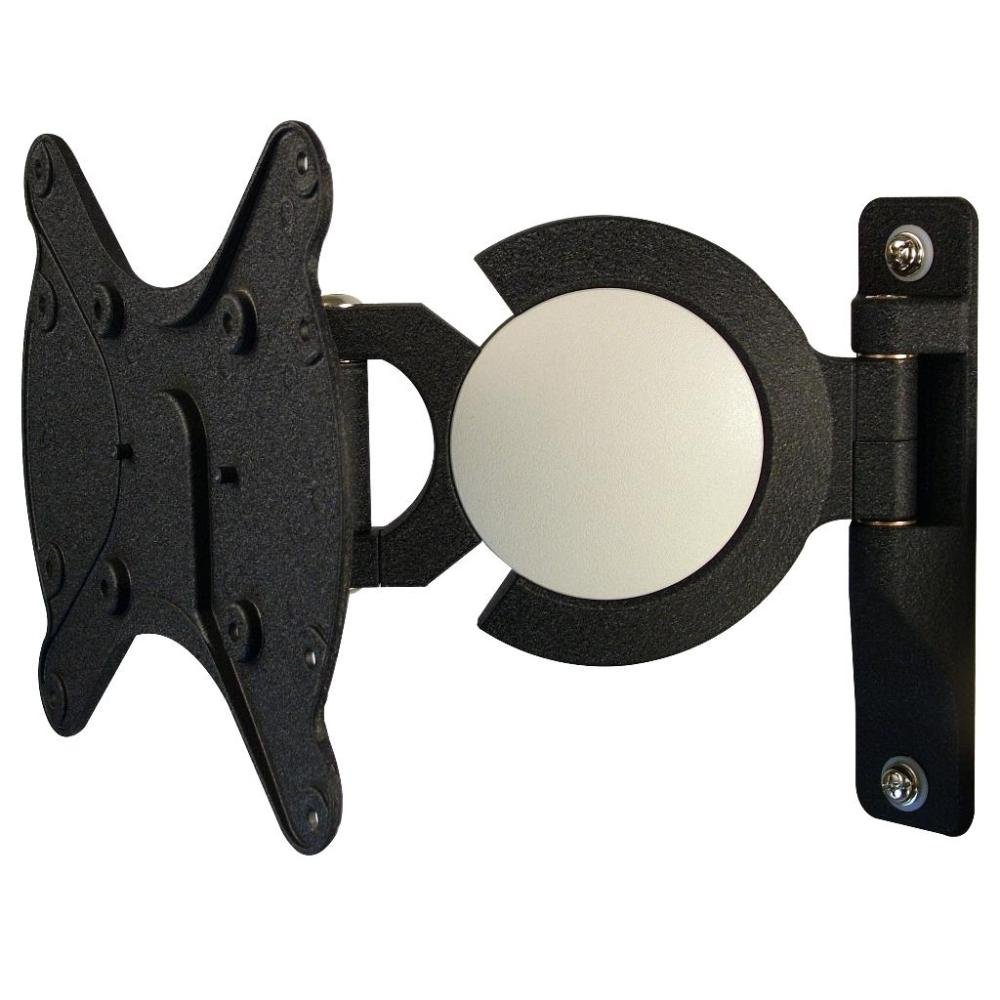

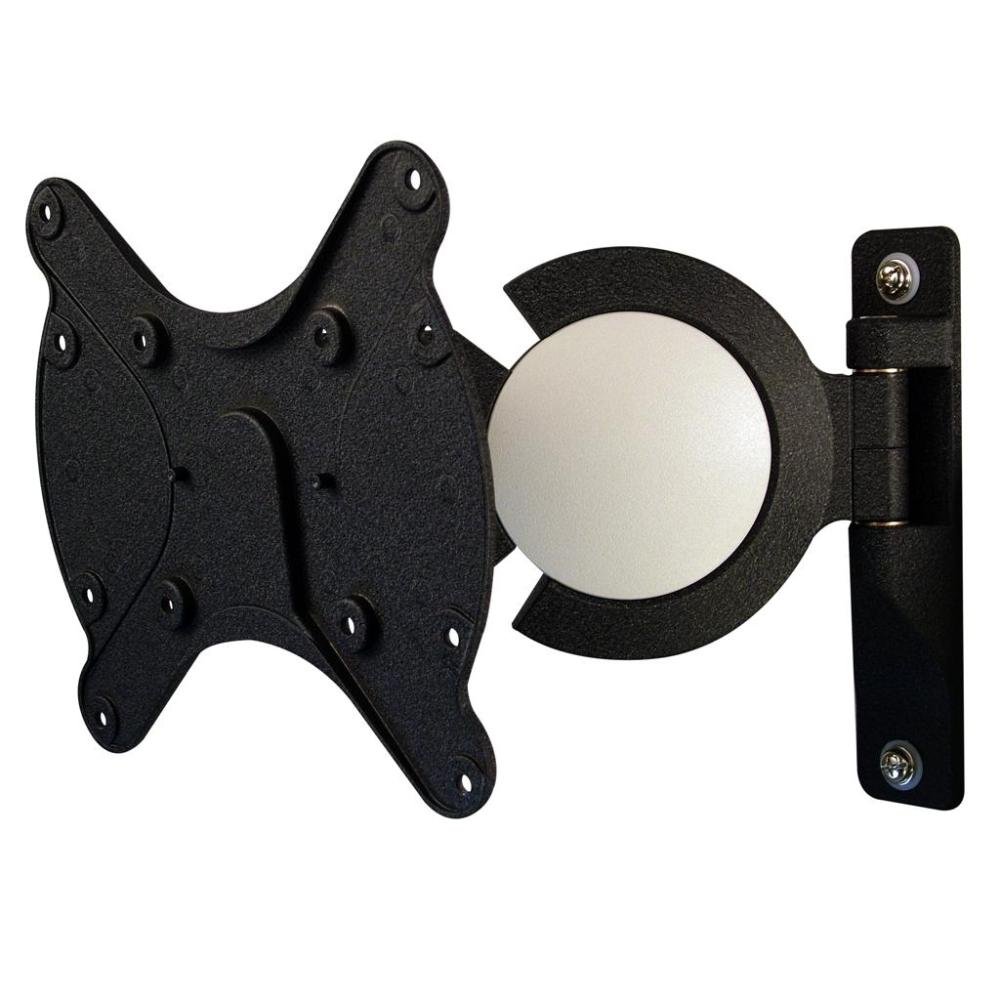

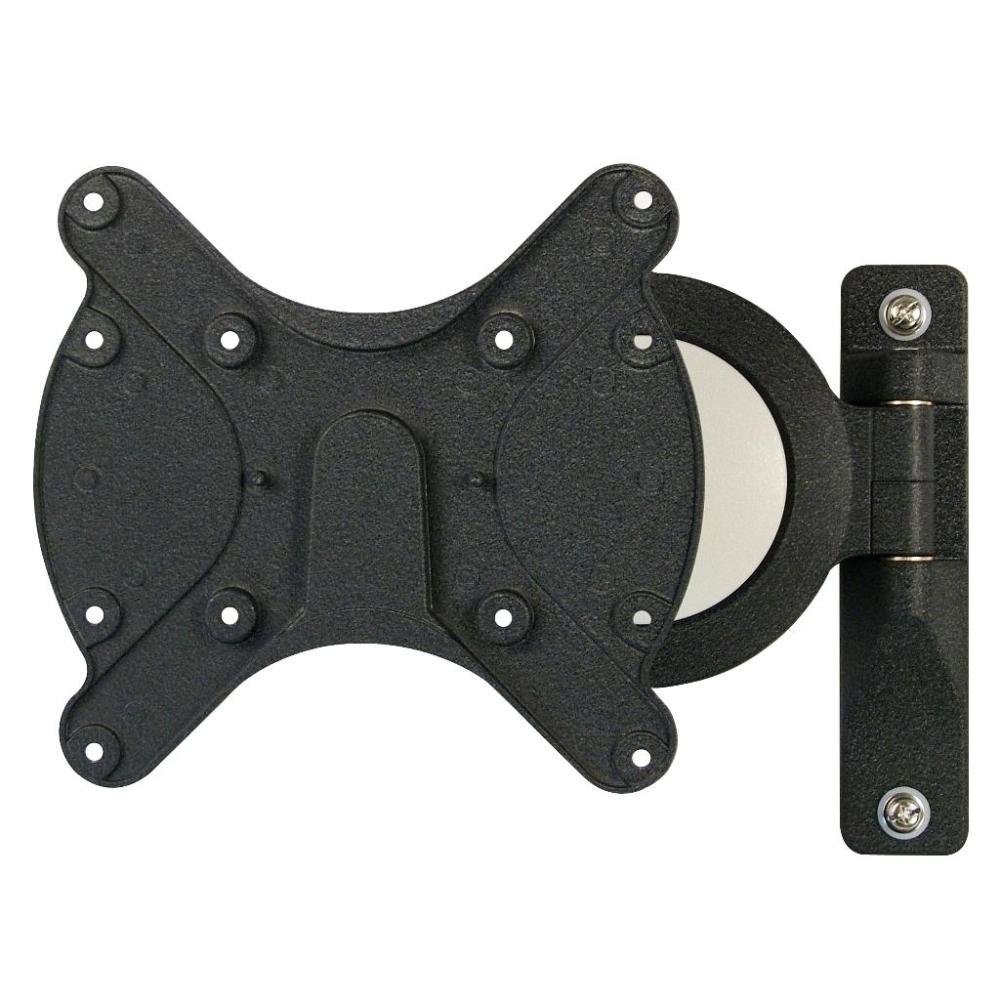

State of the art 22 to 37" Full Motion TV Wall Mount MW-3A1B is a completely full-motion mount, with a weight capacity of 50.6lbs (23kgs), featuring 5 - 20-degree tilt, 120-degree swivel & 11.1-inch full extension. This flat-screen TV wall mount renders maneuverability, flexibility and a chic look that is sure to flatter your LCD or plasma TV. The TV bracket boasts integrated strength through the latest engineering technology and is tested for durability in our offshore manufacturing plant. The Cotytech flat TV mount has been built with the end-user in mind. It features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of wall mounts. If you need more information about how to select TV wall mounts, please click here.
You may usually find mounting patterns dimensions on the technical drawing page of your owner's manual. Otherwise, you can measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to convert to millimeters: 100mm = 3.94 inches; 200 mm = 7.87 inches; 300mm = 11.8 inches; 400 mm = 15.7 inches.
Mounting Holes Adaptor
The 4-piece Mounting Holes Adaptor Kit is only needed when the back holes of your TV measure more than 200x200. The adaptor set will allow you to create mounting patterns of the following: 400x400, 400x300, 400x200, 300x300. If you have any questions, please feel free to contact us.
