Mounting Pattern
You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to measure in millimeters.

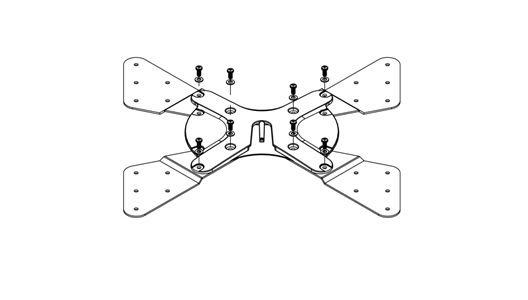

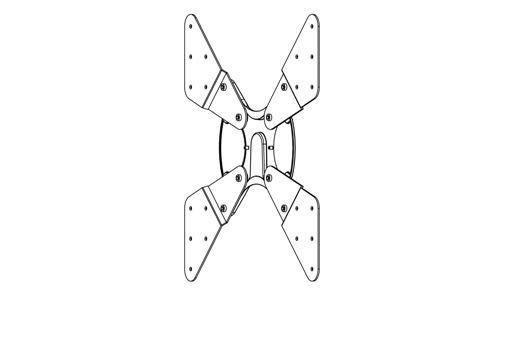

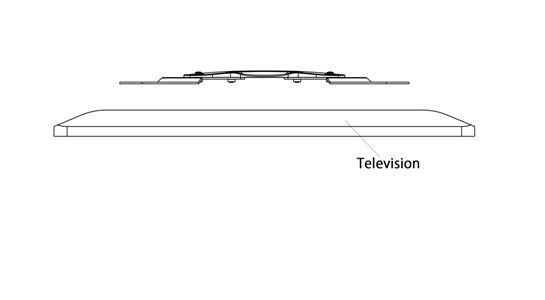

Mounting Holes Adaptor

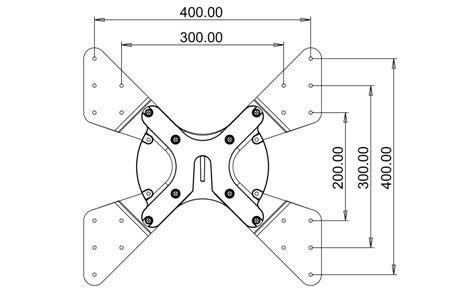

The 4-piece Mounting Holes Adaptor Kit is only needed when the back holes of your TV measure more than 200x200. The adaptor set will allow you to create mounting patterns of the following: 400x400, 400x300, 400x200, 300x300.




If you have any questions, please feel free to contact us.
Downloads
Installation Manual
