Product Description
The new
Cotytech Tilt and Swivel 22 - 40 inch TV Wall Mount is a tilt & swivel mount, featuring 5 - 20 degree tilt, 45 degree swivel & 3.4 inch ultra-low profile. This flat screen TV wall mount is a
full motion type that can achieve optimal viewing angles by tilting and turning. This adjustable pivoting
wall mount, with weight capacity of 50.6lbs (23kgs), features integrated durability through state of the art engineering technology, and is tested for strength in our oversea manufacturing plant. The Cotytech wall mount has been built with the end user in mind, and features easy installation while offering intuitive, practical & functional design from one of the leading manufacturers of
wall mounts. All Cotytech brand mounts offer five year
warranty. If you need more information about how to select TV wall mounts please click
here.
Click here for BLACK COLOR
Features
Work with plasma, LCD and LED TVs.
Allows TV to be tilted up and down, turned left and right for the best and precise viewing
Close to wall fit
Quick-mounting design for easy installation
Can adjust display to optimum viewing without tools
Aluminum die-casting wall base to accomplish maximum support in a lightweight mount
Specifications
 |
Fits most: | 22" to 40" flat panels |
 | Weight Capacity: |
Supports up to 23kgs(50.6lbs) |
 |
Tilt: |
5° / - 20° |
 |
Swivel: |
Max 45° |
 |
Mounting profile: |
3.4" (86.9mm) Depth From Wall |
 |
Mounts on Studs: |
single-stud |
 |
Mounting Pattern: |
VESA compliant: 100x100 to 200x200 (without adaptor) VESA compliant: 100x100 to 400x400 (if order with adaptor) |

Service and Support
Mounting Pattern
You may usually find mounting patterns dimensions on the technical drawing page of your owner’s manual. Otherwise you can simply measure from the center of one hole to the center of the next (both vertical and horizontal). Please remember to convert to millimeters: 100mm = 3.94 inches; 200 mm = 7.87 inches; 300mm = 11.8 inches; 400 mm = 15.7 inches.

Mounting Holes Adaptor
The 4-piece Mounting Holes Adaptor Kit is only needed when the back holes of your TV measure more than 200x200. The adaptor set will allow you to create mounting patterns of the following: 400x400, 400x300, 400x200, 300x300.
If you have any questions, please feel free to contact us.
Downloads

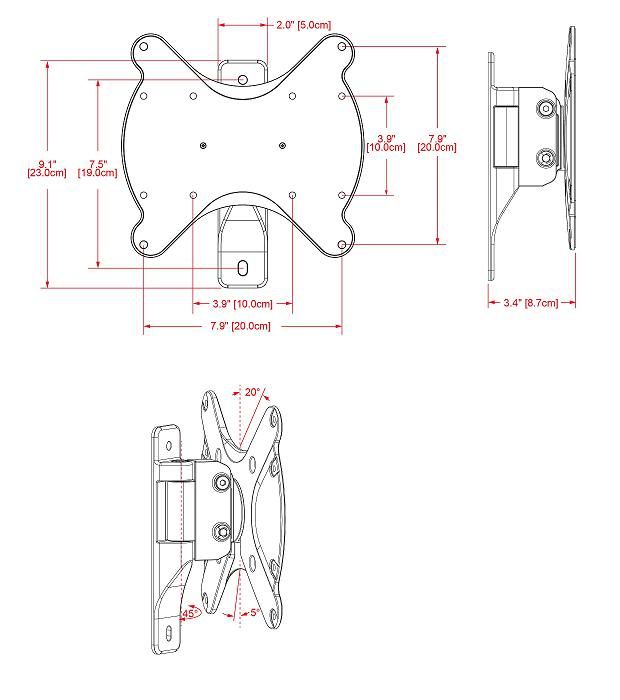

Dimensions
Installation Manual
These downloads require Adobe Reader. To get Adobe Reader click here.
